3D printer Etched Foil Flexible Polyimide Film Heaters
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, resistance | |
| Power Source | Electric | Place of Origin | Jiangsu, China | |
| Brand Name | Topright, Topright | Model Number | TRKP2016083002 | |
| Dimension(L*W*H) | 4cm*4cm--2000cm*2000cm | Weight | Final Dimension | |
| Voltage | 12-380V(Customized), 12-400V, 12-400v | Power(W) | 10w-1000w | |
| Certification | CE ROHS | Warranty | 1 Year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Polymide (Kapton) Heater Description:
Kapton insulated heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Specification of Polyimide (kapton) Heaters:
NO. | Description | Parameter |
1. | Certification | CE and Rohs |
2. | Voltage range | 1.5v~400v |
3. | Power density range | 0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
4. | Using temperature range | -60~200°C(-140~392°F) |
5. | Width range | 10mm~500mm(0.39"~19.68") |
6. | Length range | 10mm~1800mm(0.39"~70.86") |
7. | Thickness range | Standard:0.126~0.266mm(0.005"~0.01") |
8. | Plug | Chinese,British, American, European and so on |
9. | Quality guarantee | 1 year |
10. | Life | more than 4 years(normal useful) |
11. | MOQ | 1 piece |
OEM and ODM is welcome,can print your logo | ||

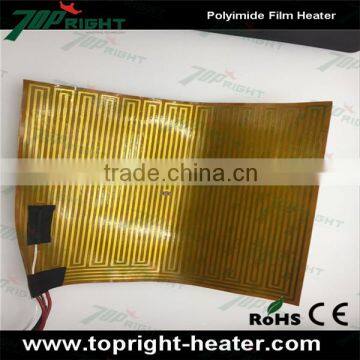

Kapton (polyimide) heaters Photos:
Polyimide heaters with thermistor:
Specification of Polyimide (kapton) Heaters:
- Working voltage: 12 - 400V
- Working temperature: -200°C - 200°C
- Watt density: 1.1-6.5w/cm2
- Mounting: PSA or mechanical
- Max. size: 500x600mm
- Thickness: ≤0.25mm
- Exit: teflon, kapton or silicone insulated leads
- Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
- Protect aircraft electronic and mechanical devices in cold weather / area.
When place an order,please kindly confirm the following parameters.Thanks.
| (1). Type of Heater |
| (2). Wattage and Voltage |
| (3). Size of the heater |
(4). Drawing or Sample required for special configuration |
Our Exhibtion in USA market:
Topright CE Certification
Value appreciates profession,professional designed for kapton heaters:
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
