Full-Enclosed tubular Hot Runner coil heater
- shanghai
- T/T Credit Card PayPal
You May Like
-
Stainless steel wires Enclosed Hot Runner Coil Heater 230v 250w
-
230v250w fully enclosed high quality Coil Heater Hot Runner Heater
-
3/4'x3' enclosed coil heater Spring Heater Hot Runner Coil Heater
-
230v 400w Coil spring heater with thermocouple heating element hot runner coil heater
-
230v 400w spring coil heater hot runner heater with stailess steel metal braided cable
-
ID18.6x35mm 230v400w spring coil heater for hot runner
Product Details
| Condition | New | Type | Other, Air Heater, spring & straight | |
| Power Source | Electric | Place of Origin | Jiangsu, China | |
| Brand Name | Topright | Model Number | TR-CH2016072204 | |
| Dimension(L*W*H) | Custom Size | Weight | Final Dimension | |
| Voltage | 220-380V | Power(W) | 200-3000W | |
| Certification | CE,SGS | Warranty | one year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Coil heater from Topright
How does Topright factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Hot runner coil heater from Topright
Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.
Specification:
Name of product | Hot runner heater |
Inner Diameter of coiled heater | 8-38mm( + 0.05mm) |
Coil style Length | 40-200mm (+ 0.5mm) |
staright style length | 200-3000mm (+ 0.5mm) |
Cross-section | Round Dia.3mm;3.3mm;3.5mm Square: 3x3mm;3.3x3.3mm,4x4mm, Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm |
Tube Material | SUS304/SUS/310S/Incoloy800 |
Tube color | sliver or annealed black |
Insulation | High pure Mgo |
Inner heating element | NiCr8020 |
Voltage | 12v;24v;110v;220v;240v;380v |
Wattage | 200-3000w( 6.5W/CM2 ) + 5% tolerance |
Max. Temperature: | 650°C |
Built-in thermocouple | with or without J /K TC(Available) |
Delivery Time | 3-5 days(10-500pcs) 7 days(more than 500pcs) |

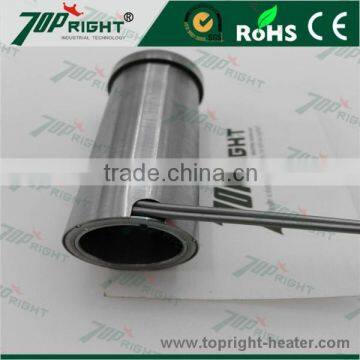

Hot runner heater Coil Heater Photos:
Order Guide:
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. Topright sales send the Proforma Invoice with Topright seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5.Initial Production Stage-Inform the clients that we have got the payment,And will make the products according to your request,. After getting the sample or drawing approval, we inform that we will arrange the production & inform the estimated time. |
6. If possible,middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and Topright Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term which we discussed. Inform the tracking number and check the status for clients. |
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.
3.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Western nion,Money gram and Aliexpress is available.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Welcome to contact us for more details ,most competitive price for you!
Business Card:
..............Topright Industrial run with you together!
