Home > Products > Electromagnetic relay > High Quality Control Advanced Electromagnetic Leakage Protector With 4p

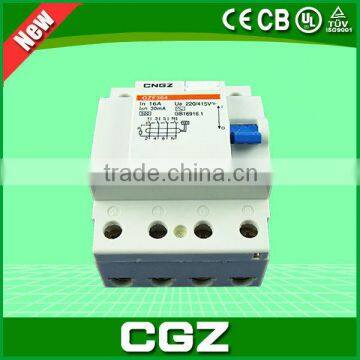

High Quality Control Advanced Electromagnetic Leakage Protector With 4p
- guangzhou shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot Selling High Quality Electromagnetic Leakage Protector With 4p
-
2015 New Product Power off Circuit Breaker
-
CGZ Factory OEM High-quality GZF364(DPNL) Electrical Leakage Circuit Breaker GZF362 63A
-
CGZ Factory OEM High-quality GZF364(DPNL) Electrical Leakage Circuit Breaker GZF362 32A40A63A
-
CGZ Factory OEM High-quality GZF364(DPNL) Electrical Leakage Circuit Breaker GZF362 10A20A32A40A63A
-
Electrical Leakage Circuit Breaker
Product Details
Place of Origin | Guangdong, China | Brand Name | CNGZ | |
Model Number | GZF362 | Type | Earth Leakage | |
Poles Number | 4 |
Product Description
Application
1)GZF362series Residual Current Operating Breakers is suitable for distribution systems of N line direct grounding AC 50Hz/60Hz, rated voltage 230V/400V, rated current 63A. And can be used for residual current protection.
2)The breaker could quickly switch off electrical power when people get an electric shock or leakage current exceeds stipulated value, protecting personal and electrical equipment safety.
3)It can protect circuit from overload and short circuit. And also can be used in circuit for unfrequently switching.
4) standard :CE CB ISO9001 IEC61009 GB16917.1
Technical Parameter
Mode | Electro-magnetic type,electronic type |
Type(wave form of the earth leakage sensed) | AC,A |
Connection terminal | Screw terminal |
Poles | 2,4P |
Rated voltage Ue | AC240/415 |
lnsulation voltage Ui | 500V |
Rated frequency | 50/60Hz |
Electrical life | 6000t |
Mechanical life | 20000t |
Fault current inditor | Yes |
Protection degree | lP20 |
Ambient temperature(with daily average≤35°c) | -25~+40°c |
Storage temperature | -25~+70°c |
Terminal connection type | Cable/U-type busbar/Pin-type busbar |
Terminal size top/bottom for cable | 25 mm² 18-3 AWG |
Terminal size top/bottom for busbor | 25 mm² 18-3 AWG |
Tightening torque | 2.5 N*m 22 l n-lbs. |
Mounting | On DIN rail EN60715(35mm)by means of fast clip device |
|
Special Tips
1)It is maily used for preventing electric fire and personal casual accident caused by personal electric shock or leakage of electrified wire net, this is a current operated,fast leakage protector of pure electromagnetic type,which can break off fault circuit rapidly in order to avoid occurrence of accident.
2) The item is applying to the circuit of AC 50/60 Hz,230V single phase,400V three phases or below it for industrial and mining enterprise , trade building ,commerce and family.
Product Photos
Company View
Our Services
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM & ODM are welcome.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
FAQ
Q1:what's the delivery time?
A1:Usually it will take about 15 days for production.
Q2:tell me the standard of package?
A2:Standard export carton packing with good quality carton box.
Q3:Can you accept to use our logo?
A3:If you have good quantity,it absolute no problem to do OEM.
Q4:We want to know monthly capacity.
A4:100000pcs/month.
Q5:what kind of certificate do you have?
A5:Our company already achieve ISO, and for products, we have CE & CB certificates.
