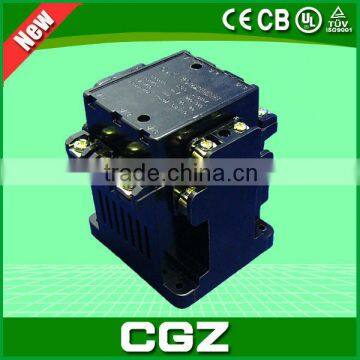

High voltage cable contactor a wear resistant contactor
- Guangzhou or Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
cngz brand 2015 hot sale 230v single phase contactor ac contactor single phase electrical contactor
-
cngz brand 2015 hot sale single phase electrical contactor 230v single phase contactor
-
cngz brand 2015 hot sale ac contactor single phase electrical contactor
-
CNGZ electrical contact type power magnetic contactor relays
-
High quality control advanced electromagnetic leakage protector with 4p
-
Hot selling high quality electromagnetic leakage protector with 4p
Product Details
| Place of Origin | Guangdong, China | Brand Name | CGZ | |
| Model Number | CJX2(LC1) | Electricity Type | AC | |
| Number of Pole | 3 | Phase | 3 | |
| Main Circuit Rating Voltage | Other, 220/230/380/400/415/500/660/690V | Main Circuit Rating Current | Other, 9/12/18/25/32/40/50/65/80/95A |
Product Description
High voltage cable contactor a wear resistant contactor
Specification
CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor.
AC Contactor Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.AC Contactor is produced according to IEC 60947-4, GB14048-4.
CJX2 series AC contactor, small size, light weight, long working life, can assemble different accessories, such as stacking auxialiry contact group, air delay contact, mechanical interlocks, to form time delay contactor, mechanical interlock contactor, star-delta starter, also inset thermal relay to form magnetic starter.
Technical Data
Type | Rated voltage(V) | Conventional current(A) | Rated current(A) | Control power(kw) | No .of contacts | Installation Method | ||||
220V | 380V | 415V | 440V | 660V | ||||||
LC1-0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+1NO | 1with two screws rail |
LC1-0901 | 660 | 3P+1NC | ||||||||
LC1-1210 | 660 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+1NO | |
LC1-1201 | 660 | 3P+1NC | ||||||||
LC1-1810 | 660 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+1NO | |
LC1-1801 | 660 | 3P+1NC | ||||||||
LC1-2510 | 660 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+1NO | |
LC1-2501 | 660 | 3P+1NC | ||||||||
LC1-3210 | 660 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+1NO | |
LC1-3201 | 660 | 3P+1NC | ||||||||
LC1-4011 | 660 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | 1with three screws 0r 35mm din rail |
LC1-5011 | 660 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | ||
LC1-6511 | 660 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | ||
LC1-8011 | 660 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | ||
LC1-9511 | 660 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | ||
Dimension & Mounting Size
Type | A | B | C | D | E | a | b | Ø |
LC1-D09~12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
LC1-D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
LC1-D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
LC1-D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
LC1-D40~65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
LC1-D80~95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
Feature
Product Photos
Company View
Our Certifications
Our Exhibitions
Our Services
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM & ODM are welcome.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
FAQ
Q1:what's the delivery time?
A1:Usually it will take about 15 days for production.
Q2:tell me the standard of package?
A2:Standard export carton packing with good quality carton box.
Q3:Can you accept to use our logo?
A3:If you have good quantity,it absolute no problem to do OEM.
Q4:We want to know monthly capacity.
A4:100000pcs/month.
Q5:what kind of certificate do you have?
A5:Our company already achieve ISO, and for products, we have CE & CB certificates.
