Waste Tire/rubber/plastic PYROLYSIS PLANT With CE/ISO 9001-14001

Specifications

the Newable technology of PYROLYSIS PLANT about RECYCLED tire/rubber/plastic .

   we are the professional and direct manufacture for waste PYROLYSIS PLANT and oil further purify distillation plant with over 8years experience .we have our professional team in researching and installation . and supplied the machinery in USA,Europe,Albania,Canada,South Korea,Dubai Brizal,Iran,Lebanon,India,Pakistan ,Malaysia,Philippines ,Jordan etc under CE and ISO certificate .

We will supply the prefessional enigneer to overseas for guiding you to.installed the PYROLYSIS PLANT in our local market .also be charge of to operate and maintain the machinery also .

  We also will desing the machinery for you according to your place of factory,local situation of temperature,enveronment ,labor cost etc.

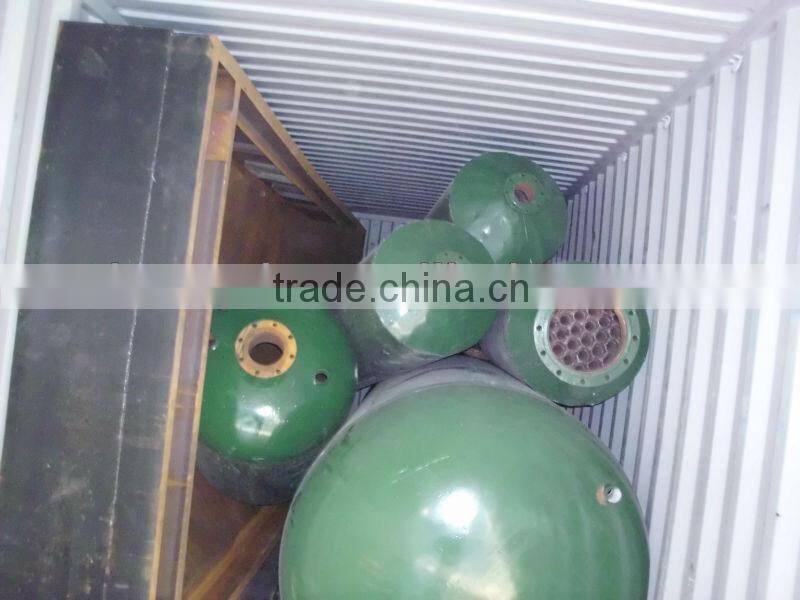

The bigger reactor will load into container directly . Model LJ-7,LJ-8 &LJ-9 will loaded into normal reactor ,totally needs 2*40"FR. Model of  LJ-10 need 40" Flat rack (40"FR);

the fragile will pack in pater box ,like temperature gauge,pressure gauge and transparent window ;

the pump will pack in wood case,like water pump,oil pump ,vaccum pump;

the plastic and sponges will pack by bags

etc .

1.the payment term:

By T/T 30% Advanced,ballance agaist Copy of origional B/L.

2.the Delivery date:

15-30days after the advanced payment arrival.

3.the Installation date:

15days if you worker can operation well.

4.warranty:

one year free for reactor ,spare parts we will supply one year running .

5.Life of reactor:

around 10 years if you can operate the machinery under guideline we supplied

6.Certificate:

 CE for european market, ISO14001 & ISO9001

1.Brief introduction

High efficiency, energy saving, big handling capacity, convenient installation, environment protection … The PYROLYSIS PLANT can make use of waste tyres, plastics, rubbers to refine crude oil, carbon black and steel

Raw materials can be used

Waste/Used rubber tire

Waste industrial mixed plastics,

Waste oil: E.g.: waste diesel oil, engine oil, and other residue oil

Waste cable skin (should first dechlorination treatment)

Waste crude oil and so on.

2. working process

First, the raw materials are put into the reactor of PYROLYSIS PLANT, then seal the feed inlet then the bottom of the reactor will slowly heat the wastes by coal or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 300-400°C; oil steam will flow through light and heavy components separating device; light component will enter the condenser and meanwhile the residues will be discharged automatically in succession. But the liquefied part will be condensed to rubber oil, and the part that cannot be liquefied will be input into heating supply system for burning by way of combustion gas purification system.

3.Characteristics

1.Environmental protection - The production of the plants is carried out in an environment of no smoking and no smell, the production of the device is environment protective. To refine oil from waste rubber and waste plastics, we turn the rubbish of life into useful oil and carbon black, and help to deal with living organisms, thereby protects the living environment.

2. Safety -  the plant has the auto alarm system, when there are some problems, the alarming system will let us know in time, and then we can avoid the accidents.

3. Various handling capacity - we can make the plant to handle different quantity of raw materials according to customers’ requirement, ranging from 7tons to 20tons per 24 hours continuously. We are now researching into the new technology; the new device may be able to deal with 50 tons of raw materials per 24 hours.

4.Energy and manpower saving - the plant can use coal as well as electricity as the fuel, when the temperature reaches to 150°C, a large amount of gases will be generated, these gases can generate a large quantity of heating energy after being burned fully in the special gas boiler, thus can save energy. There will only need two or three persons to control the whole system, it is very convenient.

4.Treatment of the residues

There are normally 3 kind of residues-exhausted gas, water liquid, waste solid,

1.exhaust gas - By the means of full combustion in water seal and gas burner, the pollution of exhaust gas shall be eliminated and a large amount of fuel shall be saved. Also dust collector will be used to discharge the smoke and dust, and the discharge of the smoke and dust meets the related standards in 2001.

2. waste liquid - Faintly acid waste water will be produced in the process of treatment of oil products, after neutralization by adding faintly alkaline liquor, the neutral waste water shall be harmless to three- grade filtration and can be discharged into special evaporation processor to vapor.

3. Waste solid -

the solid left is carbon black, the carbon black can be re-processed to make carbon black fine power wih mesh 1500-2000,or press it to be briquite or pellet to bured instead of coal ,wood to burn .picture show below:

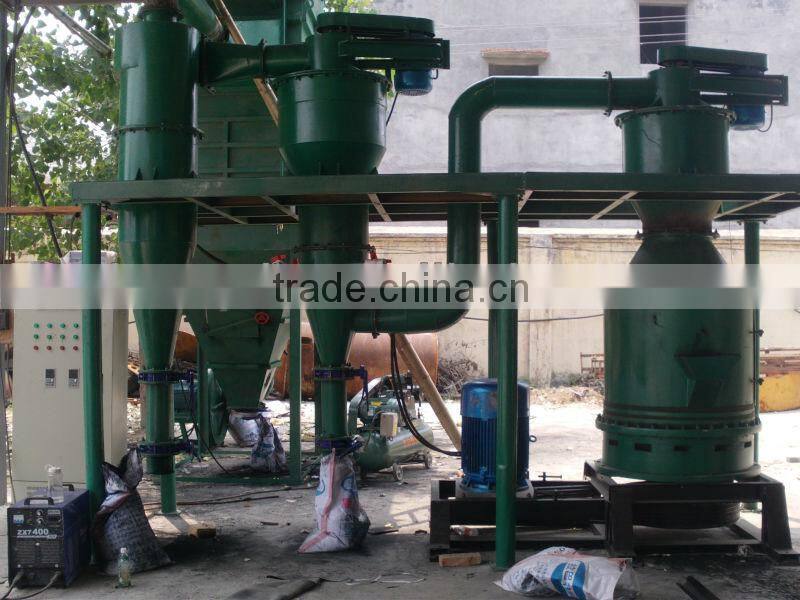

the carbon black poder granding line :
