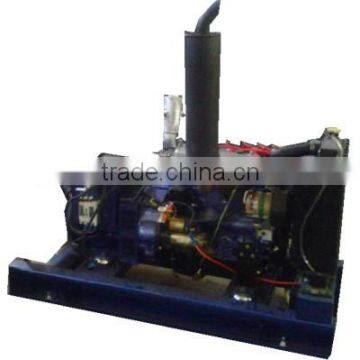

natural gas /biogas generator set, 12KW

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Genset controller with LCD display
2. ATS( automatic transfer switch) to achieve the automatic transfer from the generated e

	Generating Model	12GFNG
	Generating Model	12GFNG
standby power	KW	13.2
rated power	KW	12
frequency	Hz	50
rated voltage	V	400/230
rated ampere	A	21.6
power factor	COSΦ	0.8
phase	—	Three phase
speed governor	—	dedicated gas electronic governor EAPP
Speed Stability Bandwidth	%	≤±0.5%
Steady Governing Rate	%	≤2%
Model		W4100D1NG
rated power	KW	30
ignition mode		ECU, sequential ignitionEAPP
intake way		naturally aspirated
cylinder arrangement		4-cylinder inline
bore*stroke	(mm*mm)	100×115
Displacement	(L)	3.6
rated speed	(r/min)	1500
min. steady speed under no load (r/min)	(r/min)	1500
gas pressure	(kPa)	3-6kPa
gas pressure flucturation rate	(kPa)	≤0.2kPa
oil consumption	(g/kW·h )	≤2.04
water temp.	(°C)	≤90
oil temp.	(°C)	≤100
oil pres.	(kPa)	150-450
starting mode	—	DC, 12V
cooling method	—	close-loop water cooling
lubricating type	L	pres.lubrication & splash lubrication
model		164D
phase	—	Three phase
connecting method	—	SAE3#,11.5
way of excitation		self-excitation
insulation grade	—	H/IP23
display	—	LCD
controller type		GU620A
fuel	—	gas
fuel consumption	m³/h	9
dimension	mmmmmm	15006501300
net weight	kg	650
insulation grade	—	H/IP23
package dimension	mmmmmm	16007501500
