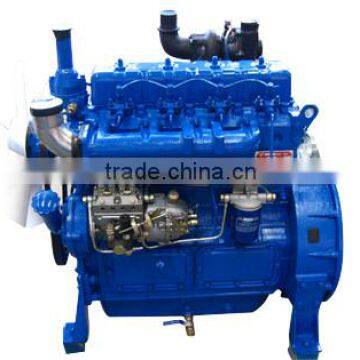

diesel engine, 45KW, K4105ZD for generator set
- Qingdao
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Model Number | K4105ZD | |
| Engine Type | Diesel |
Product Description
Specifications
This engine is four-cylinder,turbocharged engine, direct injection chamber, rated power is 45KW.
K4105 SERIES DIESEL ENGINE | |
Model No. | K4105ZD |
type | four stroke, water cooling, vertical, |
cylinder no-bore x stroke (mm) | 4-105x115 |
piston displacement | 3.98 |
compression ratio | 17:1 |
firing order | 1-3-4-2 |
intake method | turbocharged |
rated power(kw/rpm) | 45/1500 |
max idle load rotating(r/min) | ≤ 1575 |
min idle load rotating(r/min) | ≤600 |
lowest fuel consumption(g/kw.h) | ≤231 |
lowest oil consumption(g/kw.h) | ≤2.04 |
exhaust temperature | ≤600 |
crankshaft rotating direction | counter clockwise ( face flywheel side) |
cooling method | forced water cooling |
lubricating method | pressure and splash compound |
start method | electric start |
dry mass(kg) | 390 |
application | for generating use and stationary power |
