Indoor Stairs Glass Clips Stainless Steel Railing Glass Clamp in Balustrade

FOB Price

US$ 1 - 10 / Piece

100 Pieces(Min. Order)

Port SHANGHAI
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	SCHMIED
Model Number	S13system	Material	Other, Stainless Steel, AISI 304/AISI 316
Position	Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails, Other, Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails, Stairs/Railings/Handrails

Product Description

Specifications

1.we are factory
2.AISI 304/AISI 316
3.satin or polish
4.For Tube:Flat/33.7/42.4/48.3/38.1/50.8mm
5 For suit glass:6~12mm

GLASS CLAMP DESCRIPTION

1) Material: stainless steel AISI304, AISI316 /Zinc Alloy

2)Surface: satin/mirror/electroplating

3) Type: glass clamp D wide type/square type/round type

4) Please order gaskets to suit appropriate glass

5) Fix to posts with blind rivet nuts and cap screws or Fdrill

6) Clamps can support approx.50-80kgs per 2 clamps vertically positioned

7) Accessories available:rubber/screws/screw caps/safety pin/side plate

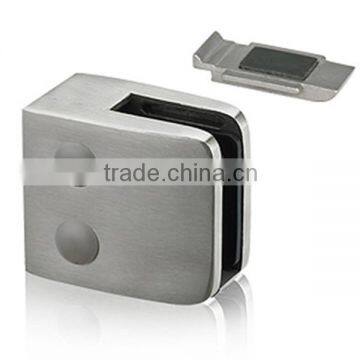

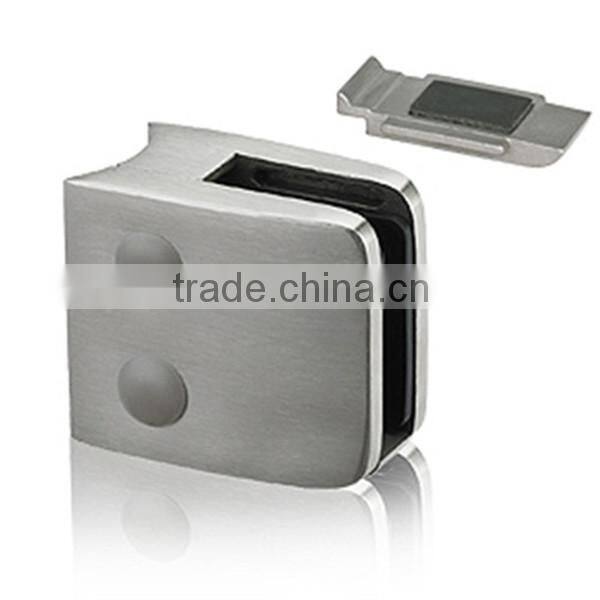

GLASS CLAMP- MIDDLE SQUARE TYPE

Item No.	S13system
Description	Glass Clamp 555525 with safety Pin suit for 8~12.76mm tube thickness glass 8~12.76mm S.S.304/316satin polish
Type	Middle square type glass clamps
Size	L:55mm "L"measurement for S11.4563.33 is from centre of radius
	H:55mm
	W:35mm
Suit Glass	8/8.76/10/10.76/12/12.76
Suit Post	flat/42.4~50.8mm
Material	AISI304/ AISI316
Finish	Satin/Mirror
Base Desigh	Flat/radiused
Feature	No Hole Drilling;Pressure fit or 10mm -12mm diameter hole required if using provided security pin for glass support
Position	Stair Railings;Indoor/out door Railing;handrails;Deck,seaside;Swimming Pool Fencing;Balcony;
Accessaries	Rubber Gaskets;ScrewS;Screw cover Caps,security pin

Why Choice Schmied?

1) With over 12 years of experience in manufacturing in the field with glass clamps, handrail accessory and balustrade as well as.

2) Sales good in Europe, Australia, Germany,Australia,Asia,africa and so on.

3) Payment:30%~50% TT advance,Other balance is paied off at sight of copy B/L

4) Provide Professional experience and support special design as per requests

5) High quality and competitive price

6) OEM&ODM more than 9 years

RELATED GLASS CLAMPS ARE AS FOLLOWS:
