China Mini Wheel Loader Articulated Small Loader With Front End Loader for Sale Cheap Price
- QINGDAO SEA PORT
- T/T
You May Like
Product Details
| Condition | New | Brand Name | RHINOCEROS | |
| Model Number | ZL10 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 4800x1600x2470mm | Rated Load | 1000kg | |
| Certification | CE ISO | Warranty | one year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
WHEEL LOADER ZL10

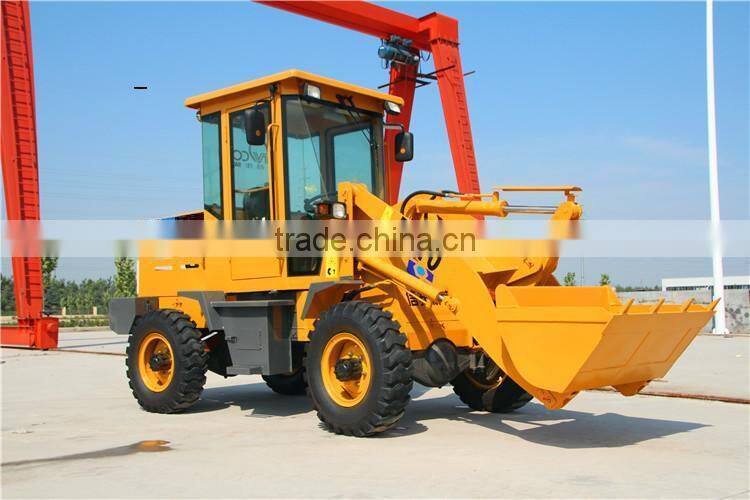

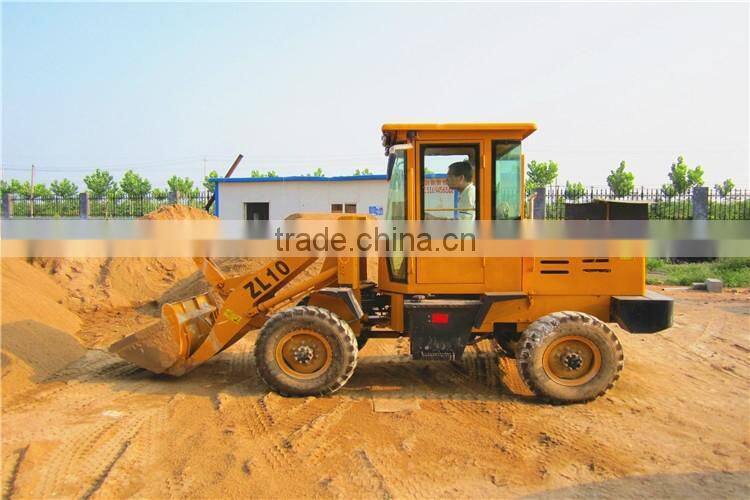

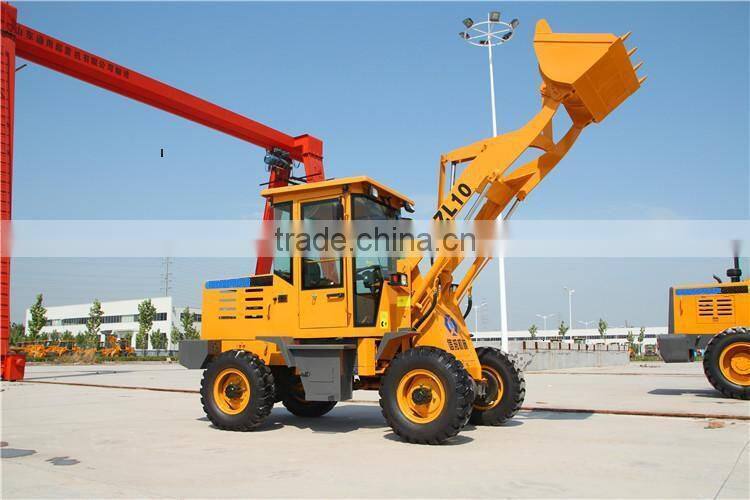

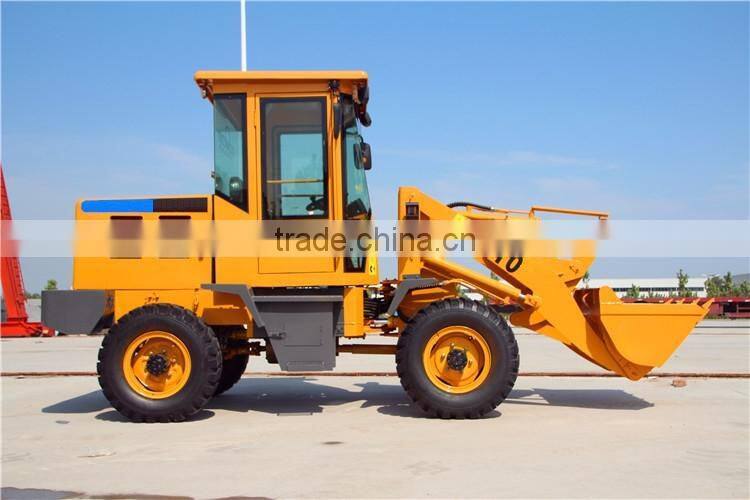

1.Machine photos:
2. Main specification:
Performance | Rated Load | 1000 kg |
| Total weight | 2700 kg |
| Rated Bucket Capacity | 0.4 m3 |
| Max.Gradeability | 30° |
| Dumping Height | 2700mm |
| Overall Dimemsions(LxWxH) | 4800x1600x2470 |
| Min.Turning Radius | 3900mm |
Engine | Model | changchai L28 diesel engine |
| Type | In-line,Water-colled,Four-stroke,Direct injection, single- cylinder |
| Rated Power | 20 kw |
| Rated Speed | 2200 rpm |
Transmission | Gear box | countershaft powershift gearbox |
| Torque converter | Stick Shift,without TC |
| Gear Shift | 2 forward,1 reverse |
| Max.Speed | 25 km/h |
Drive Axle | Model of Axle | Isuzu Axle |
| Wheel Base | 1950 mm |
Hydraulic System | System Working Pressure | 16 Mpa |
| Raising Time | ≤ 4.5 s |
| Total Cycle Time | ≤ 9.0 s |
| function of leveling automatically | Yes |
Brake system | Service Brake | Hydraulic,Expansion-shoe Brake on 4 wheels |
| Parking Brake | Drum-Type Shoe Brake |
Tyre | Type Specification | 8.25-16 |
| Front Tyre Pressure | 0.3 Mpa |
| Rear Tyre Pressure | 0.28 Mpa |

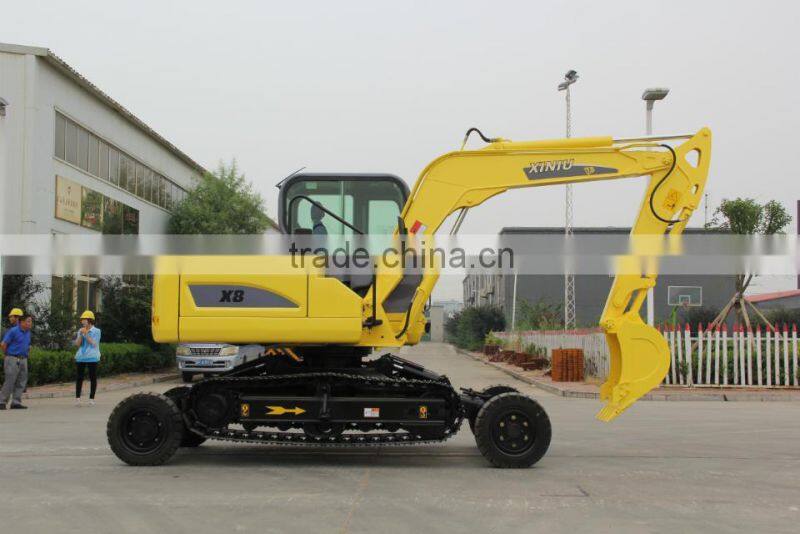

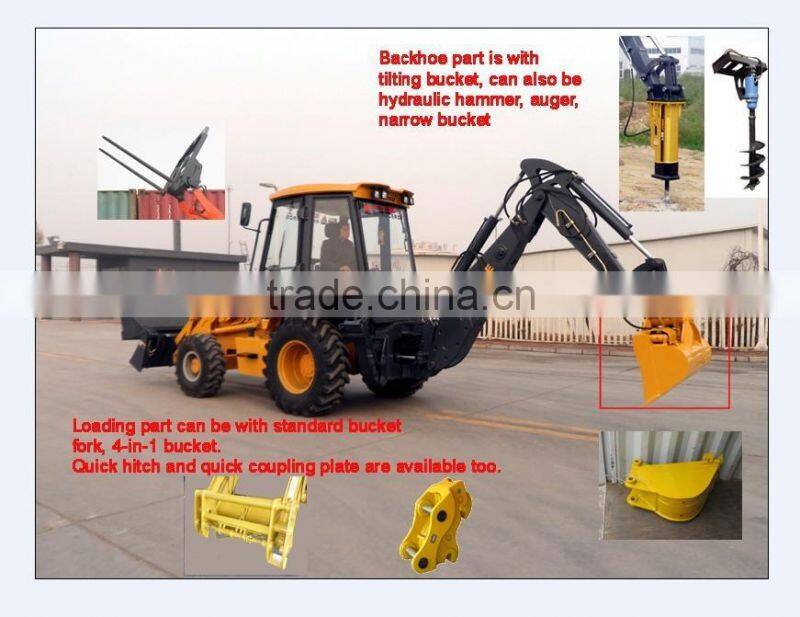

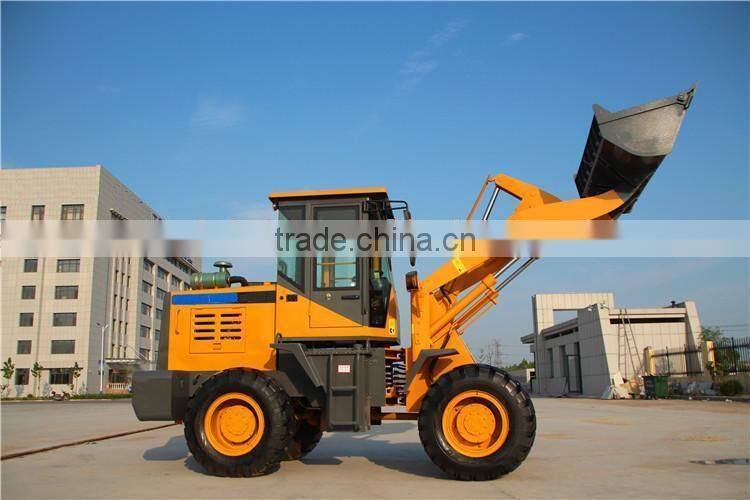

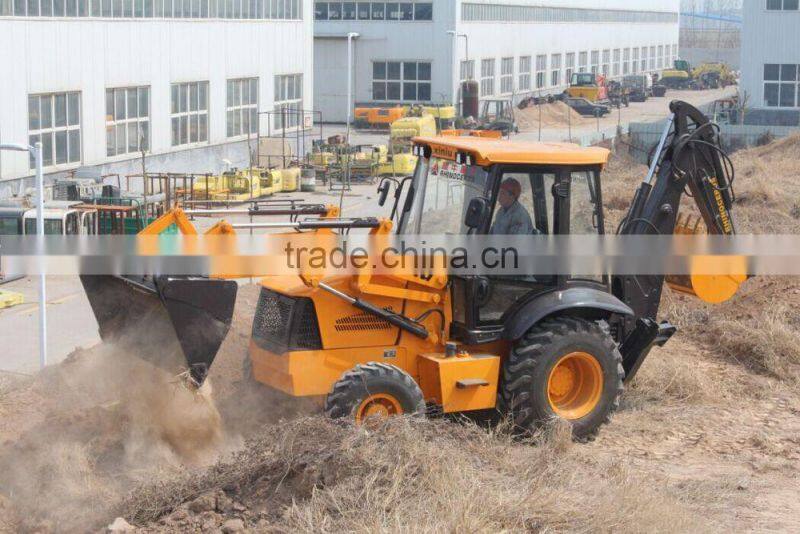

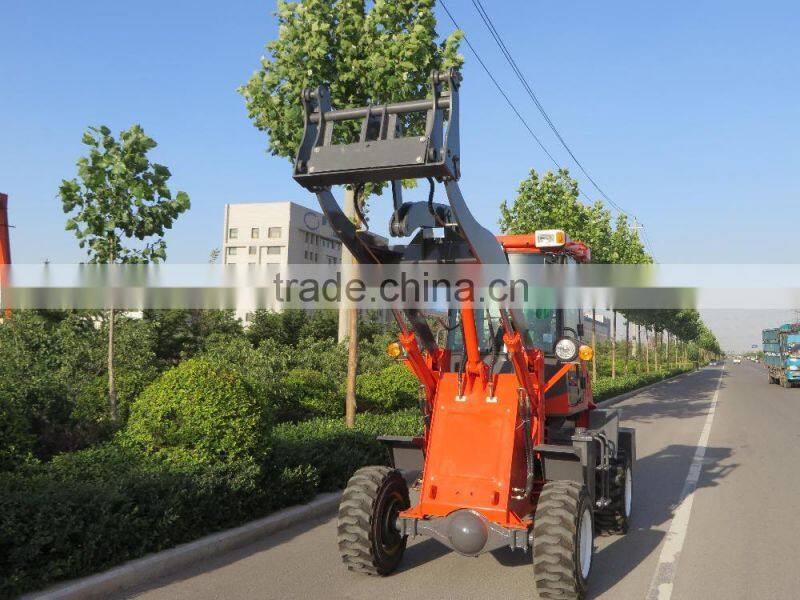

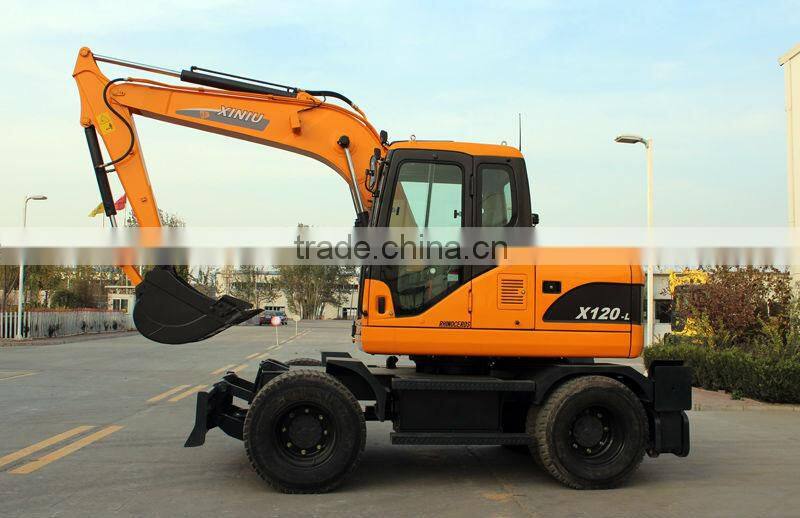

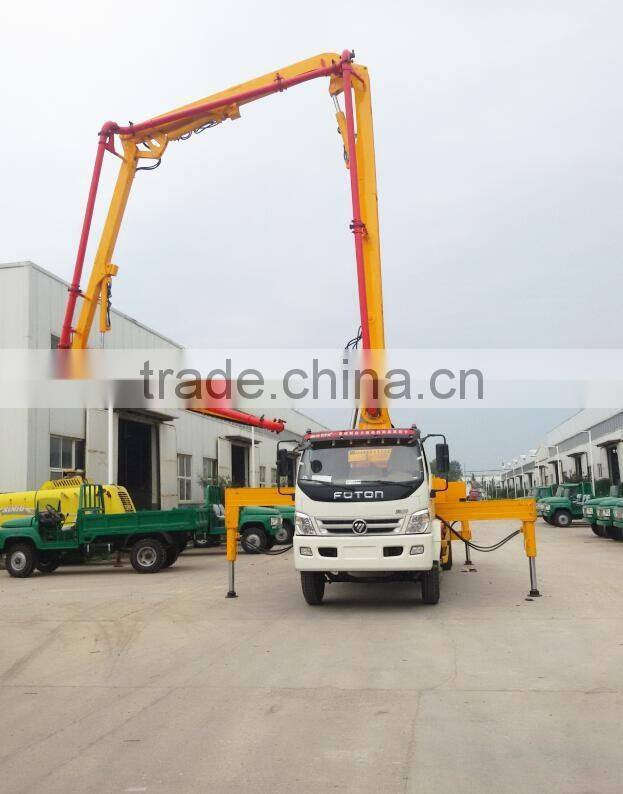

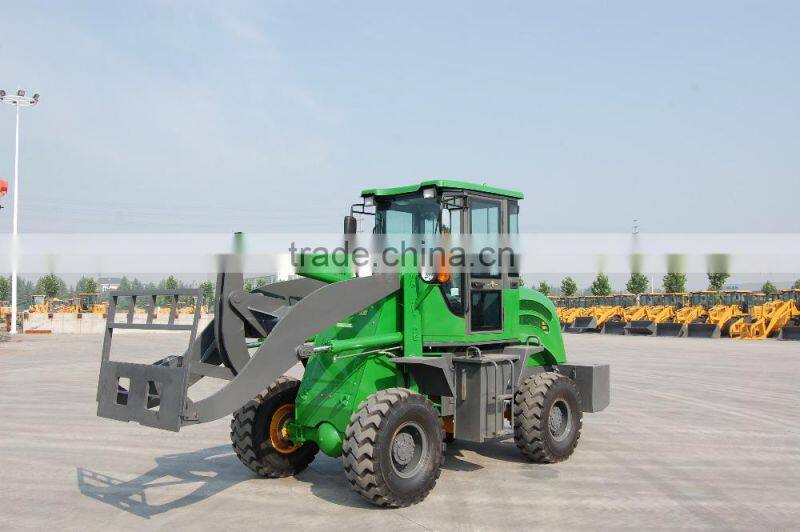

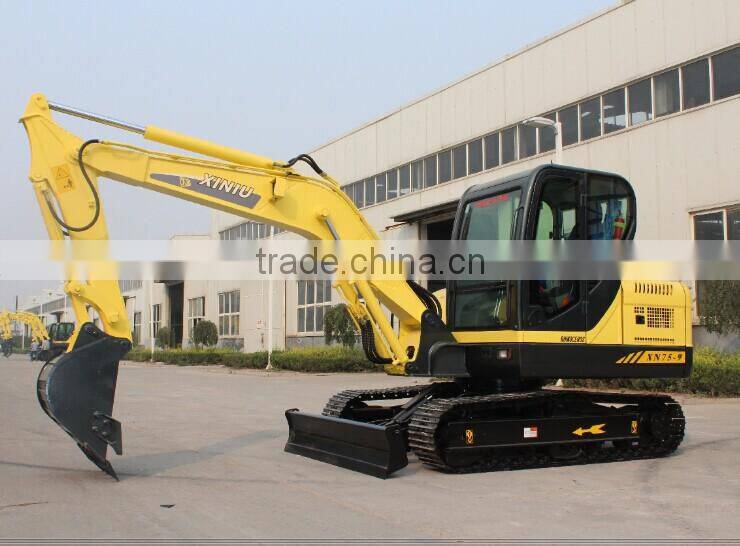

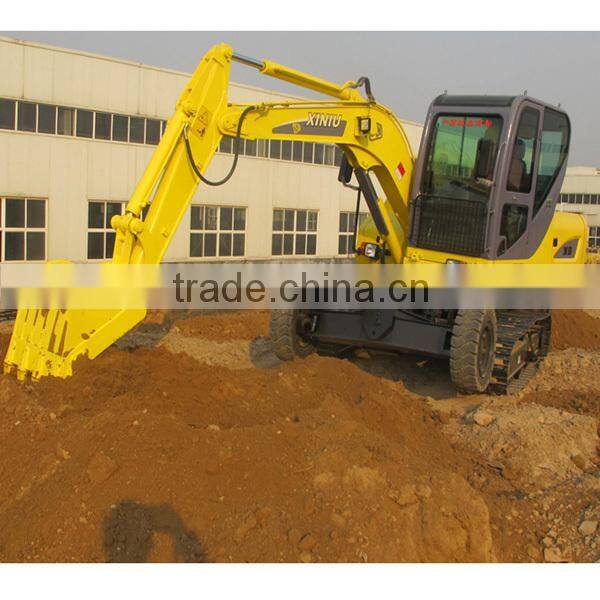

3. Our some the other machinery photos:
4. Production range:
We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader, Loader, Skid steer loader, Concrete pump, Concrete pump truck and the spare parts(Track shoe,Track chain,Idler,Sprocket,Track roller,Carrier roller,Pin,Bushings,Bucket,Narrow bucket,4-1 Bucket,Quick hitch,Quick coupling plate,Log grapple).
We produce many parts buy ourselves, so we can low the cost and make sure the high stable quality, and can give you the best price. Choose our company as your partner is your better choice now, we have the power and experience to make both of us good profit.
Best regards/Andy Lau
FAX:0086 635 5663777 / 5846000 TEL:0086 155 6355 7938 / 158 6438 7938
EMAILl: Lau# SKYPE: Laugroup QQ: 864876253 Whatsapp: 0086 155 6355 7938
Shandong Rhinoceros Engineering Machinery Co.,Ltd
Website:
Video link:/u/UMTM4MTA2MjIw/videos
5. Some our customers photos:
