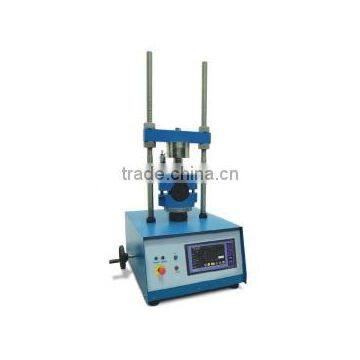

Marshall Stability Machine Digital

Key Features

• Automatically calculates flow and stability values
• Can perform test with displacement control
• Real time display of test graph
• CPU card with 32-bit ARM RISC architecture
• Permanent storage capacity up to 10,000 test results
• 4 analog channels, 2 channels are active for Marshall
• Programmable digital gain adjustment for load-cell, pressure transducers, strain-gauge based sensors, potentiometer sensors, voltage and current transmitters
• 1/256000 points resolution per channel
• 10 data per second sample rate for each channel
• Ethernet connecting for computer interface
• 800×480 resolution 65535 colour TFT-LCD industrial touch screen
• 4 main function keys
• Multi-language support
• 3 different unit system selection; kN, Ton and lb
• Real-time clock and date
• Test result visualisation and memory management interface
• Remote connection through ethernet and Bluetooth
• USB flash disc for importing test results and for firmware
• USB printer support for inkjet and laser printers (ask for compatible models)
• Camera support for real-time video recording during test (ask for compatible models)
• Free of charge PC software for the test control and advanced report generation

Supplied With

The Automatic Marshall Stability Test Machine is supplied complete with:

• Load Cell, 50 kN
• Linear Potentiometric Displacement Transducer with Bracket, 25 x 0.001 mm
• PC Software
• Connection Cable
• Hand wheel for manual control
• Breaking Head, 4”
