Home > Products > 04.Corrugated pipe production line > Pvc Double Wall/Layer Corrugated/Wave Pipe Machine/Production/Extrusion Line
Pvc Double Wall/Layer Corrugated/Wave Pipe Machine/Production/Extrusion Line
- Port of Qingdao
- T/T
You May Like
-
Super Grade Double Wall Corrugated Pipe Corrugated Pipe Making Machine
-
Single Wall Corrugated Pipe Diameter Of 50mm Making Machinery
-
Plastic Single Wall Corrugated Pipe Making Machine/Extrusion Machine/Production Line
-
12mm- 40mm Pe Automatic Single Wall Corrugation Pipe Production Line
-
Expandable Single-Wall Corrugated Plastic Pipe Make Machine
-
Plastic Single-Wall Corrugated Pipe Extrusion Line Production Machine
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PE | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Shandong, China | |
| Brand Name | EverGrand | Model Number | sjsz | |
| Voltage | 380V | Power(W) | 75kw | |
| Dimension(L*W*H) | 14m*2m*2m | Weight | 2000kg | |
| Certification | CE,ISO9001:2008, CE,ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Pvc Double Wall/Layer Corrugated/Wave Pipe Machine/Production/Extrusion Line

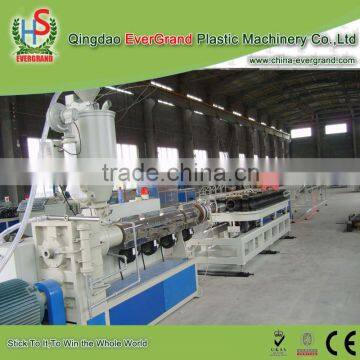

Plastic double wall corrugated pipe production line is made of extruder, die head, forming module, forming machine, cutter, stacker, etc.
The double-wall corrugated pipe is a new type cable jacket and water feeding and discharging pipe.
Technical Parameter:
Composition of the production line | OD50-110mm | OD120-200mm |
Main extruder | SJ65/30 and SJ65/30 | SJ90/30and SJ65/30 |
Main motor power(kw) | 37/37 | 55/37 |
Max output(kg/h) | 80 | 120/80 |

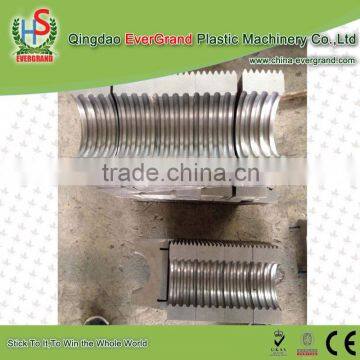

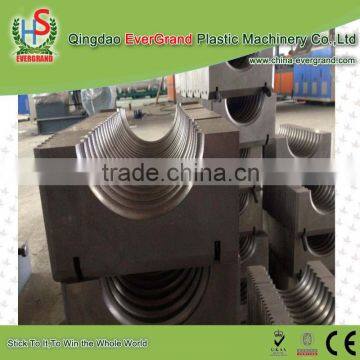

Machine die head/mould block | 50pairs/set | 50pairs/set |
Pipe forming machine | BW-II | BW-III |

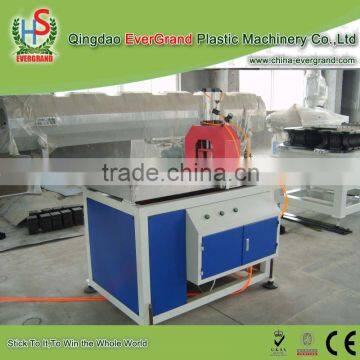

Pipe cutting machine | Saw blade cutter | Planetry cutter |
Pipe stacking shelf | Length 6000mm | Length 6000mm |
Hopper drier | STG-U160 | STG-U160 |
Automatic feeding machine | ZJ200 | ZJ200 |
Plastic mixing machine | SH50 | SH100 |
Plastic crushing machine | SWP360 | SWP360 |
Process Flow:
PP/PE/PVC/PA/PB/EVA raw materials→Automatic loader →Electrical control system→Single screw extruder→Die head and mould blocks →Forming machine→Cutting machine→Stacker
1.Full set of mould can safisfy different diameter pipe production.
2.Spraying and cooling in high level vacuum condition
3.Stainless steel and adopt pneumatic controlled.
Single wall corrugated Plastic granulating machine
pipe production line
PET bottles recycling PP/PE film recycling
and washing line and washing line
High quality obtain high praises!
Our service:
| Per-sales service | 1) sales person, project manager, accountant staff 2) professional responsible teem: would be very fastly and exactly to send you offers |
| Online/sale service | 1) super and solid quality |
| After-sale service | 1) repairing and maintenance if any problem occur in the warranty |
| Other cooperation service | 1) technology knowledge share |
