Led PCBA Circuit Board display

FOB Price

US$ 0.2 - 20 / Piece

10 Pieces(Min. Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	zxb PCBA
Model Number	Pcba Assembly	Base Material	FR-4
Copper Thickness	1oz-12oz	Board Thickness	0.2-3.0mm
Min. Hole Size	0.20mm	Min. Line Width	0.075mm/0.1mm(3mil/4mil)
Min. Line Spacing	0.075mm=3mil	Surface Finishing	HASL lead free

Product Description

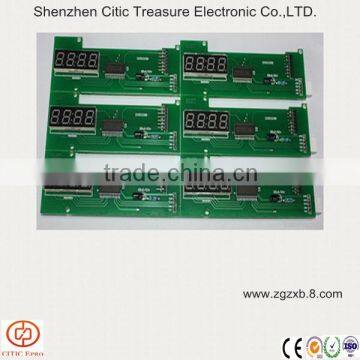

Led PCBA Circuit Board display

Description

1. Single sided PCB, double sided PCB & multilayer PCB with competitive price, good quality and excellent service.

2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.

3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.

4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.

5. Quantities range from prototype to medium and batch production.

Item	Capability
PCB Layers	1-24 Layers
Base Material	FR4,CEM1,CEM3,ALU,FR2,FR1,Polymide,Rogers,Arlon,Teflon
Copper Thickness	0.5-6 OZ
Impedance Control	Yes
Peeable Mask	Yes
Min.Line Width	0.75mm
Min.Line Spacing	0.75mm
Min.Annual Ring PTH	0.15mm
PTH	0.20mm±0.05mm
Non-PTH	0.15mm±0.05mm
Hole Aspect Ratio	10
Min.Board Thickness	Singel&Double side 0.2mm
Min.Board Thickness	Multilayer(4,6,8,10 layer)0.4mm,0.55mm,0.8mm,0,8mm
Max Board Sixe	600900mm,4001200mm
Solder Mask Pitch	0.1mm
Outline Tolerance	±0.15mm
V-CUT Tolerance	±0.10mm
thickness Tolerance	MIL-P-13949 Class 2
Gold Finger	5u"-50u"
Surface Finish	HASL,LF HAL,Immersion Gold,Immersion silver,Flash Gold,Flux Coat&OSP
Special Capability	Burial/blind vias,Impedance Control,via plug,BGA,Gold Finger
Test	Fly probe test,E-test,Inspection AOI test
Certificate	RoHS,ISO9001:2000,ISO14001:2004,SGS,UL

PCB assembly capability and services

1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,

good quality and excellent service.

2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc.

3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.

4. Quantities range from sample to mass order<

5. 100% E-Test

Product show

Trade Terms

Payment terms: T/T,Western Union,30% advance,the balance paid before shipment please

Packaging: First put in a polybag per 50 pcs usually,then packed in a big carton;According to the clients'requirements for special orders.

Shipping: By air,by sea,expressage

Thanks for your visiting

Any interest ,please don't hesitate to contact with us

Contact :Kitty Kuang

Skype: live:sale01_133

whatsapp:+86 13047919653
