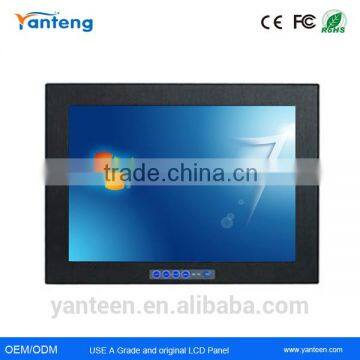

Powder coated aluminum front bezel 21.5inch Industrial LCD monitor for operator terminals and industrial automations
- 100000 Unit / Units per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Front panel IP65 21.5inch embedded touchscreen monitor ,kiosk lcd monitor
-
Front panel IP65 15inch embedded lcd monitor for operator terminals and industrial automations
-
Aluminum front bezel15inch industrial grade lcd monitor with VGA +DVI interface
-
Powder coated aluminum front bezel 17inch embedded touchscreen monitor
-
Front panel IP65 17inch industrial grade lcd monitor with 5-wire resistive touchscreen optional
-
Front panel IP65 19inch embedded lcd monitor for industrial automations
Product Details
Products Status | Stock | Application | Other, Industrial | |
Screen Size | Other, 21.5inch | Response Time | 5ms | |
Brightness | 300cd/m | Interface Type | D-Sub, DVI | |
Contrast Ratio | 5000:1 | Resolution | 1920 x 1080 | |
Widescreen | Yes | Panel Type | TFT | |
Brand Name | OEM | Model Number | YTIM-E2105 | |
Place of Origin | Guangdong, China |
Product Description
Feature:
· Front plate IP65, with vandal-proof or anti-glare protective glass.
· Support VGA, SVGA, XGA.
· VGA interface, DVI/AV optional.
· 12V DC power input.
· 5-wire analog resistive touchscreen (optional).
· Powder coated, stainless steel and aluminum bezel/back cover optional.
· Suit for operator terminals and industrial automations.
· Customized design available.
Specification:
Model No. | YTIM-E2150 | |
LCD panel | Size/Aspect ratio | 21.5''/ 16:9 |
Pixel numbers | 1920(H)*1080(V) | |
Brightness | 300 cd/m2 | |
Contrast Ratio | 5000:1 | |
Viewing Angle | 178° (H)/178° (V) | |
Colors | 16.7 M | |
Input terminals | PC signal | D-Sub15 pin*1, DVI |
Power plug | 12 VDC jack | |
OSD Control | Menu, Auto, Up, Down, Power | |
Operating condition | Temperature | 0°C to 50°C (Operating) |
-20°C to 70°C (Storage ) | ||
Humidity | 10% RH to 90% RH (Operating) | |
10% RH to 90% RH (Storage) | ||
Touchscreen (optional) | 5-wire analog resistive (>92% light transmission) | |
Interface: USB / RS232 | ||
Power & | Input Voltage | 100~240V AC, 50/60Hz |
Power rating | Operation | 48 watt |
(support DPMS) | Stand-by | ‹5 watt |
Weight | N.W./G.W. | 5.8Kgs/7.3Kgs |
External Dimension | ||
Mount | Embedded mount, VESA 75mm, wall mount, etc. | |
Optional | Input: VGA+DVI,VGA+DVI+AV | |
Touch screen(Resistive,SAW,IR,Capacitive) | ||
PC Mainboard | ||
Speakers | ||
Protect glass(Screen protected,double coating) |
Applications:
1.Embedded into all kinds of equipment as display device
2.Telecom, network engine room host monitor
3.Car display (subway, car, etc.) advertising machine
4.Military standard monitor,Reinforcement level display
5.Industrial machinery, numerical control equipment, engineering machinery,
6.Train, subway, hospitals, government agencies, port monitoring and display
7.4S auto shop, product display, automatic vending machine, courier easy box
8.Self registration, bank line access number, terminal self - help machine,
9. Medical equipment,Terminal inquiry machine, automation equipment
Shipping and Package:
Gift&neutral box
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service
Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,
Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Yan Teng?
A: 1. Professional Industrial touch screen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
