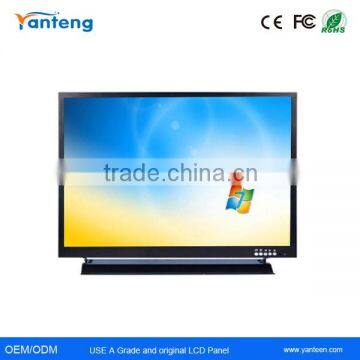

Mulit inputs 22inch security LCD monitor for Commercial and industrial security field
- 100000 Unit / Units per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Metal Casing 22inch CCTV BNC monitor for Industrial automation equipment monitor
-
Anti-jamming 22inch BNC monitor for the microscope special display
-
1680x1050resolution 22inch Industrial CCTV LCD display for Medical machine
-
Metal casing 19inch Industrial LCD CCTV monitor with HDMI and BNC input
-
Mulit inputs19inch Professional LCD CCTV monitor with bnc input and 24 hours of continuous work
-
Square screen 19inch security LCD monitor for Industrial automation equipment
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | YCM-2201 |
Product Description
7inch/8inch/9.7inch/10.4inch/12.1inch/15inch/17inch/19inch/22inch Industril CCTV monitor with metal casing
Feature:
1.Use industrial LCD panel
2.Strong wear resistance
3.Antivibrating Madden
4.Industrial grade and metal casing
5.High quality, anti jamming
6.24 hours of continuous work
7.Long life
8.Piano paint Technology
9. touchscreen option
Specification:
| Model number | YCM-2201 | |
| Panel | Size | 22''(high brightness,high resolution) |
| Display area | 475mm(W)×296mm(H) | |
| Aspect ratio | 16:10 | |
| Dot Pitch | 0.264mm×0.264mm(H,V) | |
| Resolution | 1680x1050 | |
| Contrast ratio | 500:1 | |
| Brightness | 450cd/m2 | |
| Response time | 5ms | |
| Viewing angle | 178°/178° | |
| Color | 16.7M | |
| Life span | 50,000(hours) | |
| Interface | VGA | 15 Pin VGA input |
| BNC1 | BNC input | |
| BNC2 | BNC input | |
| BNC OUT | BNC output | |
| HDMI | HDMI interface(1080p/1080i/720p) | |
| YPBPR R/L | chromatic aberration signal & audio signal input | |
| Audio input | PC audio input | |
| Audio output | PC audio output(Digital) | |
| Power supply | built in AC 100-240V,50/60Hz | |
| Color system | PAL/NTSC/SECAM | |
| OSD | Multi language | English,French,Spanish,Polish,Portuguese,Italian,German,Dutch,Russian(Option ) |
| Stand-alone power | < 40W | |
| Working temperature | 0°C - 50°C | |
| Working Humidity | 10-90% | |
| Installation | Desktop ,Wall mount,can hang on the ceiling | |
| Packing size | 5units/carton,external carton size:410*680*500mm | |
Applications:
1. HD multimedia player
2.Security monitor
3.Video microscope
4.Industrial smart touch monitor,
5.Automatic equipment monitor,
6.Medical machine
7.Vehicle monitor
8.HDMI HD digital TV
9. Customised Solutions
Shipping and Package:
Gift&neutral box, can print the customer’s logo
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
Delivery Time: 3 working days after getting your payment for your trial order. Bulk order need to check with us according to your order quantity.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Strongly support technology and 24 hours after-sale service
6. Special discount and protection of sales area provided to our distributor.
Shenzhen Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor, Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Yanteng ?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
Q:What is the screen panel brand you use?
A: Use SUMSUNG/LG/AUO/CHIMEI TFT full new A grade panel, 100% Original A+ Grade TFT Screen ,Ensure that it more stability, and check the products attentively.
Q:Which size of LCD CCTV Monitor do you have?
A:Plastic casing:7/8/10.4/12.1/15/17/19/22inch
Metal casing: 7/8/10.4/12.1/15/17/19/22/24/32/40/42/55/65inch(industrial Grade and Professional grade)
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
