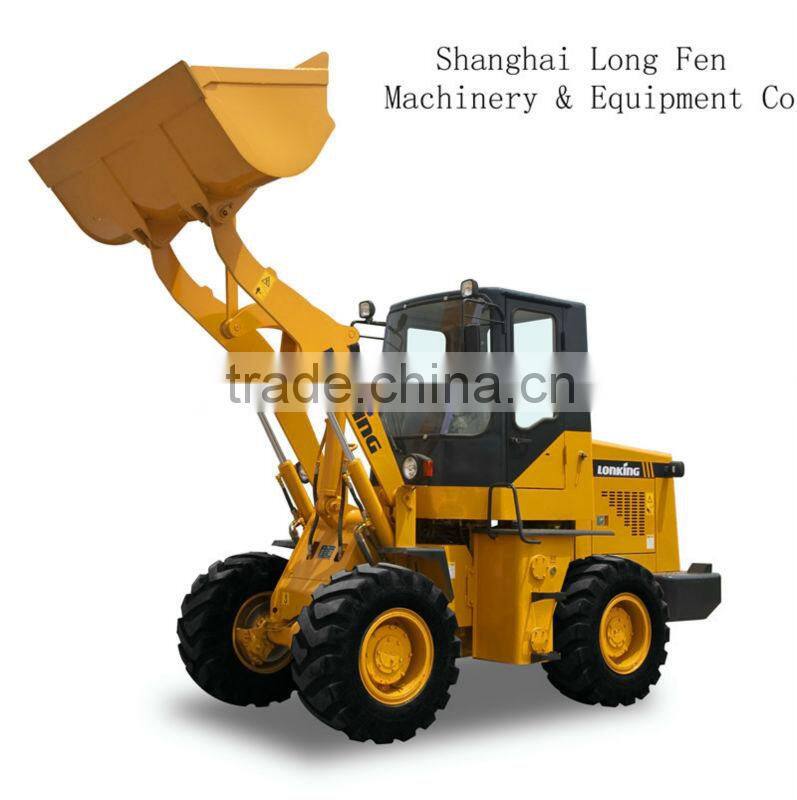

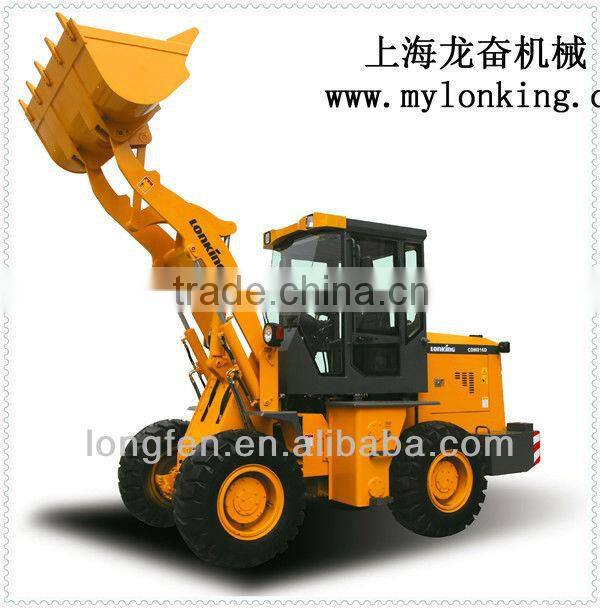

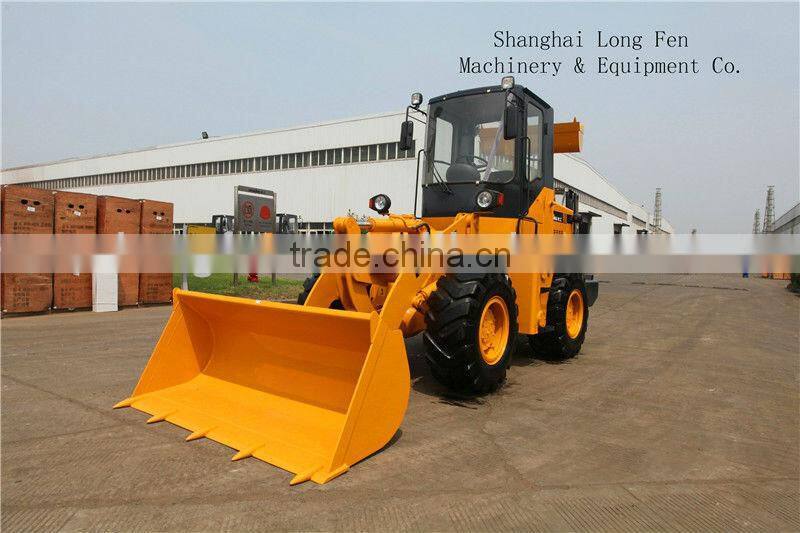

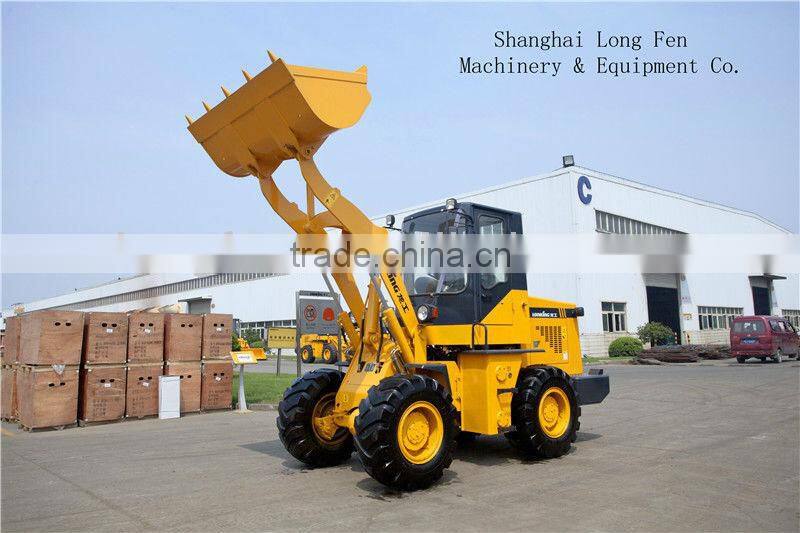

1.6 Ton Mini Loader Made in China (Lonking LG816D)

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	LONKING
Model Number	LG816D	Place of Origin	Shanghai, China
Type	Mini Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	5800x1800x2930mm	Rated Load	1600kg
Certification	ISO	Warranty	12months or 2000working hours from the date of B/L, which comes first.
After-sales Service Provided	Overseas third-party support available

powerful Changchai engine
hydraulic transmission & torque converter
reliable powertrain
optimized structure design

								Air Conditioning System (Optional)
Overall Data								Steering System
Bucket Capacity (m³)							0.95	Type			Hydraulic Load Sensor System
Rated Payload (kg)							1600	Cylinders-BorexStroke (mm)				2-63X280
Operating Weight (kg)							5500	Steering Pump				Shared With Working Pump
Traction Force (kN)							50	System Pressure (MPa)				14
Breakout Force (kN) Max. Travel Speeds (km /h):							52	Steering Angle				±35°
	I				II			Hydraulic System
Forward	7.4				20.8			Lift Cylinders-BorexStroke (mm)				2-90X589
Reverse	7.2				20.4			Tilt Cylinder-BorexStroke(mm)				1-100X387
Engine					YTO YT4A2-24			Working Pump				Gear Pump
Rated Power (kW/rpm)						55/2400		Flow Rate (L/min/RPM)				120/2400
Rated Torque (Nm/rpm)						235/1680-1800		System Pressure (MPa)				16
Starting Voltage (V)						24
Drive Train								Hydraulic Cycle Time, Rated Load in Bucket (In Second):
Torque Converter			Single-stage, Single-turbine, 3-element					Raise(Loaded)	Dump	Lower(Empty)			Total
Torque Ratio			3.7					4.9	0.8	3.7			9.4
Transmission			Fixed Shaft Hydraulic Shift Spur Gear					Electrical System
Gear			2F/2R					System Voltage (V)				24
Pressure of Transmission (MPa)							1.2-1.5	Battery(2 in series) (Ah)				180
Main Reducer		Spiral Bevel Gear Single-stage Reduction						Lamp Voltage (V)				24
Final Reducer		Planetary Reduction						Service Refill Capacity
Tire		16/70-20						Fuel Tank (L)				80
Brake System								Hydraulic Tank (L)				80
Service Brake		Air Drive, Four Wheel Brake (Dry)						Transmission (L)				14
Setting Pressure (MPa) Parking & Emergency Brake				0.78 Flexible Shaft Controlled Caliper				Front Axle (L) / Rear Axle (L)				12/12
								Heating Capacity (W)				5800(±10%)
								Cooling Capacity (W)				4500(±10%)

Standard Optional
Shantui Transmission Feicheng Axle Standard Bucket				Log Grapple (J) Light-duty Grapple (ZZ)
