Home > Products > Telescopic forklift > 3.5ton Telescopic forklift

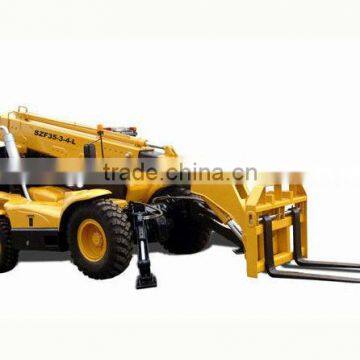

3.5ton Telescopic forklift
- 50 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Model Number | SZF35-3-4-L | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 3500KG | Max. Lifting Height | 9200mm | |
| Overall Dimensions | 6050*2250*2580mm |
Product Description
Specifications
Cummins Turbo diesel 4BT3.9-C100Max.load capacity, 3500KG
Max.height of lifting:9200mm
Forward reach (max):6000mm
Main Feature:
Telescopic Forklift is a kind of Multi-functional engineering machinery .It can be used for lift and carry, with good stability and efficiency. It has compact frame, flexible operation , sensitive lift, automatic adjustment ,high carrying capacity.
Adopting the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
Equipped with power transmission, compact structure, high rigidity.
With articulated frame, small turning radius.
wheel drive, steering by front wheel, and so on.
The driver′s cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comfortableness of the operating
Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
Multi-function instrument can be chosen It is a kind of machinery which is suitable for lifting and carrying in narrow ground.
| Model | SZF35-3-4-L | ||
Lifting capacity (max) | 3500kg | ||
Overall weight | 11000kg | ||
Lift capacity at maximum reach | 2000kg | ||
Max.height of lifting | 9200mm | ||
Forward reach (max) | 6000mm | ||
Center of load | 500mm | ||
Transmission | Hydro-mechanical transmission | ||
Drive type | Four wheel drive | ||
Steering modes | Rear wheel steering | ||
Boom segments | 3 segments | ||
Size | |||
Overall length | with fork | 6050mm | |
without fork | 4780mm | ||
Overall width | 2250mm | ||
overall height | The height of fork in ground | 2580mm | |
Cab height | 2210mm | ||
Wheelbase | 2500mm | ||
Tread | Front | 1800mm | |
Rear | 1900mm | ||
Ground clearance (min) | 350mm | ||
Performance | |||
Max.lifting speed | Without load | 300mm/s | |
Full load | 280mm/s | ||
Max.Travel speed | Without load | 35km/h | |
Full load | 30km/h | ||
Max.gradeability with full load | 20% | ||
Min turn radius | 5300mm | ||
Max.traction force with full load | 15KN | ||
Power | |||
Engine | Cummins Turbo diesel 4BT3.9-C100 | ||
Rated power | 100/75KW | ||
Fuel tank capacity | 115(L) | ||
Hydraulic tank capacity | 102(L) | ||
