CMD510B Lonking Cheap Price of Road Roller With Cheap Price Compactor

FOB Price

US$ 1 - 10,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Single Drum Roller
Static Linear Pressure	580N/cm	Travel Speed	2.5-8.2km/h
Grade Ability	30%	Place of Origin	Shanghai, China
Brand Name	Lonking	Model Number	CMD510B
Power(W)	85kw	Dimension(LWH)	639823003096MM
Weight	10000kg	Certification	ISO CE
After-sales Service Provided	Engineers available to service machinery overseas

Lonking brand 10 ton road roller for sale

Product Description

lONKINGR 10TON ROAD ROLLER CDM510B FOR SALE

THE FEATURES FOR THE lONKING CDM510B PARAMETER

Construction Machinery CDM510B features:

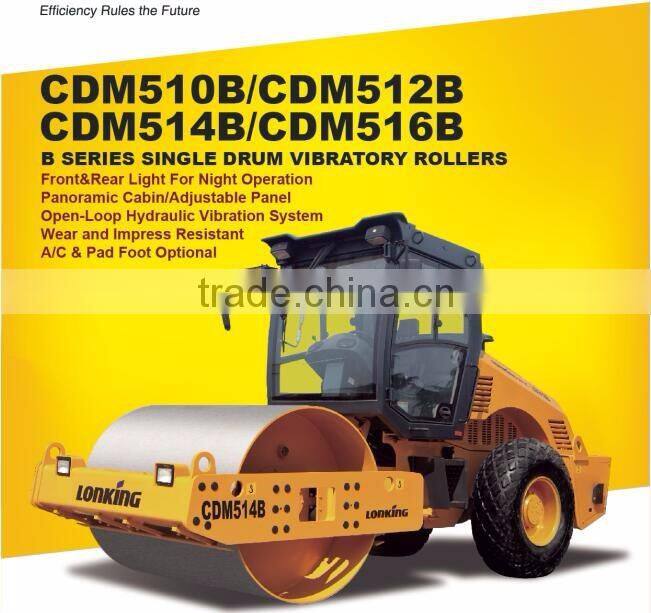

B SERIES SINGLE DRUM VIBRATORY ROLLERS

Front & Rear Light For Night Operation

Panoramic Cabin/Adjustbale Panel

Close-Loop Hydraulic Vibration System

Permco Hydraulic Components

Wear And Impress Resistant

A/C & Pad Foot Optional

THE PAPAMETER OF lONKING10 TON ROAD ROLLER CDM510B

Size

Weight Load	Model		CDM510B
	Operating Weight (kg)		10000
	Distributed Weight for Drum(kg)		5000
	Distributed Weight for RearWheel(kg)		5000
Compact Performance	Static Linear Load for Drum(N/cm)		235
	Frequency(HZ)		28
	Nominal Amplitude(mm)		1.8/0.9
	Centrifugal Force(kN)		240/150
Maneuverability Perfomance	Diameter of Drum(mm)		1520
	Width of Drum(mm) (W2)		2120
	Rim Thickness of Drum(mm)		20
	LengthWidthHeight(mm)(LW1H)		597522603250
	Min .Ground Clearance(mm) (h)		420
	Min .Steering Radius(mm)		6500
	Wheelbase(mm) (L1)		3135
	Travel Speed(km/h)	Forward	1.9/3.3/9.1
		Reverse	1.9/3.3
	Gradeability		30%
	Steering Angle		30±1°
	Swing Angle		±10°
	Tyre Specification		17.5-25 12PR
Engine	Manufacturer		Yuchai
	Model		YC6B120-T20
	Rated Power(kW/rpm)		85/2200
	Min Fuel Consumption(g/kW•h)		235
Capacity	Storage Battery (V/Ah)		12V/120Ah/2
	Fuel Tank(L)		220
	Hydraulic Tank(L)		220
Others	Drive Type		Mechanical
	Vibration System		Open-loop Hydraulic Vibration System
	Service Brake		Air Booster Caliper Rear Axle Brake
	Parking Brake		Shaft Controlling Brake of Gear Box

Size

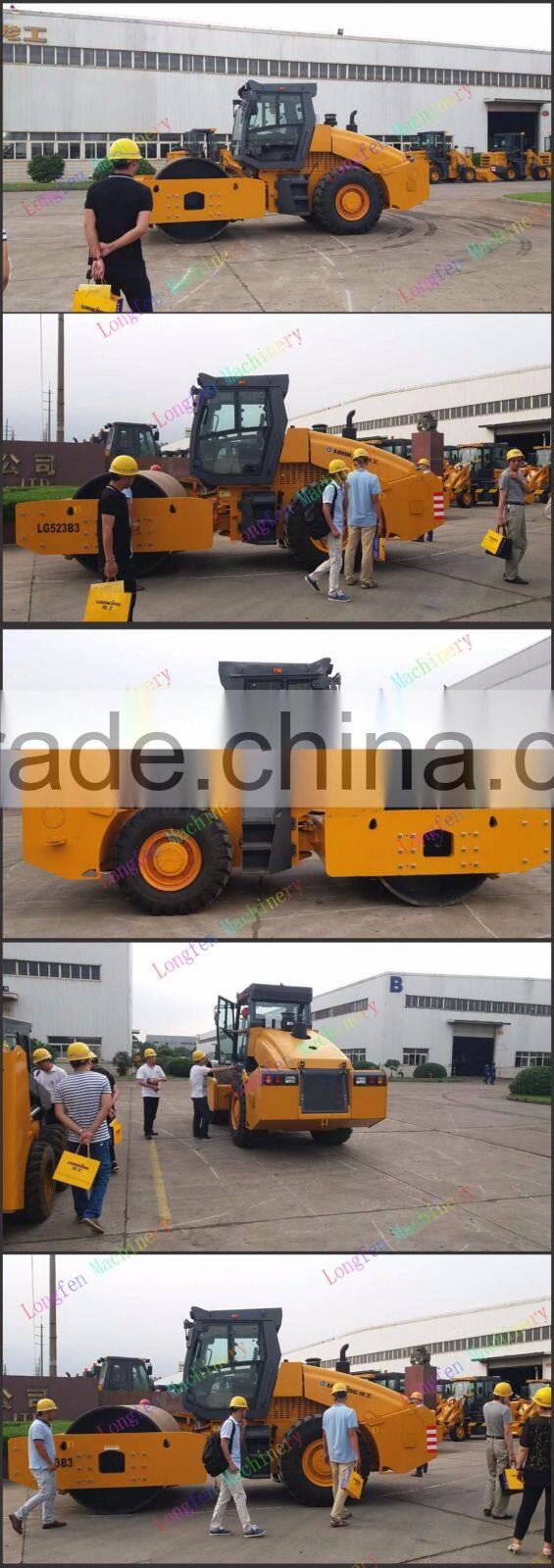

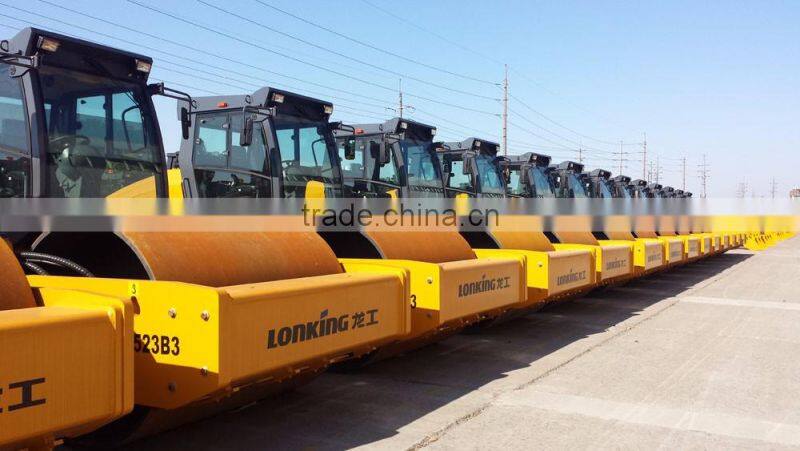

Product pictures
