Home > Products > Motor grader > Motor Grade Road Grader Parts

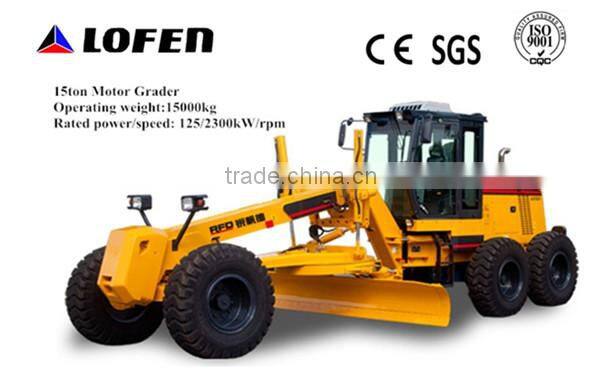

Motor Grade Road Grader Parts
- shanhai
- T/T
You May Like
Product Details
| Condition | New | Forward Speed(km/h) | 32 | |
| Reverse Speed(km/h) | 26 | Place of Origin | China | |
| Brand Name | RFD | Model Number | LG1165 | |
| Weight | 15000kg | Dimension(L*W*H) | 8000*2670*3500MM | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
The vehicle is driven by hydraulic system of open type variable displacement and constant displacement.Shanghai Long Fen Machinery & Equipment Co., Ltd. is the general agent of Lonking Holdings Limited (Shanghai). We provide customers with what they need, for example:
In-House Training: our company provides introductory and higher level training services for technicians of distributors and maintenance staff members to maximize machine operation. We have excellent in-house training facility in Shanghai and Longyan, and well-equipped training centers facilitated by different departments.
Maximum depth of cutting 550mm
Maximum lift above ground 455mm
Maximum blade position angle 90°
Circle reversing rotation 360°
Moldboard width×height 3665×600mm
Drive tire 4
Max.steering angle of front wheels ±45°
Max.lean angle of front wheels ±17°
Max.oscillation angle of front wheels ±15°
Frame articulation angle 23°
Min.turning radius using articulation 8m
Travelling speed,forward 5,8,12,18,26,32km/h
Travelling speed,reverse 5,12,26km/h
Tractive force 82kN
Max.gradeability 30%
Engine model 6BTA5.9-C170
Rated power/speed 125/2300kW/rpm
Dimension(L×W×H) 8500×2670×3500mm
Operating weight 15000kg
