Home > Products > Loader > LG862 China Lonking 6 Ton Wheel Loader Price With CE

LG862 China Lonking 6 Ton Wheel Loader Price With CE

FOB Price

US$ 1 - 40,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	Lonking
Model Number	LG860	Place of Origin	Shanghai, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	815030003545mm3	Rated Load	6000kg
Certification	ISO CE	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

High quality Lonking 6 ton wheel loader for sale

Product Description

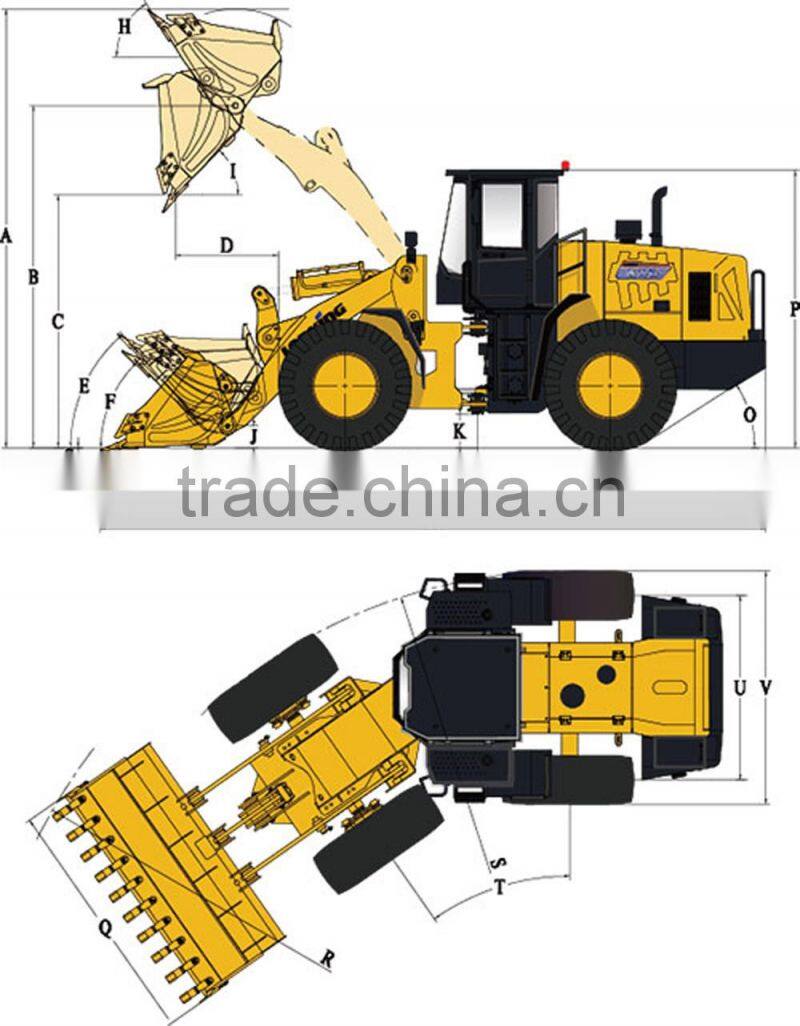

Ovarall Size

NO.	DESCRIPTION	UNIT	DIMENSIONS
A	Overall Height – Bucket Raised	mm	5988
B	Bucket Pin Height at Max. Lift	mm	4550
C	Dump Clearance at Max. Lift ( 45°)	mm	3411
D	Reach at Max. Lift and 45° Dump	mm	1206
E	Rack Back Angle at Carry	^o	49
F	Rack Back Angle at Ground	^o	44
G	Digging Depth	mm	60
H	Rack Back Angle at Max. Lift	^o	54
I	Dump Angle at Max. Lift	^o	45
J	Carry Height	mm	311
K	Ground Clearance	mm	432
L	Center Line of Front Axle to Hitch	mm	1700
M	Wheel Base	mm	3400
N	Overall Length	mm	8610
O	Departure Angle	^o	28
P	Height to Top of Cab	mm	3430
Q	Overall Width over Bucket	mm	3050
R	Min. Turning Radius over Bucket	mm	7650
S	Min. Turning Radius over Tires	mm	6797.5
T	Steering Angle – Left/Right	^o	35
U	Width at Tread Center	mm	2270
V	Overall Width over Tires	mm	2865

Overall Date and engine &electric system

OVERALL DATE
Bucket capacity		3.5-5.0m³
Rated payload		6000kg
Operating Weight		20850±300kg
Traction Force		175±3kN
Breakout Force		200±3kN
L×W×H		8610×3050×3430mm
ENGINE&ELECTRICAL SYSTEM
lMaker/Mode		WEICHAI/WD10G240E11
Emission Standard		EPA (TierⅡ)/NationalⅡ
Engine Type		4 Stroke,Turbocharged,Water-cooled,Direct Injection,Diesel Engine
Rated Power		175kW(240hp)/2200rpm
Maximum Torque		920N·m/1300-1600rpm
Bore x Stroke (mm)		126×130
No. of Cylinders/Displacement		6/9.726L
Compression Ratio		17
Air Cleaner		Three Stage Air Cleaner with Cyclone Pre-cleaner
Alternator		55Amp
Battery		2-24V/120Ah
Starting Motor		24V/7.5kW
Heating Capacity (W)		5000W
Cooling Capacity (W)		4700W

Hydraulic System

HYDRAULIC SYSTEM
Type				Single-lever(Joystick) Control
Pump				Gear Pump,275L/min·2200rpm
Control Valve				2 Spool (Bucket&Boom)
System Pressure				16MPa
Cylinder		Lift Cylinder		2-180×864mm
No.-Bore x stroke		Tilt Cylinder		1-220×626mm
Joystick Control Pressure				2.5MPa
Cycle Time	Raise		Dump		Lower	Total
(Sec)	6.3		1.2		4.3	11.8

Drive Train

DRIVE TRAIN
Transmission Type			Countershaft Powershift Transmission
Shift Type			Electronic Powershift Control
Pressure of Transmission			1.6-1.8MPa
Torque Converter Type			Single-stage,Single-turbine,3-element
Torque Ratio			2.5
Axles			Rigid Front Axle&Oscillating Rear Axle
Rear Axle Oscillation (°)			±10°
Differential			Conventional
Main Reducer			Spiral Bevel,1-stage Reduction

Tire			23.5-25 L-3 20PR TT
Travel Speeds	km/h	1st	2nd	3rd	4th
	Forward	6.7	11.7	23.8	37.5
	Reverse	6.7	11.7	23.8

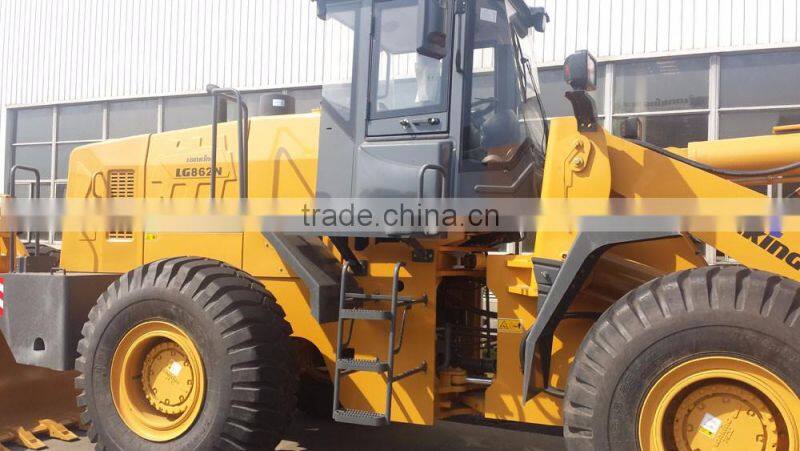

PICTURES FOR LONKING 6 TON WHEEL LOAER

Packaging & Shipping

Packing and Shipping

Customers visit

Our Team
