LG35B(ac) China Lonking Hangcha Forklift /heli Forklift for Sale

FOB Price

US$ 13,300 - 13,500 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	Lonking	Model Number	LG35B
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	3500kg	Max. Lifting Height	6000mm
Min. Lifting Height	2175mm	Fork Length	1070mm
Fork Width	125mm	Overall Dimensions	360812252175mm
Certification	ISO CE	After-sales Service Provided	Engineers available to service machinery overseas

Lonking 3 ton elctric forklift for sale with low price

Product Description

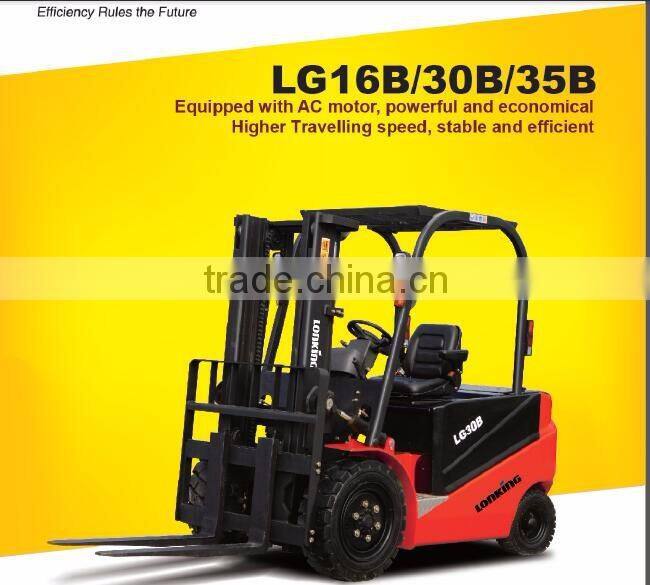

The features for LG35B(AC) electric forklifts

Logistics Equipment LG35(AC) features

Advanced Ergonomical Design

Equipped with AC motor, powerful and economical

Wide View Mast

Easy to repair

the main parametor for LG30B(ac) electric forklifts

Model		LG35B
Power type		Battery
Rated capacity (Kg)		3500
J Load centre (mm)		500
h1 STD Max.lifting height (mm)		3000
h3 Free lifting height (mm)		165
L5WT Fork size (mm)		1070×125×45
L3 Front overhang (mm)		478

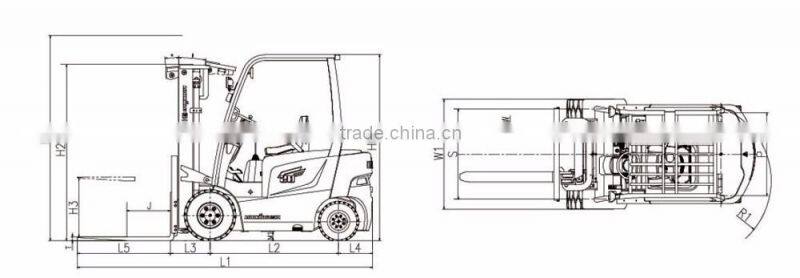

Overall dimension
L1 Overall length(with fork)(mm)		3648
W1 Overall width (mm)		1225
h2 Mast lowered height (mm)		2077
h4 Overhead guard height (mm)		2175
R1 Min.turning radius (mm)		2410
Min.intersecting aisle (mm)		3728
Speed(load/unload)
Max.traveling speed (km/h)(F/R)		13/15
Max.lifting speed (mm/s)(load/unload)		220/300
Max.gradient (load/unload)(%)		15/15
Dead weight (kg)		5440
S/P Tread(front/rear)(mm)		1000/980
L2 Axle distance (mm)		1700
Min.ground clearance
m2 Mast (mm)		130
Tire	Front	23×9-15-12PR
	Rear	18×7-8-14PR
Motor	Travel(AC)(kW)	11.75
	Lift(AC)(kW)	10
Battery(V/Ah)		80/500
Working pressure(Mpa)		16
Controller		ZAPI

The pictures for Lonking 3.5 ton electric forklifts

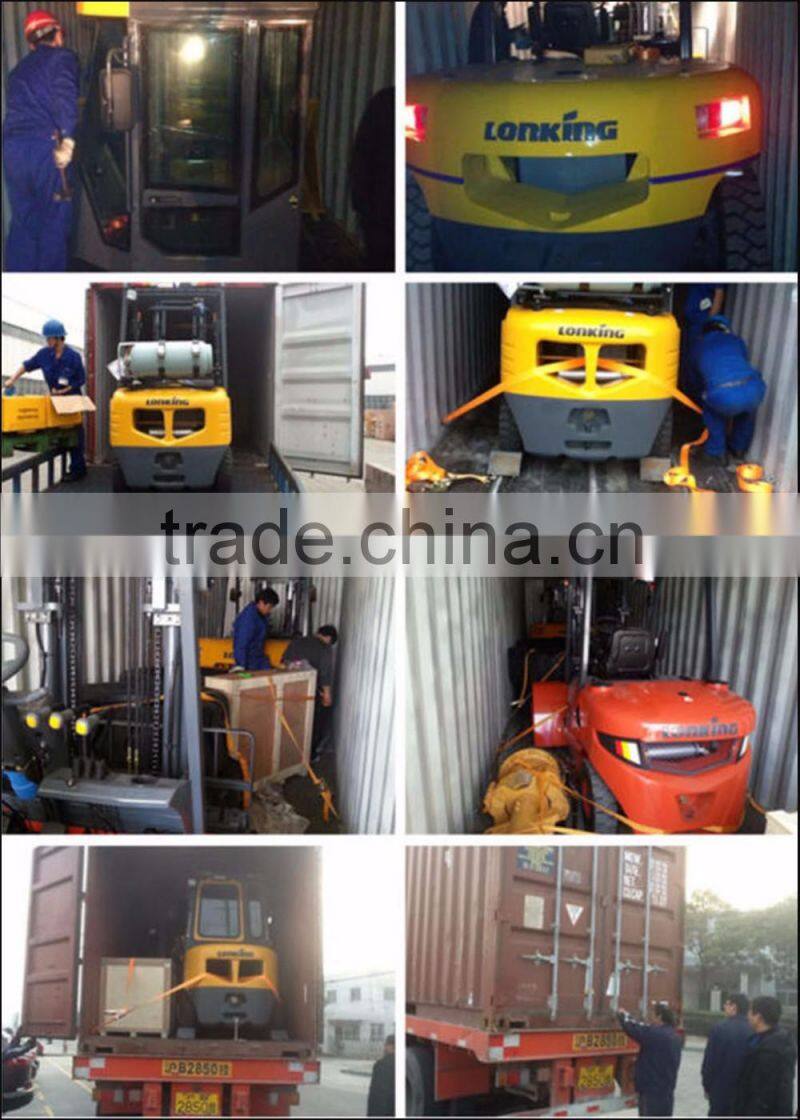

Packaging & Shipping

the packing and shipping

exhibition

Certifications
