R25-R32 button bit
Negotiable
/ Set
1 Set(Min.Order)
- 1000 Unit / Units per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Kerex | |
| Model Number | R25-R32 button bit Q538-25R |
Product Description
Specifications
1.R25-R32 button bit for Hydraulic drilling machine2.Bit diameter from 38mm-51mm
3.Widely used in coal, tunneling engineering
R25-R32 Button bits
Features of R25-R32 Button bits:
1. R25-R32 Button bits for Hydraulic drilling machine
2. Bit diameter from 36mm-102mm
3. Widely used in coal, tunneling engineering
Specifications of R25-R32 Button bits:
| Bit diameter(mm) | Angle | Button Type | Thread | Water hole | Part NO. |
| 38 | 30° | Spherical/Ballistic | 25R | 2 | Q538-25R |
| 41 | 30° | Spherical/Ballistic | 25R | 2 | Q541-25R |
| 45 | 30° | Spherical/Ballistic | 25R | 2 | Q545-25R |
| 48 | 30° | Spherical/Ballistic | 25R | 2 | Q548-25R |
| 41 | 30° | Spherical/Ballistic | 28R | 2 | Q541-28R |
| 45 | 30° | Spherical/Ballistic | 32R | 3 | Q545-32R |
| 38 | 30° | Spherical/Ballistic | 25R | 3 | Q738-25R |
| 41 | 30° | Spherical/Ballistic | 25R | 3 | Q741-25R |
| 45 | 30° | Spherical/Ballistic | 25R | 3 | Q745-25R |
| 38 | 30° | Spherical/Ballistic | 28R | 3 | Q738-28R |
| 41 | 30° | Spherical/Ballistic | 28R | 3 | Q741-28R |
| 45 | 30° | Spherical/Ballistic | 28R | 3 | Q745-28R |
| 48 | 30° | Spherical/Ballistic | 28R | 3 | Q748-28R |
| 41 | 30° | Spherical/Ballistic | 32R | 3 | Q741-32R |
| 43 | 30° | Spherical/Ballistic | 32R | 3 | Q743-32R |
| 45 | 30° | Spherical/Ballistic | 32R | 3 | Q745-32R |
| 48 | 30° | Spherical/Ballistic | 32R | 3 | Q748-32R |
| 51 | 30° | Spherical/Ballistic | 32R | 3 | Q751-32R |

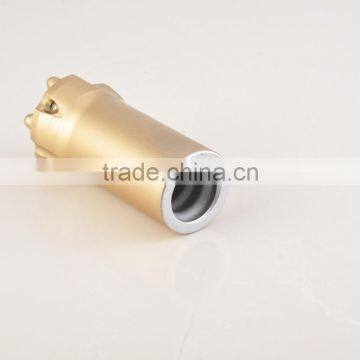

Photos of R25-R32 Button bits:
Other drill bits from our company:
