3.5hp refrigerating compressor for supermarket freezer

FOB Price

US$ 4,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Sanye
Model Number	HS263CH3		Condition	New

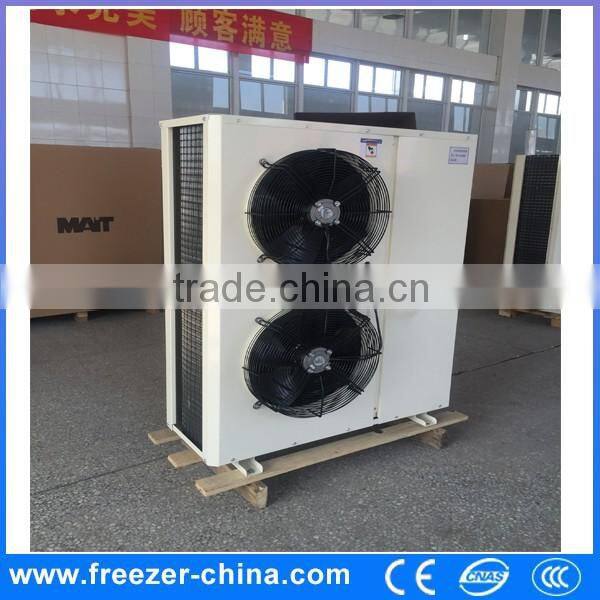

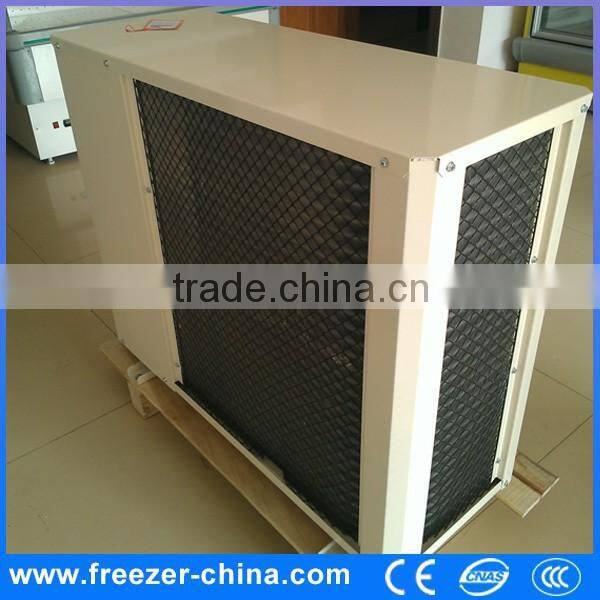

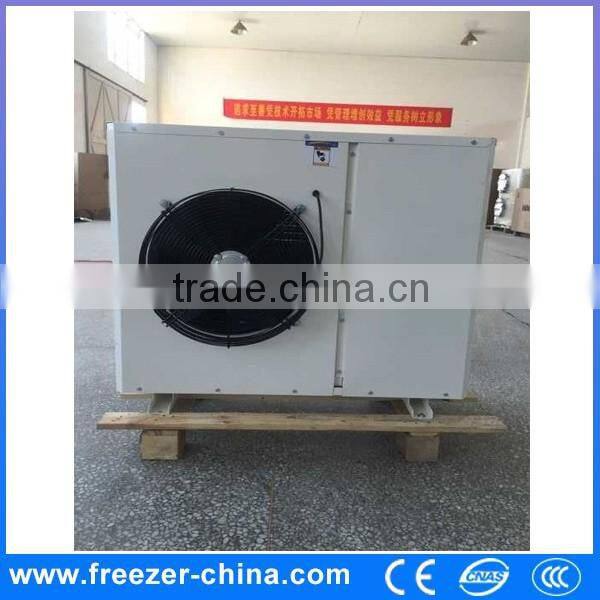

3.5hp refrigerating compressor for supermarket freezer

Product Description

1. Various kinds of models, brands for your optional;

2. Large volume, small dimension, high efficient;

3. Air cooled;

4. Compressor brand: Copeland, Bitzer, Sanyo, etc for your optional;

5. Safe and reliable system.

Product Parameters

Model		HS261CH2	HS263CH3	HS303CH3	HS373CH3	HS453CH3	HS235CH3	HS603DH3	HS753DH3	HS903DH3
Refrigerant	R22
Applicable temperature	0-15
( °C)	0-15
Power supply		220V/50HZ	380V/50HZ
Scroll compressor model		C-SB261H5A	C-SB263H8A	C-SB303H8A	C-SB373H8A	C-SB453H8A	C-SBR235H38A	C-SC603H8H	C-SC753H8H	C-SC903H8H
Scroll compressor model		3.5hp (side air outlet)	3.5hp (side air outlet)	4hp (side air outlet)	5hp (side air outlet)	6hp (side air outlet)	7hp (side air outlet)	8hp (top air outlet)	10hp (top air outlet)	12hp (top air outlet)
Max. running current (A)		12.9	4.9	5.5	6.6	7.7	8.8	10.6	12.8	15.1
Condenser	fan quantity	1	1	1	2	2	2	1	1	1
	blowing rate (m3/h)	3600	3600	3600	5400	7200	7200	8800	12000	12000
	fan power	195	190	190	150x2	190x2	190x2	700	780	780
Interface	Inhale interface (mm)	Φ16	Φ16	Φ16	Φ19	Φ19	Φ19	Φ22	Φ22	Φ22
Interface	Fluid supplying interface (mm)	Φ12.7	Φ12.7	Φ12.7	Φ12.7	Φ12.7	Φ12.7	Φ16	Φ16	Φ16
Weight (kg)		87	87	90	107	112	114	177	180	186
Dimension	Length (mm)	1020	1020	1020	1030	1030	1030	1000	1000	1000
	Width	490	490	490	490	490	490	1000	1000	1000
	(mm)	490	490	490	490	490	490	1000	1000	1000
	Height(mm)	835	835	835	1290	1290	1290	1470	1470	1470
Design condensing temperature (°C)		45

Freezer Accessories

Color Selection

Packaging & Shipping
