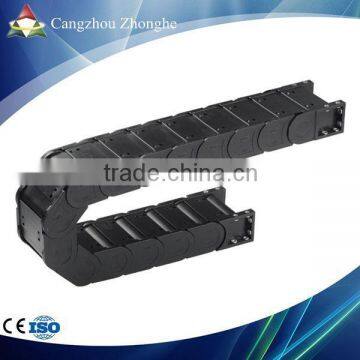

China factory produce totally enclosed electrical cable chain

Feature

1.The enclosed cable chain can be used for such locations where  reciprocating motions are required  so that internally  installed  cables ,oil pipes ,gas tubes and water  tubes can be dragged  an protected .

2.The appearance  of the cable protection chain looks like the crawler  of a tank consisting of certain number of joints,they are freely turned roud.

3.Spacers are not available for these small ones.

4.Material :reinforced nylon

5.resistance :oil and salt resistance

6.service :under normal conditions,5 million reciprocating motions can be reached.

Do you want to know the assembly process of the cable chain?



The above is only part of the product specifications, Other specifications, please contact me!

How to choose the size of cable chain?

1.Inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .

2.Inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin.

3.Radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin.

Installation for cable chain

Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.

when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
