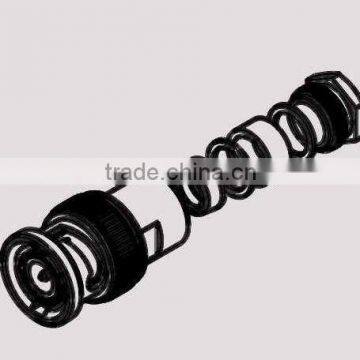

EB-2901 Bnc Male Twist on Straight for Cable RG59 or RG6

Specifications

solderless connector are popular for cable

Coaxial connector, RF connector, BNC connectors are designed to provide high electrical performance for microwaveapplications up to 12GHZ.BNC connectors ensure quick locked and excellent durability and mechanical strength.

BNC male twist on for cable

1.  ELECTRICAL

Impedance: 75W nominal

Frequency Range: 0~4GHz

Rating Voltage: 500V

Dielectric Withstanding Voltage: 1500V

Contact Resistance: 3.0 mW MAX

Insulation Resistance: 5000 MW MIN.

2.  GENERAL CHARACTERISTICS

Storage Temperature:           -40°C to 85°C

3.  RELIABILITY

DURABILITY:               >500 CYCLES

SALT SPRAY TEST:    APPEARANCE OK & CONTACT RESISTANCE 40mW max. (Exposed to salt mist conditions: concentration 5±1%, PH: 6.5-7.2, cycle is 13’s spray, 11’s stop, temp is 35±2°C, time: 8 hours.)

4. Rohs:

All the components of this connector are compliant with European directive 2002/95/CE”.

BNC connectors are characterized by their 2-stud quick connect/disconnect bayonet coupling arrangement.

They are one of the most popular of the coaxial connector and are suitable for a wide range of systems,including Radio Telecommunication systems,Medical Equipment,Computer Networks,Safety&Security and test instrumentation.Available in 50Ω,75Ω,and 50Ω reverse polarity.

Product Group

Production Line View

Quality

• QC/Technical Support We possess digital calipers, digital micrometers, thread and pin gauges, tool microscopes, pitch diameter micrometers, height gauges, profile projectors, hardness testers, ohm testers and push/pull testers.

• Awards & Other Recognitions We are ISO 9001:2008 certified

Profile Each of our staff members possesses a college degree, and on average, they each have 4 years of experience.
