Product Details
| Place of Origin | Henan, China | Brand Name | Zhenzhou hongliang cable | |
| Model Number | Control Cable | Insulation Material | PVC | |
| Type | Low Voltage | Application | Power Station | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
Item name: KVVP22 Cable Control cable Electrical Cable KVV/KVVP/KVVP2/KVV22/KVVR/ZR-KVVRP/ZR-KVV/ZR-KVVP2/ZR-KVV2/ZR-KVVR Cable .
1. Application of KVVP22 Cable Control cable Electrical Cable KVV/KVVP/KVVP2/KVV22/KVVR/ZR-KVVRP/ZR-KVV/ZR-KVVP2/ZR-KVV2/ZR-KVVR Cable :
Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
2. Technical data of KVVP22 Cable Control cable Electrical Cable KVV/KVVP/KVVP2/KVV22/KVVR/ZR-KVVRP/ZR-KVV/ZR-KVVP2/ZR-KVV2/ZR-KVVR Cable :
1. Long-term service temperature of the cable conductor: 70℃
2. Rated voltage: 450/750V
3. Cable lying temperature ≥0℃
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:Non armored ≥ out diameter of cable 6 timesArmored layer or copper tape
shielded ≥ outerdiameter of cable 12 timesShielded layer soft cable ≥ outer diameter of cable 6 times
The long-term working temperature of the conductor wire core is from 70 ℃ to 95 ℃, while the laying temperature is not lower than 0 ℃.
3. Executive standard :
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Model | Name | Voltage V | Number of cores | Cross-sectional area mm2 | Range of application | |
KVV | Copper core PVC insulated PVC sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipelines and other fixed occasion | |
KVV22 | Copper core PVC insulated PVC sheathed steel tape armored control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, directly buried pipeline and other fixed occasion, also can bear larger external mechanical forces | |
KVVP | Flame retardant copper core PVC insulated PVC sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipelines, etc, and somewhere that need fixed installation | |
KVVR | Soft copper core PVC insulated and sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, where there is a requirement for mobile | |
KVVRP | Copper core PVC insulated PVC sheathed braided shielding control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, where there is a requirement for mobile screen | |
ZRKVV | Flame retardant copper core PVC insulated PVC sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipe fixed occasion where demands such as flame retardant | |
ZRKVV22 | Flame retardant copper core PVC insulated PVC sheathed woven tape armored control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipes, burying and etc. There is a requirement for flame retardant can bear external mechanical forces larger fixed occasion | |

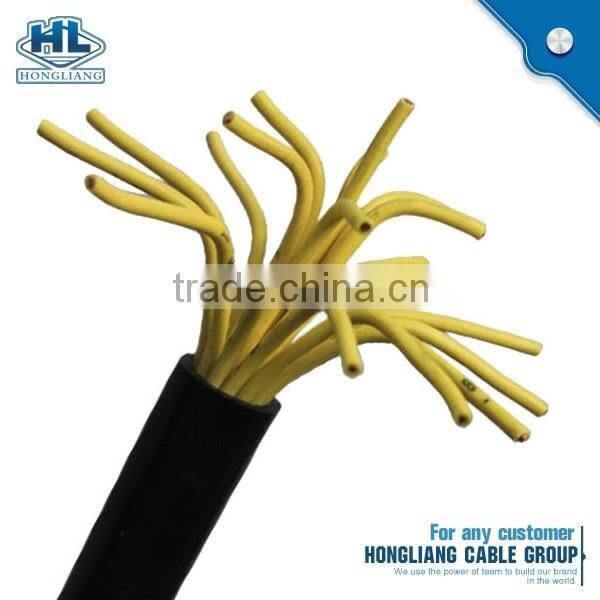

4. Picture show KVVP22 Cable Control cable Electrical Cable KVV/KVVP/KVVP2/KVV22/KVVR/ZR-KVVRP/ZR-KVV/ZR-KVVP2/ZR-KVV2/ZR-KVVR Cable :
KVVP22 Cable Control cable Electrical Cable KVV/KVVP/KVVP2/KVV22/KVVR/ZR-KVVRP/ZR-KVV/ZR-KVVP2/ZR-KVV2/ZR-KVVR Cable .
International wooden drums or as your requirement.
KVVP22 Cable Control cable Electrical Cable KVV/KVVP/KVVP2/KVV22/KVVR/ZR-KVVRP/ZR-KVV/ZR-KVVP2/ZR-KVV2/ZR-KVVR Cable .
