2x8 2x10 3x6 3x8 AWG XLPE Insulated Concentric Copper Cable

Item name:2x8 2x10 3x6 3x8 AWG XLPE Insulated Concentric Copper Cable .

1. Application of 2x8 2x10 3x6 3x8 AWG XLPE Insulated Concentric Copper Cable :

NYCY cables are used in power plants, industrial and switching installations, for street lighting, domestic power supply connections, in secondary distribution networks and other. These cables are preferentially used for underground application as well as for interior installation in room and cable ducts and for outdoor and applications, for indoor installations, in the open air, underground and in water where greater mechanical protection an protection against accidental contact is required if damaged.

2.  Technical data  of 2x8 2x10 3x6 3x8 AWG XLPE Insulated Concentric Copper Cable :

Conductors: Stranded Annealed Copper

Insulation: XLPE (Cross-linked Polyethylene)

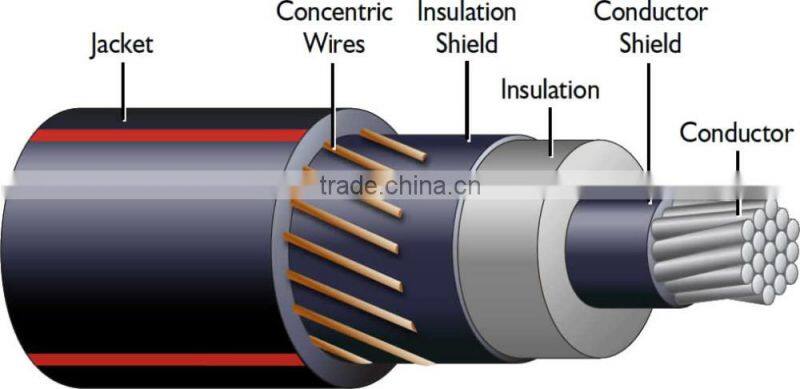

Concentric layer: Single layer of plain annealed copper wires

Sheath/Jacket: PE(Polyethylene) or XLPE (Cross-linked Polyethylene)

Common Used Colours:

For insulation: Blue, Black and Red.

For external jacket: Black

Voltage: 600 volts

Operating temperature: Maximum 90°C, minimum -30°C

3. Executive standard :

VDE0276 part 603, CENELEC HD603 S1, IEC 60502
7 cores and above to VDE0276 part 627, CENELEC HD627 S1, IEC 60502 upon request

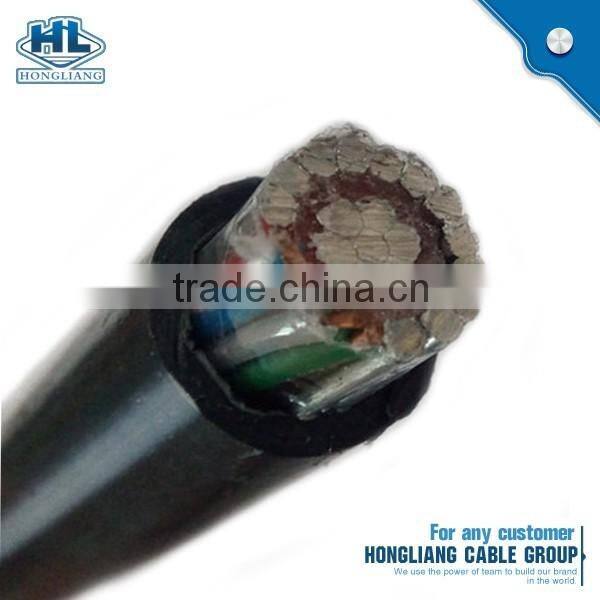

4. Picture show  2x8 2x10 3x6 3x8 AWG XLPE Insulated Concentric Copper Cable :

2x8 2x10 3x6 3x8 AWG XLPE Insulated Concentric Copper Cable .

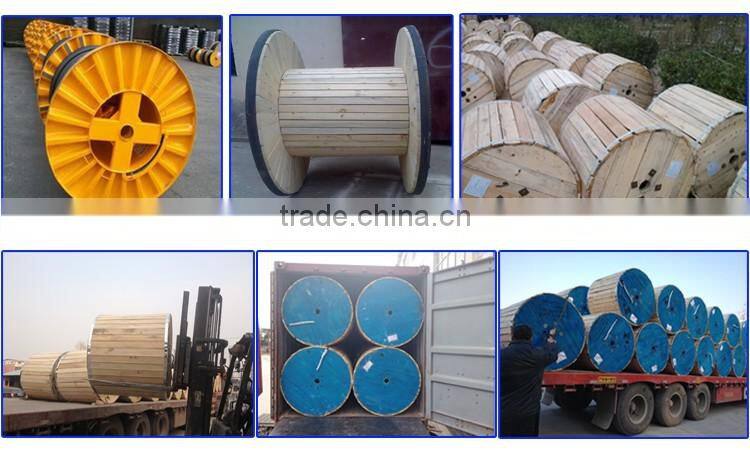

International wooden drums or as your requirement.

2x8 2x10 3x6 3x8 AWG XLPE Insulated Concentric Copper Cable .

   Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.

    The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.

2x8 2x10 3x6 3x8 AWG XLPE Insulated Concentric Copper Cable .
