16mm2 Aluminum Conductor Aluminum Alloy Reinforced ACAR Conductor
- Qingdao Shanghai Tianjin China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Standard BS-215-1 35mm2 All Aluminum Conductor AAC Bare Overhead Conductor
-
Standard -ASTM B2316 ROSE Overhead Bare Cable AAC 600V 2/0 AWG Quadruplex All Aluminium Conductor
-
Aluminum Conductor Carbon Fiber Composite Core Reinforced ACCC Conductor
-
240/30 Aluminum Conductor Carbon Fiber Composite Core Bare Reinforced ACCC Conductor
-
U.S.A Standard -ASTM B232 ACSR Pigeon 3/0 Awg Conductor Penguin 4/0 Awg Acsr Conductor
-
IEC 61089 Standard Aluminum ACSR Conductor 4/0AWG ACSR Overhead Bare Conductor
Product Details
| Place of Origin | Henan, China | Brand Name | Zhenzhou hongliang cable | |
| Model Number | ACAR | Insulation Material | Other, Bare | |
| Type | Other, AAC,AAAC,ACSR,ACAR | Application | Overhead | |
| Conductor Material | Other, Aluminium,Aluminium alloy | Jacket | Other, bare |
Product Description
Item name: 16mm2 Aluminum conductor Aluminum Alloy Reinforced ACAR conductor .
1. Application of ACAR conductor :
Aluminum Conductor Alloy Reinforced (ACAR)
cable is an excellent conductor choice where current
carrying capacity, higher stre
2. Material Standard of ACAR conductor :
AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors can be produced fully in accordance with international standard such as IEC,BS,ASTM,DIN,JIS,NF,CSA,AS/NZS.
1.aluminum alloy core ACAR conductor
2.aluminum conductor
3.aluminum alloy core
4.free sample
5.quality product
3. Executive standard :
Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core. The number of wires of each one depends on the cable design.
In some cable constructions the wires of Aluminium Alloy 6201 can be distributed in layers throughout the Aluminium 1350-H19.
Your special requirement is also OK for us.
IEC61089
Code number(mm2) | Diameter(mm) | Number of wires | Area(Mmm2) | Linear mass(kg/km) | Rated strength(kN) | Max.D.C.resistance at 20 degree | |||
Wire | cond | Al | Alloy | Al | Alloy | ||||
16 | 1.76 | 5.28 | 4 | 3 | 9.73 | 7.3 | 46.6 | 3.85 | 1.7896 |
25 | 2.2 | 6.6 | 4 | 3 | 15.2 | 11.4 | 72.8 | 5.93 | 1.1453 |
40 | 2.78 | 8.35 | 4 | 3 | 24.3 | 18.3 | 116.5 | 9.25 | 0.7158 |
63 | 3.49 | 10.5 | 4 | 3 | 38.3 | 28.7 | 183.5 | 14.38 | 0.4545 |
100 | 4.4 | 13.2 | 12 | 3 | 60.8 | 45.6 | 291.2 | 22.52 | 0.2863 |
125 | 2.97 | 14.9 | 12 | 7 | 83.3 | 48.6 | 362.7 | 27.79 | 0.2302 |
160 | 3.36 | 16.8 | 12 | 7 | 107 | 62.2 | 464.2 | 35.04 | 0.1798 |
200 | 3.76 | 18.8 | 12 | 7 | 133 | 77.8 | 580.3 | 43.13 | 0.1439 |
250 | 4.21 | 21 | 18 | 7 | 167 | 97.2 | 725.3 | 53.92 | 0.1151 |
250 | 3.04 | 21.3 | 30 | 19 | 131 | 138 | 742.2 | 60.39 | 0.1154 |
315 | 3.34 | 23.4 | 18 | 7 | 263 | 61.3 | 892.6 | 60.52 | 0.0916 |
315 | 3.42 | 23.9 | 30 | 19 | 165 | 174 | 935.1 | 76.09 | 0.0916 |
400 | 3.76 | 26.3 | 18 | 7 | 334 | 77.8 | 1133.5 | 75.19 | 0.0721 |
400 | 3.76 | 27 | 30 | 19 | 210 | 221 | 1187.5 | 95.58 | 0.0721 |
4. Picture show ACAR conductor :

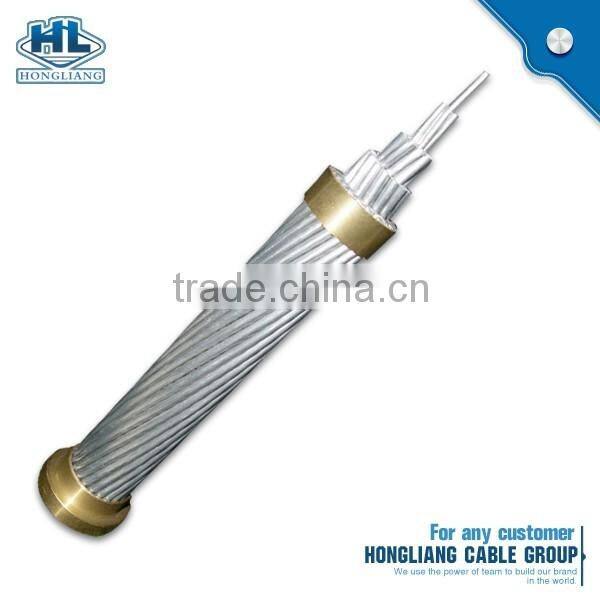

16mm2 Aluminum conductor Aluminum Alloy Reinforced ACAR conductor .

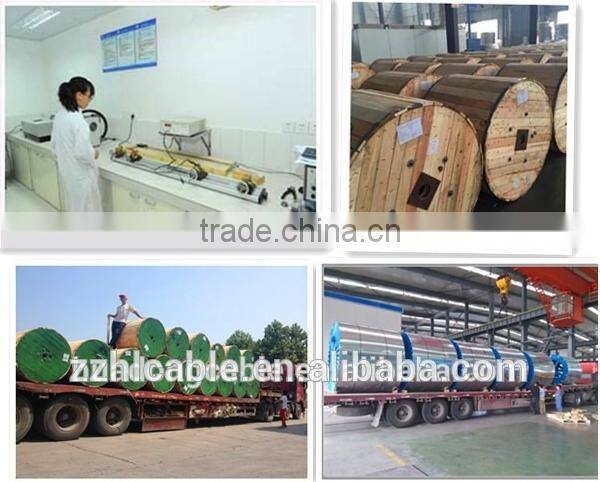

In coils, wooden drums, steel drums or steel-wooden drums for ACAR darien conductor .

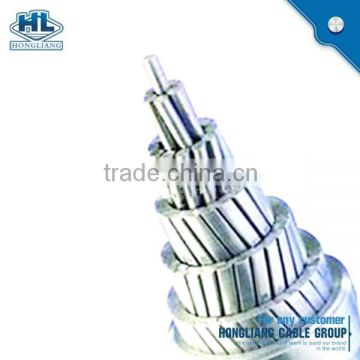

16mm2 Aluminum conductor Aluminum Alloy Reinforced ACAR conductor .
Henan Huadong Cable Group is a joint stock enterprise that integrated in cable production, research & development,and domestic & international trade in China.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable?Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
We are adhering high quality and best service to make our HUADONG CABLE be famous all over the world. Thanks for your supporting and trusting! HUADONG CABLES welcomes your inquiry and visiting,we are at your service !

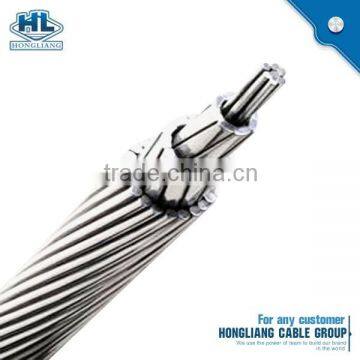

16mm2 Aluminum conductor Aluminum Alloy Reinforced ACAR conductor .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.

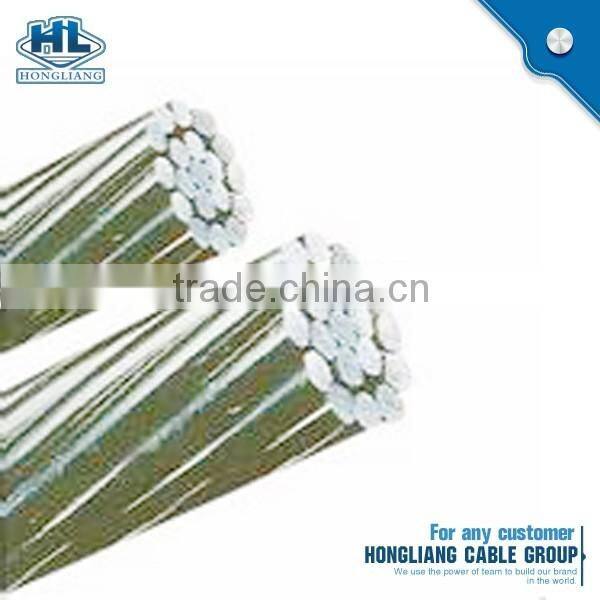

16mm2 Aluminum conductor Aluminum Alloy Reinforced ACAR conductor .
