Aerial Twisted Aluminum ABC Cable 100mm2
- Qingdao Shanghai Tianjin China ABC Cable
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Five Core 600/1000V 35 mm2 Insulated Twisted Cable NFC Standard ABC CABLE
-
BS standard 0.6/1kV 2/3/4/5 cores twist conductor XLPE insulation aerial bundle cable abc cable
-
ACSR Conductor XLPE Insulated 1kV low voltage Aerial Bundled Cable ABC cable
-
ABC Cable Aerial Bundled Cable, 0.6/1 kV (NF C 33-209)
-
ABC 3x35+54.6 aerial bundle cable ABC cable
-
600/1000V Aluminum conductor PE/XLPE insulated overhead ABC cable
Product Details
| Place of Origin | Henan, China | Brand Name | Zhenzhou hongliang cable | |
| Model Number | ABC Cable | Insulation Material | Other, PE XLPE PVC | |
| Type | Other, ABC cable | Application | Overhead | |
| Conductor Material | Other, Aluminium |
Product Description
Item name: Aerial Twisted Aluminum ABC Cable 100mm2 .
1. Application of Aerial Twisted Aluminum ABC Cable 100mm2 :
It is extensively used in overhead electric power transmission and distribution lines, especially in rebuilding of urban and forest region electrified wire netting. This cable improves safety and reliance of electrified wire netting.

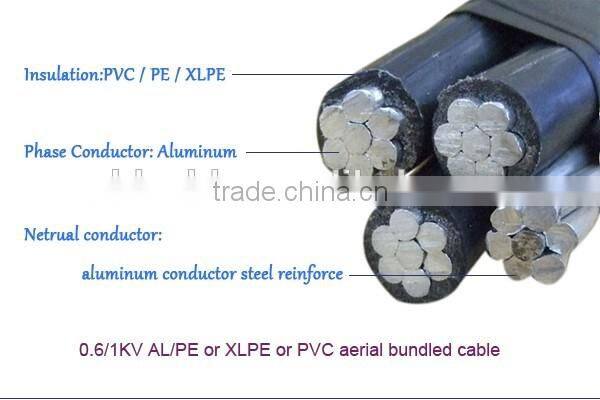

2. Material Standard of Aerial Twisted Aluminum ABC Cable 100mm2 :
Phase Conductor: Aluminium
Neutral Non-messenger Conductor: Aluminium
Neutral Messenger Conductor: Aluminium Alloy
Street Lighting Conductor: Aluminium
Insulation: XLPE or PE or PVC(weathering resistance)
3. Executive standard :
We can supply this cable according to different recognized standards, such as NF C33-209, BS 7870-5, GB/T 12527, IEC 60502 , customer's special specification also can be satisfied.
SPEC mm2 | Conductor structure | Insulation Material | Insulation Thickness (mm) | Approx overall diameter (mm) | Approx weight (kg/km) | |
Phase (compacted Al) | Neutral (alloy) | |||||
No./mm | No./mm | |||||
1*16+1*16 | 7/1.72 | 7/1.72 | XLPE
(HDPE) | 1.2 | 12.5 | 110.1 |
1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | |
1*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229.0 | |
1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | |
1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | |
1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | |
2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | |
2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | |
2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | |
2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | |
2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | |
2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | |
3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | |
3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | |
3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | |
3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | |
3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | |
3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | |

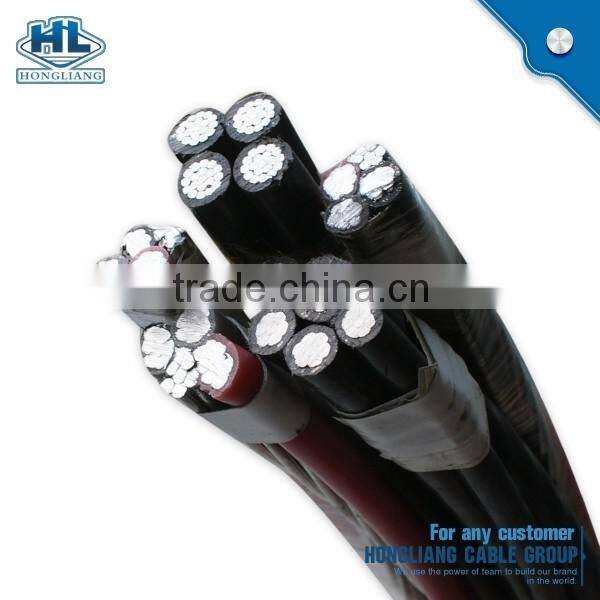

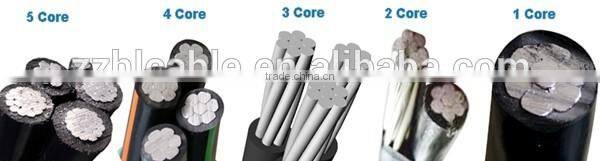

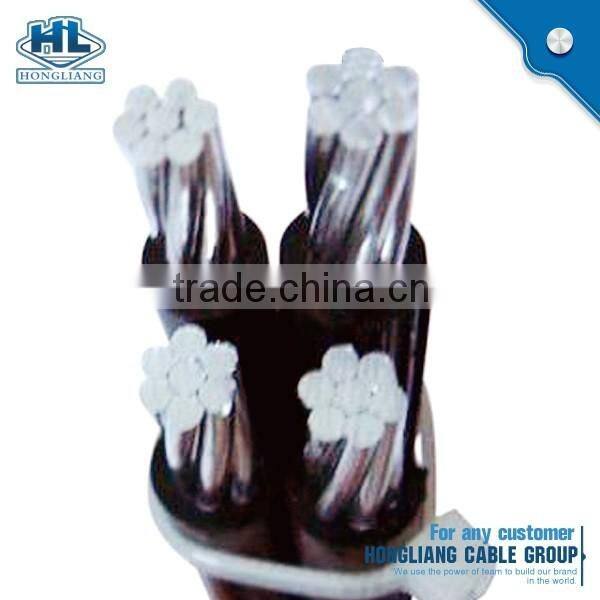

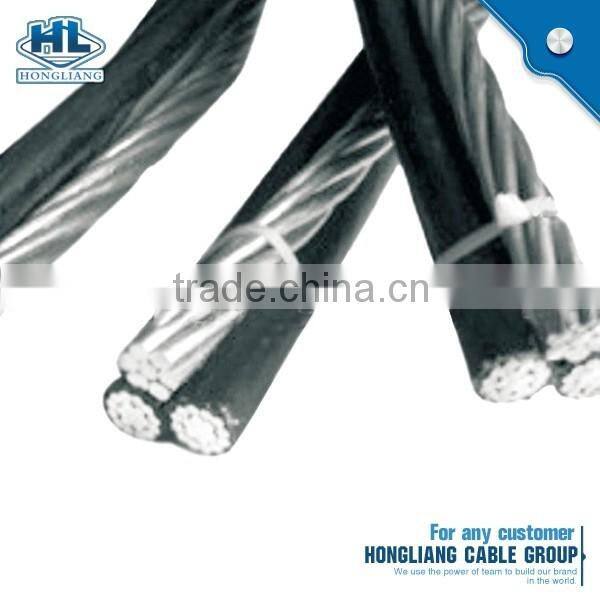

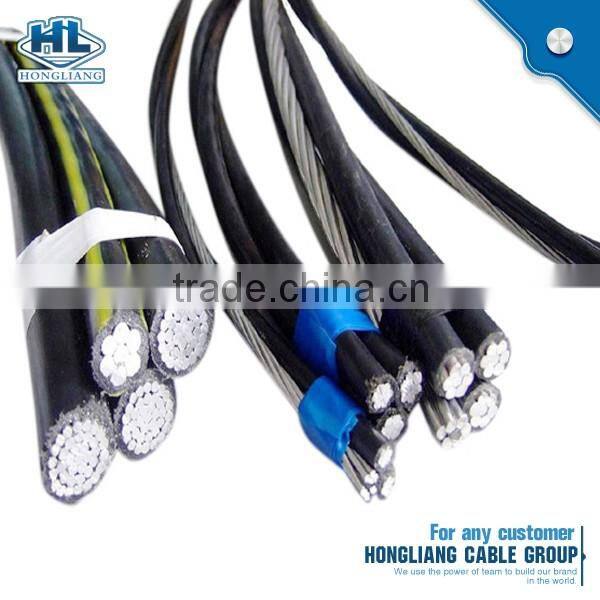

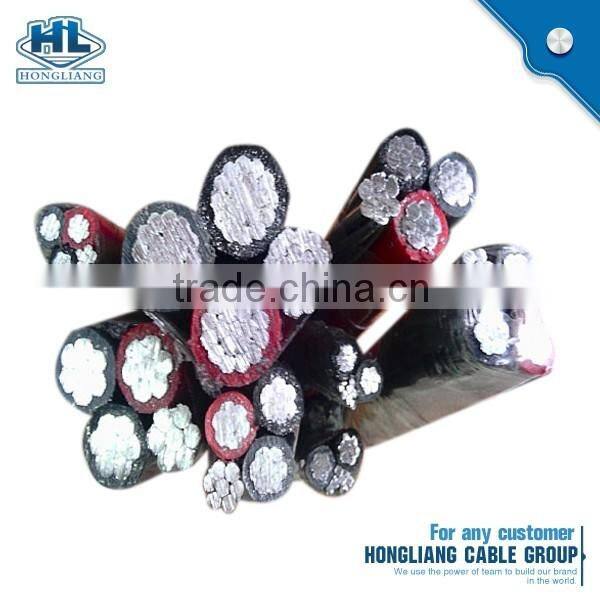

4. Picture show abc cable :
Aerial Twisted Aluminum ABC Cable 100mm2 .

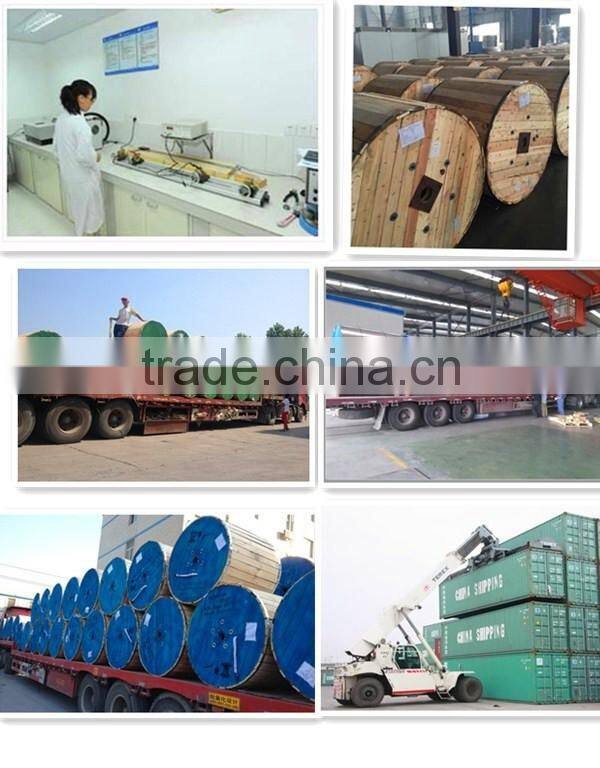

1.Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.

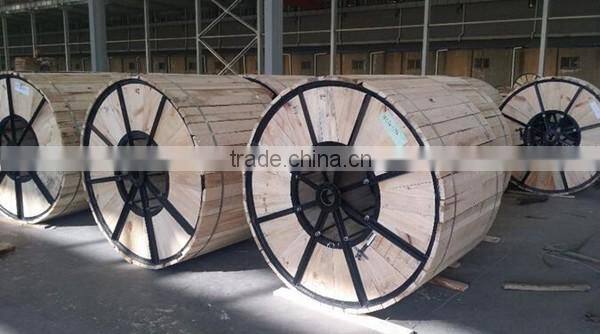

2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request.
Aerial Twisted Aluminum ABC Cable 100mm2 .

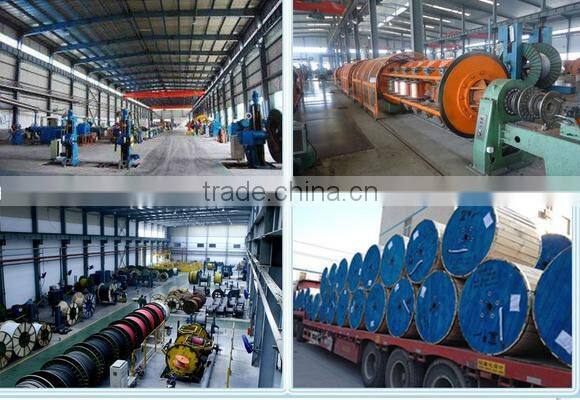

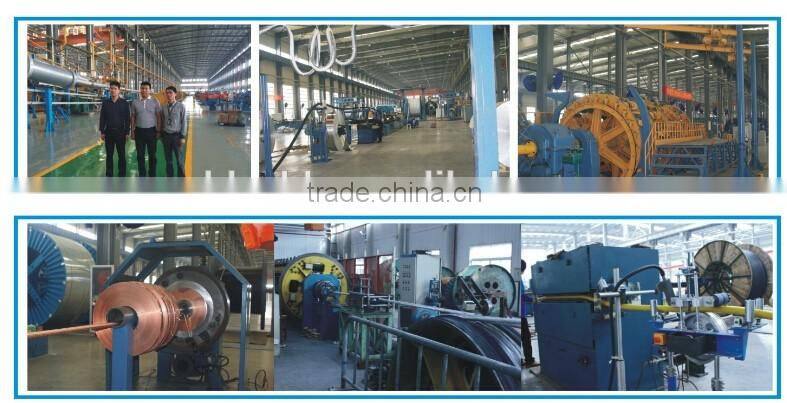

Hongliang Cable Co., Ltd.
Established Year: 1988
Registered capital of RMB:180,000,000
Total assets : 28.7millions
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 450
Main products:
Bare stranded conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);OPGW,0.6/1KV Aerial Bundled Cable (ABC Cable);Power cable,Electrical wire cable,Different voltages of XLPE insulated cables, Armored cables, Control cables, Rubber insulated cables, PVC insulated wires and cables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.
Aerial Twisted Aluminum ABC Cable 100mm2 .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
Aerial Twisted Aluminum ABC Cable 100mm2 .
