Home > Products > ABC cable > Zhengzhou Hongliang XLPE Insulated Aerial Bundled Cables 6.35/11,12.7/22,19/33kV Thermocouple Abc Cable Wires

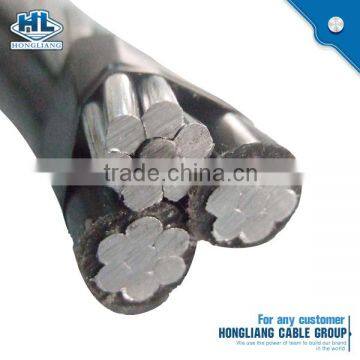

Zhengzhou Hongliang XLPE Insulated Aerial Bundled Cables 6.35/11,12.7/22,19/33kV Thermocouple Abc Cable Wires
- Tianjing/Qingdao/Shanghai abc cable wires
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
11kv 33kv Overhead Power Transmission Line Cable 3X35+54.6+16 AAC/AAAC/ACSR Service Drop ABC Cable
-
Low Voltage ABC Cable Size 2/3/4 Cores ABC Cable Overhead Aerial Bundle Cable
-
High Quality Zhengzhou Hongliang 0.6/1KV TORSADE BT 3X35+54.6+16 ABC Cable
-
0.6KV 1KV to 36KV PVC XLPE PVC Electric Power Cable Areial ABC AAC ACSR Conductor Concentric Solid Aluminum Clam ABC Cable
-
NFC 33-209 54.6mm2 ABC Cable Overhead Line Aerial Insulated Cable Abc Cable
-
AAC/AAAC/ACSR/XLPE or PVC Aerial Bunded Cable 25mm 35mm 50mm 70mm ABC Cable
Product Details
| Place of Origin | China | Brand Name | zhengzhou hongliang abc cable wires | |
| Model Number | abc cable wires | Insulation Material | XLPE | |
| Type | Low Voltage | Application | Power Station | |
| Conductor Material | Aluminum | Jacket | PVC |
Product Description
zhengzhou hongliang XLPE Insulated Aerial Bundled Cables 6.35/11,12.7/22,19/33kV thermocouple abc cable wires .
SPEC mm2 | Conductor structure | Insulation Material | Insulation Thickness (mm) | Approx overall diameter (mm) | Approx weight (kg/km) | |
Phase (compacted Al) | Neutral (alloy) | |||||
No./mm | No./mm | |||||
1*16+1*16 | 7/1.72 | 7/1.72 | XLPE
(HDPE) | 1.2 | 12.5 | 110.1 |
1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | |
1*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229.0 | |
1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | |
1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | |
1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | |
2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | |
2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | |
2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | |
2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | |
2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | |
2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | |
3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | |
3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | |
3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | |
3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | |
3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | |
3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | |
zhengzhou hongliang XLPE Insulated Aerial Bundled Cables 6.35/11,12.7/22,19/33kV thermocouple abc cable wires .
Henan Huadong Cable Co., Ltd Established in 2005, Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic & international trade.Our main products consist of power cables, bare conductors, aerial bundled cables,
control cables, welding cables, rubber cables, special cables and electrical wires. Our products are produced according to the standards of
GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
Packaging & Shipping
zhengzhou hongliang XLPE Insulated Aerial Bundled Cables 6.35/11,12.7/22,19/33kV thermocouple abc cable wires .
packed in wooden drums or steel-wooden drums or as your request.
zhengzhou hongliang XLPE Insulated Aerial Bundled Cables 6.35/11,12.7/22,19/33kV thermocouple abc cable wires .
The Following items for your reference :
1. Payment Terms : T/T 30% Deposit,then the balance before delivery or L/C at sight .
2.Delivery Time : 15-35Days once the order was confirmed .
3.Production Standard depend on customer requested, otherwise according to IEC, NFC standard .
4.Before production, the technical data will be clarified with customer in case of any error.
5.Trading Terms :FOB Qingdao, Shanghai, Tianjin or CIF ,CNF are available.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,
installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,
If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton,We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from
our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and
take charge in all expenses of reinstallation.
zhengzhou hongliang XLPE Insulated Aerial Bundled Cables 6.35/11,12.7/22,19/33kV thermocouple abc cable wires .
