4002 Lcd 40x2 LCD Character Display
Negotiable
/ Piece
100 Pieces(Min. Order)
- HongKongSAR
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ali Supplier 160x160 FSTN Lcd Module Small LCD Display
-
Small Lcd COG Lcd Display 160x160 Lcd Module in Stock
-
160x160 FSTN LCD Display White LED Backlight COG Lcd Type
-
COG LCD 160x160 FSTN LCD With White LED Backlight
-
FSTN LCD COG LCD 160x160 Lcd Display Lcd Module
-
COG LCD 160x160 FSTN Lcd Module Small LCD Display
Product Details
| Place of Origin | Guangdong, China | Brand Name | sunfly | |
| Model Number | YXM4002 | Type | Character |
Product Description

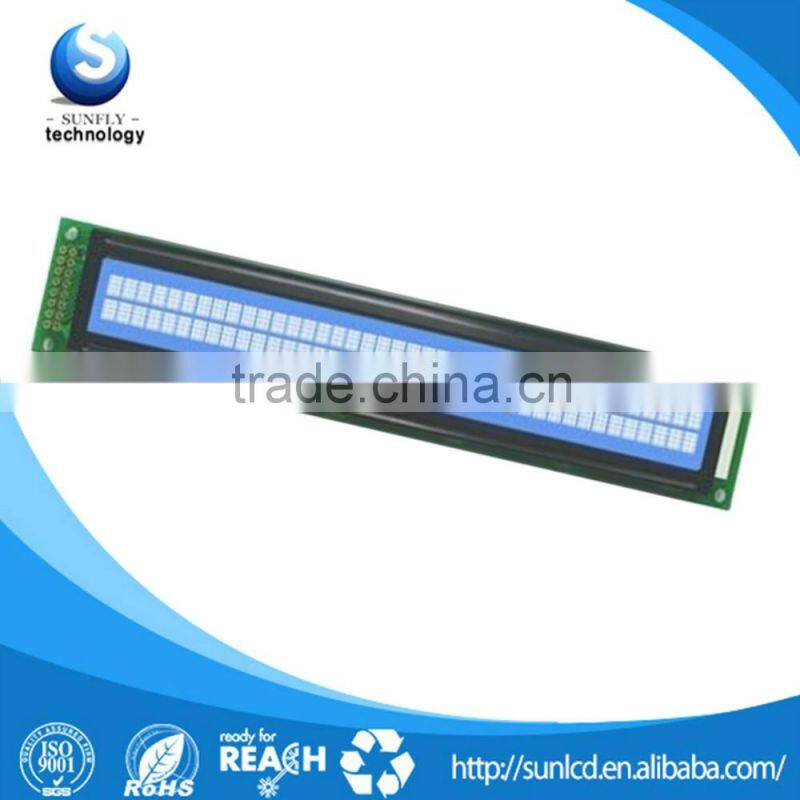

4002 lcd 40x2 LCD Character display
| Connection | Pin Header |
|---|---|
| Display Format | 40x2 Character |
| Sunlight Readable | Yes |
| LCD type | Blue back ground White Characters |

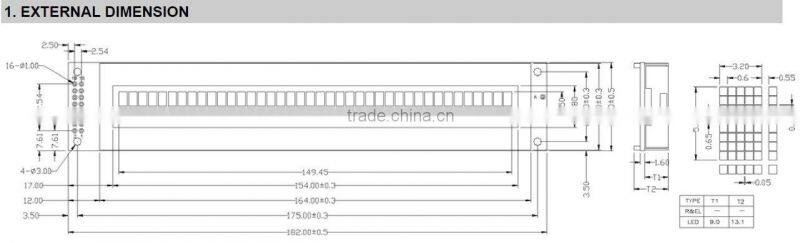

| Outline Dimension | 182.00(W)x33.5(H)x13.6(T)mm |
| Visual Area | 152.30x16.70mm |
| Active Area | 147.50(W)x11.50(H)mm |
| Character Size | 3.20x5.55mm |
| Diagonal Size | No |
| Dot (Pixel) Size | 0.60x0.65mm |
| Dot Pitch | 0.65x0.70mm |
| IC Package | COB |
| IC or Equivalent | AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |
| Interface | 6800 4-bit Parallel , 6800 8-bit Parallel |
| Display Type | STN-LCD Blue negative |
| Colors | No |
| Viewing Direction | 6:00 |
| Viewing Angle Range | No |
| Appearance | Dark Blue |
| Brightness(Typ) | No |
| Backlight Color | white Color |
| Backlight Current (Typ) | 30mA |
| Power Supply(Typ) | 5V |
| Supply Current for LCM(Max) | 2200uA |
| Operating Temp | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
Other main products: Graphic lcd Module, Character lcd Module, Custom lcd Module, TFT lcd Module;
