7 Stations Drum PU Foaming Machine
- Nanjing China
- T/T
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | kinte | |
| Model Number | kn01001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

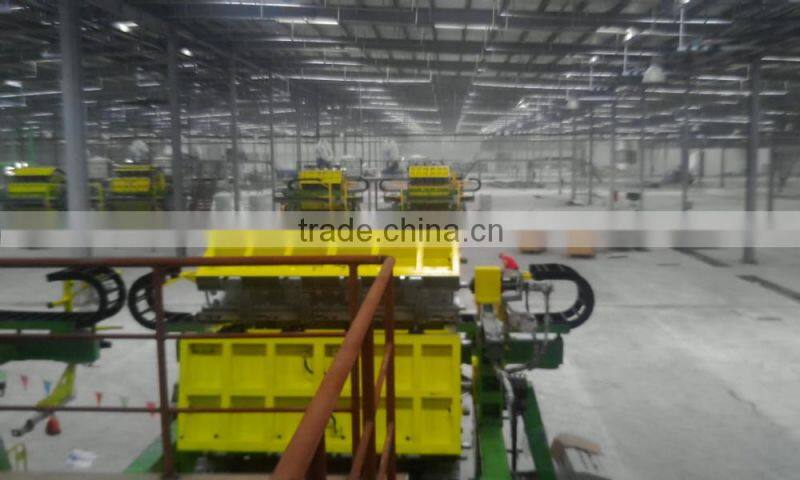

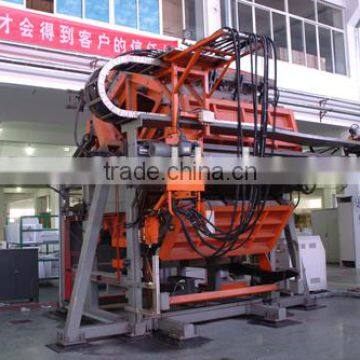

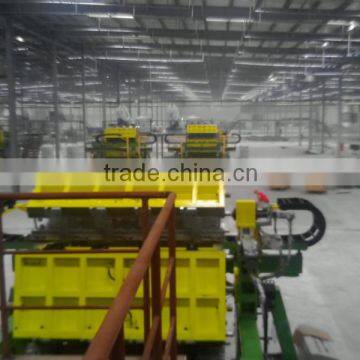

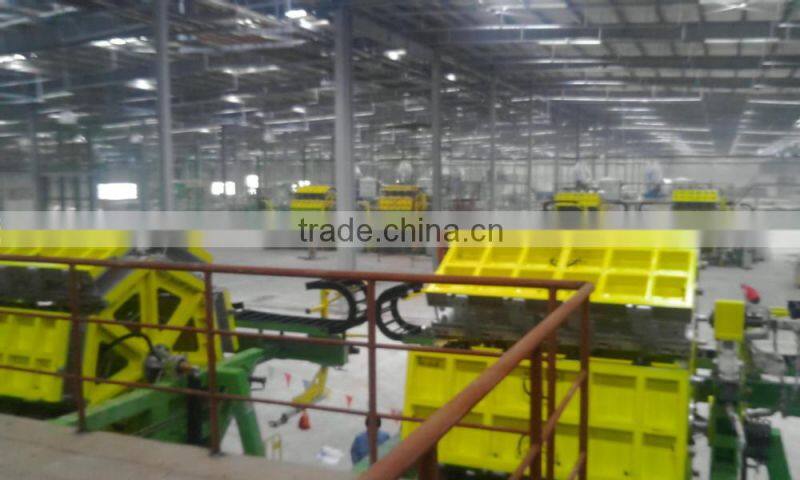

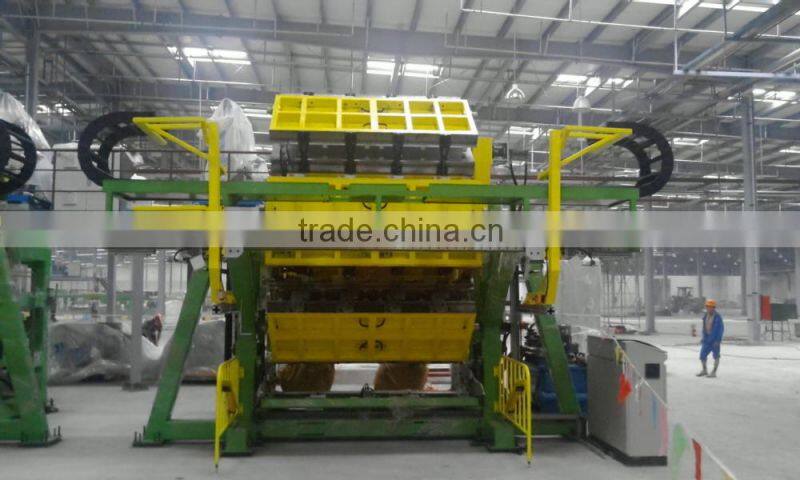

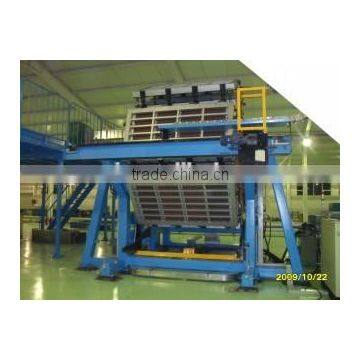

This rotary drum type with 7(8) fixture line is mainly for door foaming and consists of body frame, rotating frame, foaming frame, hydraulic driven, orientation, mold opening and closing unit, injection unit, species identification unit, hydraulic unit, electric control unit and etc.
Working procedure: loading manually, auto-injection, cylinder closing, cylinder clamping, curing, cylinder opening, mold opening while lower mold reach the initial position, unloading manually and etc.
The mold mounting plates are heated by water. Mould can be changed easily. The foaming line can be applied to the products with different dimensions. Compact structure, high efficiency, various compatibility, etc.
| Main technical parameters: | Data | |
| 1 | Out Dimension: | ~6000×5500×4600mm(L×W×H) |
| 2 | Working stations: | 6~8 stations |
| 3 | Jig size: | 2000×900(L×W) |
| 4 | Mould close height: | 200mm |
| 5 | Cycle time: | 46s(not including the manual operation time) |
| 6 | Foaming medium: | POL +ISO |
| 7 | Injection mode: | Open injection automatically |
| 8 | Heating mode: | Water heating by mould temp controller |
| 9 | Power supply: | ~65KW(380V/50Hz) |
