Hand hold portable ultrasonic flowmeter with RS232 output

FOB Price

US$ 60 - 950 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	DAYU
Model Number	TDS-100H

Complete Set

Product details

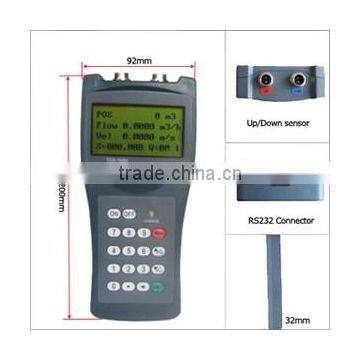

Hand hold portable ultrasonic flowmeter with RS232 output
Linearity	0.5%
Repeatability	0.2%
Accuracy	±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration
Response Time	0-999 seconds, user-configurable
Velocity	±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional
Pipe Size	0.5” ~ 240” (15 ~ 6,000mm)
Rate Units	Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.
Totaliser	7-digit totals for net, positive and negative flow
Liquid Types	Virtually all liquids
Security	Setup lockout. Access code needed for unlocking
Display	4x16 English letters
Communication Interface	RS-232C, baud-rate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.
Transducers	Model M1 for standard, other 3 models for optional
Transducer Cable	Standard 2x30’ (10m), optional 2x1,500’ (500m)
Power Supply	3 AAA Ni-H built-in batteries. When fully charged it will last over 10 hours of operation. 90-230VAC for the charger
Data Logger	Built-in data logger can store over 2,000 lines of data
Manual Totalizer	7-digit press-key-to-go totalizer for calibration
Housing Material	ABS. Aluminum alloy protective case
Case Size	3.9x2.6x0.8" (100x66x20mm)
Handset Weight	1.2 lbs (514g) with batteries

Clamp on Transducer

Installation
