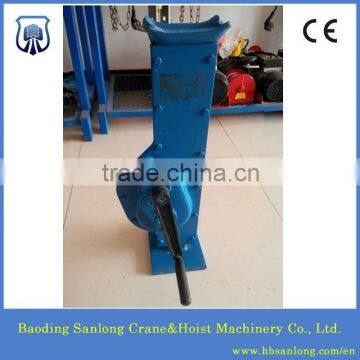

Mechanical Screw Jack, Used in Industrial Work

       Mechanical Screw Jack, Used in Industrial Work

1. Capacity scope: 3.2T,5T,8T,10T,16T,20T,25T,32T,50T,100T,200T
2.  Screw jack factory outlet


Type	Bearing	Jack-UP	Lowest	Handle	Handle	Net Weight
	Pressure(ton))	Height(mm)	Height(mm))	Length(mm)	Operating Strength(N)	(Approximately)kg
QL3.2	3.2	110	220	500	100	6
QL 5	5	130	250	600	160	8
QL 8	8	140	260	800	200	9.5
QL 10	10	150	280	800	250	11
QL 16	16	180	320	1000	500	17
QL 20	20	180	325	1000	500	19
QL 25	25	130	275	1000	600	19
QL 30	30	200	400	1300	600	28
QL 32	32	200	400	1300	600	28
QL 40	40	200	405	1300	620	30
QL 50	50	250	452	1500	800	54
QL 100	100	200	413	1500	600	85



Baoding sanlong crane & hoist Machinery Co., LTD. was founded in 2007, with registered 10 million RMB. And we have a big market all over the world, including Eurepo, America, South America, Austrilia, the middle East, Russsia and India.

Our products are chain block, lever hoist, non-sparking chain hoist, MD1/CD1 electric wire rope hoist, mini electric wire rope hoist, electric chain hoist, explosion-proof hoist, multifunctional motor hoist, hand winch, electric windlass, electric winch, jack, manual trolley, electric trolley, shackle and other rigging.

1. What information you should prodive us if you want quotation?
For chain block/ lever hoist, you should provide us capacity & chain length u need.
For electric hoist, you should confirm with the voltage , capacity & chain/ wire rope length with us.
2. Which payment method we can accept?
Generally, T/T , L/C is available for us.
3. How long will be our delivery time?
About 12-15 days after we get your advanced payment.
4. What is the transport way?
By sea/ by air/ by courier.
5. How about the sample policy?
We can accept sample order.But sample and express charge shoude be on customer's account.
6. What terms of shipment we can accept?
Generally, we accept EXW, FOB, C&F, CIF.
