Home > Products > Omni Antenna > AMEISON Fiberglass Antenna 2.4ghz High Gain Omni 20dbi Dipole Antenna
AMEISON Fiberglass Antenna 2.4ghz High Gain Omni 20dbi Dipole Antenna
- Shenzhen or HongKong
- T/T Credit Card PayPal
You May Like
-
AMEISON 806-960/1710-2690/1710-2690MHz 4dBi Dual Band Dual Polarized DAS MIMO Omni Indoor dc Ceiling Antenna
-
Antenna Manufacturer 5dBi UHF Fiberglass Omni Antenna 433MHz
-
Antenna Manufacturer 824-960/1710-2700MHz 2/3dBi White DAS/AWS/ GSM/CDMA/PCS/3G/WLAN/4G/LTE Omni Patch Antenna
-
Antenna Manufacturer 450MHz 5dBi UHF VHF Radio Omni Fiberglass Antenna
-
Antenna Manufacturer 2400-2483MHz 12dBi Wifi Fiberglass 2.4 Ghz Omni Directional Antenna
-
Antenna Manufacturer 1710-1880MHz 8dBi Fiberglass DCS AWS Outdoor Omni Antenna
Product Details
| Place of Origin | Guangdong, China | Brand Name | AMEISON | |
| Model Number | AMXF-2400-20 |
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Product Description
AMEISON Fiberglass Antenna 2.4ghz high gain omni 20dbi dipole antenna
AMXF-2400-20
Feature:
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability
Application:
2.4GHz WLAN system
Wi-Fi ISM system
Point-to-multipoint system
AMXF-2400-20 Electrical Specifications | |
Frequency range(MHz) | 2400~2483 |
Bandwidth(MHz) | 83 |
Gain(dBi) | 20 |
Half-power beam width(°) | H:360 V:5 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical, Linear |
Maximum input power(W) | 100 |
Lightning protection | DC Ground |
Input connector type | N Female or Requested |
Mechanical Specifications | |
Dimensions(mm) | Φ20*19200 |
Antenna weight(kg) | 0.95 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Radome color | Gray or White or others |
Radome Material | Fiberglass |
Waterproof Standard | IP65/ IP67 |
Mounting way | Wall/ Pole-holding |
Mounting hardware(mm) | 35 - 50 |

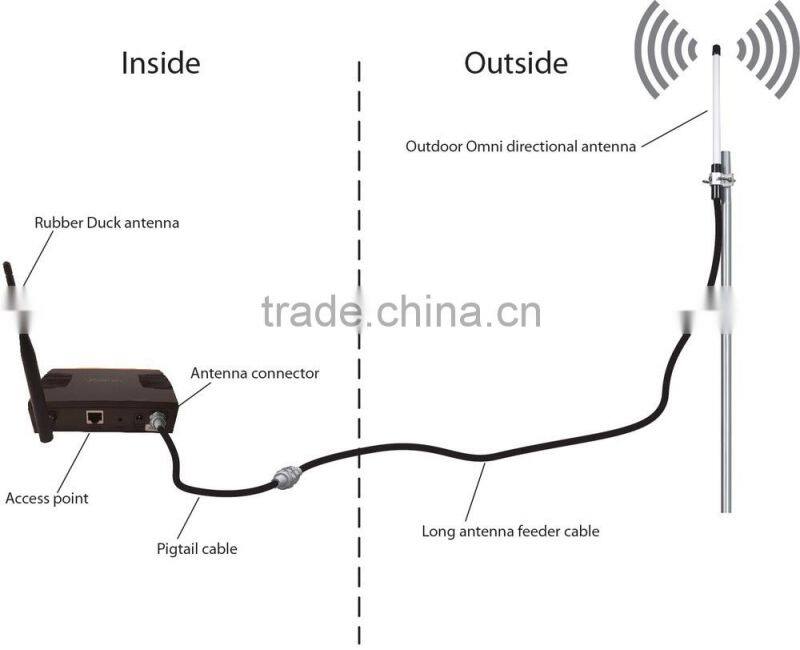

How do I choose the correct WiFi antenna?
The two main types of antennas are Omni-directional and directional.
Omni-directional antennas radiate RF signal in a 360 degree pattern and directional antennas emit the RF signal in a focused beam similar to the headlight of a car.
If your application is a point to point WiFi link like from one building to another you would use a Directional antenna.
If you need to send the WiFi signal 360 degrees then you would use and Omni directional antenna.

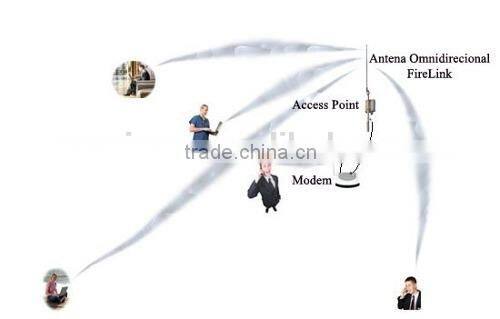

If you have a point to multi point application, such as a campus environment then you would use a combination of Omni directional and Directional antennas.
2.4 GHz Omni directional antennas are perfect for wide 360° coverage multi point applications.
These robust Omni directional antennas are designed for years of outdoor use.
The heavy-duty Wireless omnidirectional antennas are rugged and high performance.
These antennas feature a durable fiberglass all weather operation design and include a pole mounting bracket.
It is a very compact yet high performance omnidirectional WiFi antenna designed for the 2.4GHz ISM band.
It is ideally suited for multipoint and mobile applications where high gain and wide coverage is desired. Additional applications include IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth®, public wireless hotspot applications.
Rugged and Weatherproof
This antenna’s construction features a durable fiberglass radome for durability and aesthetics.
Its mounting system features a heavy-duty extruded aluminum bracket and stainless steel U-Bolt for superior strength.
Popular applications include: IEEE 802.11 a/b/g/n, WiFi, WiMax, Bluetooth, WLAN’s, WISP, public “hot spots” and more!
