Flexible Sprue Picker Robot Arm With Gripper
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Elevation Speed | 1.5 m/s | |
| Vertical Travel(mm) | 850 | Horizonal Travel(mm) | 120 (175) | |
| Application | Other, Pick and Place | Place of Origin | Guangdong, China | |
| Brand Name | BORUNTE | Model Number | BRP850WV | |
| Weight | 50 kg | Dimension(L*W*H) | 770*300*1250 mm | |
| Power(W) | 0.2 KVA | Certification | CE, SGS, TUV, ISO 9001:2008 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

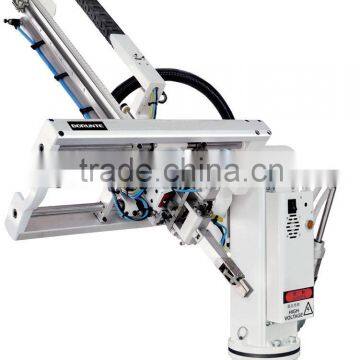

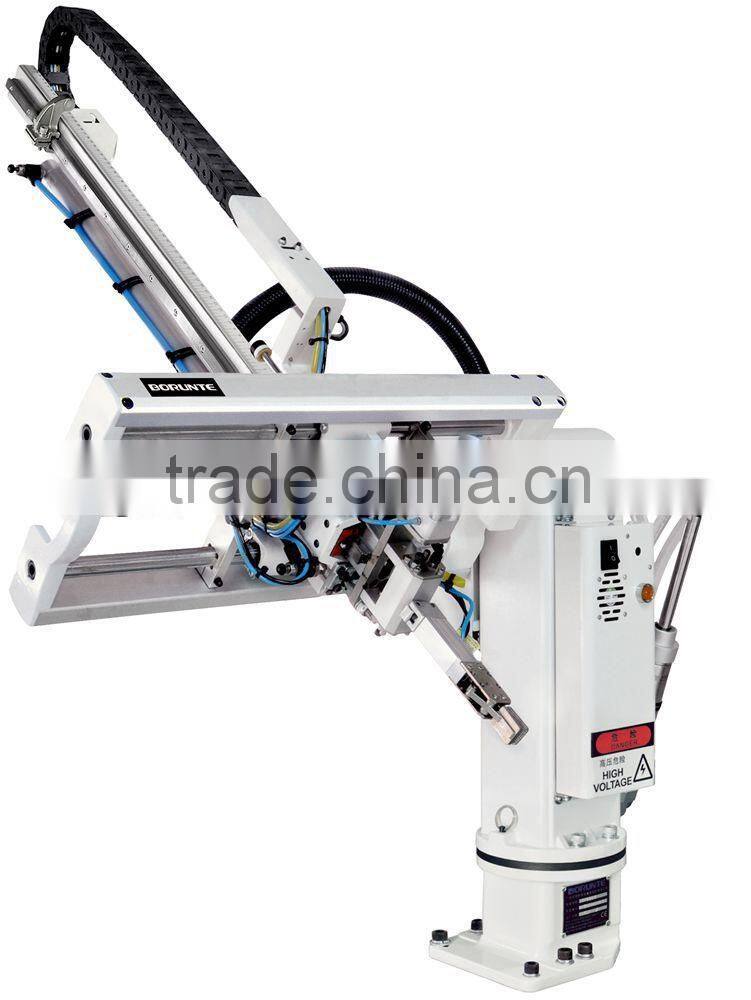

Flexible Sprue Picker Robot Arm with gripper
BRP series Swing-arm robot is applicable to all types of horizontal injection machine of 30-280T for take-out products and sprues. It has ranges of model BRP650V and BRP850WV, with two types of arms, single stage and telescopic type. The single function is to clamp products, and the full function is to take-out products and sprues. After installed this robot, the productivity will be increased 10-30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.
Specifications:
| Model | Recommended I.M.M (ton) | Vertical Stroke (mm) | Crosswise Stroke (mm) | Swing Angle (degree) | Dry Take Out Time (sec) | Max. Loading (kg) | Dry Cycle Time (sec) | Air Consumption (nl/cycle) | Net Weight (kg) |
| BRP650V | 30T-180T | 650 | 120 | 60-90 | 0.9 | 3 | 5.5 | 1.5 | 36/49 |
| BRP850WV | 150T-280T | 850 | 120 (175) | 60-90 | 1.1 | 3 | 6 | 2.0 | 50 |
Denote: W: Telescopic type
V: Arm with vacuum generator
( ): Optional function

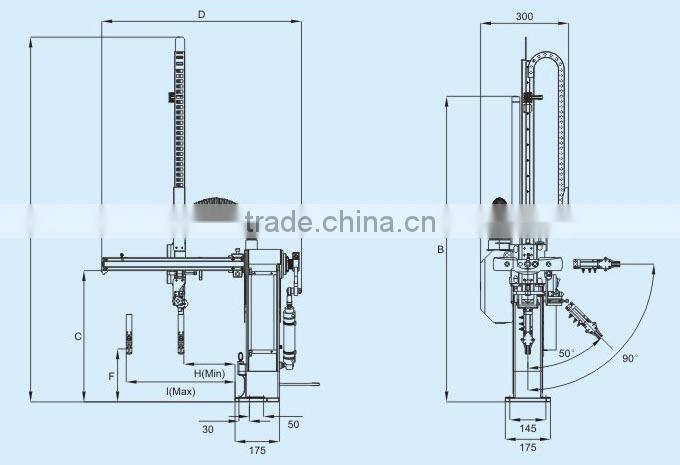

Outer Dimensions:
| Model | A | B | C | D | E | F | G | H | I | J | K |
| BRP650V | 1330 | 1220 | 540 | 770 | / | 210 | / | 50 | 440 | / | / |
| BRP850WV | 1250 | 1000 | 540 | 770 | / | 180 | / | 130 | 435 | / | / |

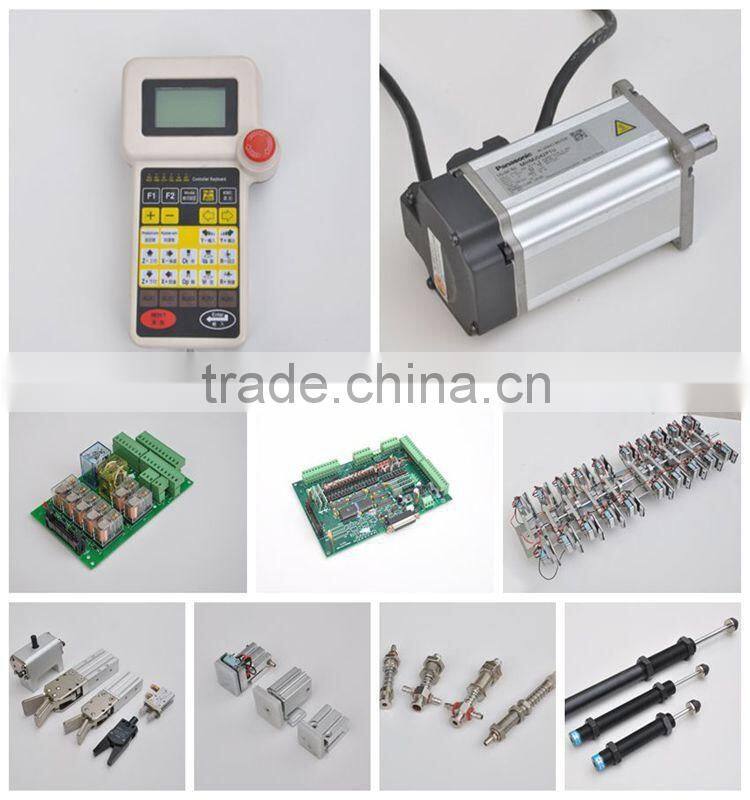

High Quality End of Arm Tooling Parts:

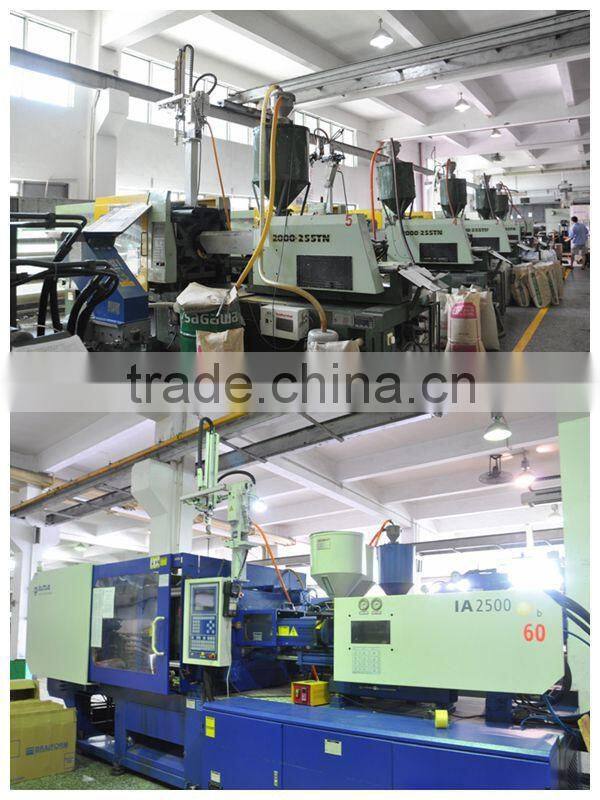

Customers Application Cases:
Packing: Wooden Case and Plastic Stretch Film
We have 4S stores in most of the provinces of China and our products have been sold to over 20 countries.

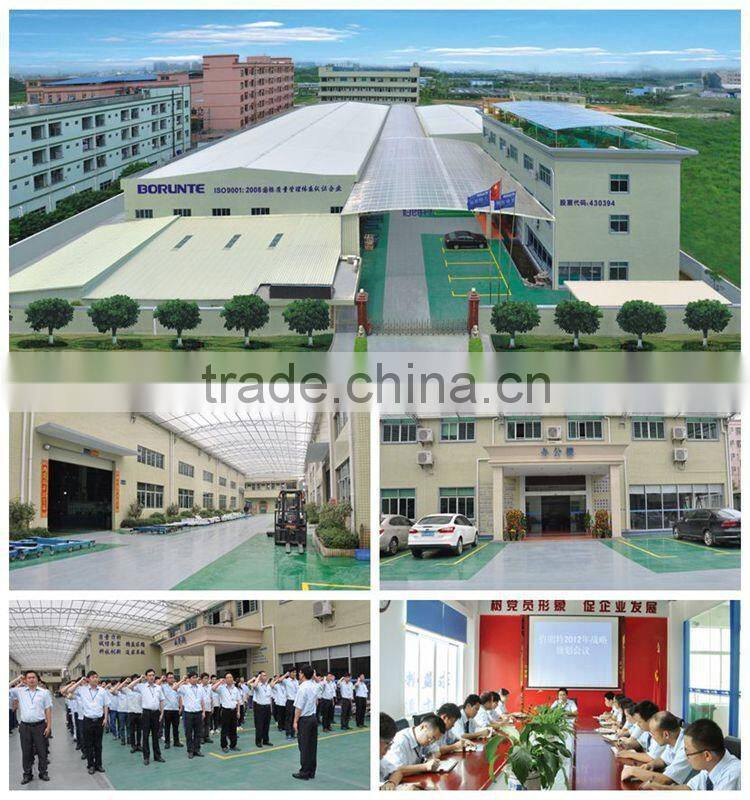

Our Factory:

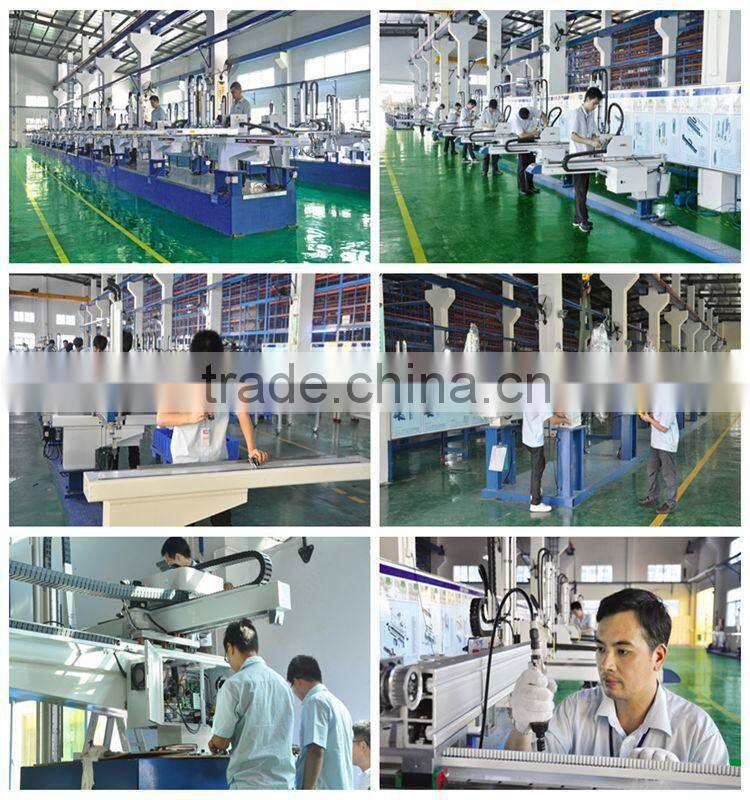

Assembly Workshop:

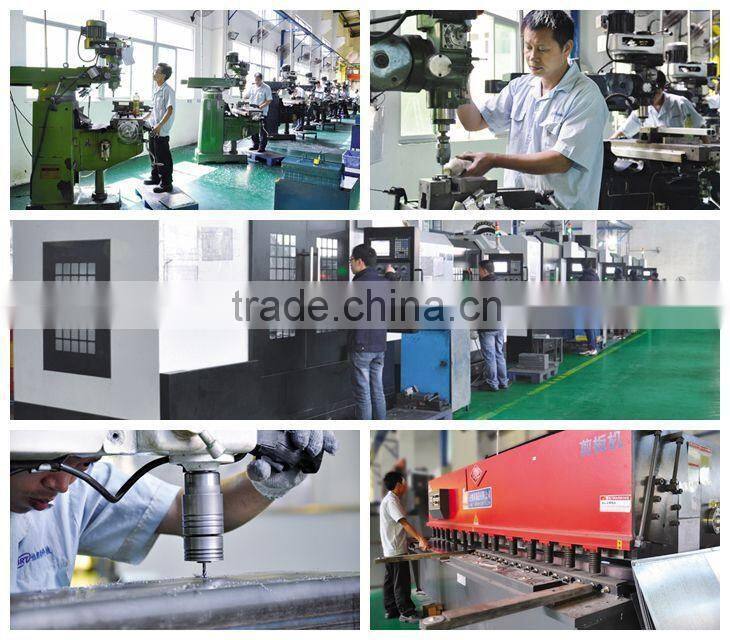

CNC Processing Center:
Warehouse:
2014 Chinaplas in Shanghai:
BORUNTE Robot School & BORUNTE Intelligent Equipment Institute:
CE, SGS, TUV, ISO Certifications:
(1) Are you a factory or a trading company?
We are manufacturer in Dongguan City, Guangdong, China.
(2) How to choose a sprue picker robot?
Step 1: Select crosswise stroke and vertical stroke according to the tonnage of your injection molding machine.
Step 2: Select single stage or telescopic type according to the height of your transporter crane.
(3) Do you have any certifications?
Yes, we have. All of our sprue picker robots are CE, SGS, TUV, ISO certificated.
(4) What's your product lead time?
Within 15 days after received payments.
(5) What's the warranty time?
One year.
Why Choose BORUNTE?
(1) The first listed intelligent equipment company in China.
(2) Over 10 years experience in the industry of sprue picker robot.
(3) CE, SGS, TUV, ISO 9001:2008 certificated.
(4) Over 400 skilled workers, QC department and R&D team to ensure the high quality and fast production.
(5) We are one of China's largest sprue picker robot manufacturers with the capacity to produce 7000 sprue picker robots a year. Our sales increased over 40% in 2014.
(6) Only 1 hour reach HK port or Shenzhen port, convenient for shipment.
Contact Person:
Mr. Jimmy Xie
Skype: jimmyxie1307
WeChat: jimmyxie2014
Trade Manager ID: cn1501612647
Mobile: 0086-13712081307
