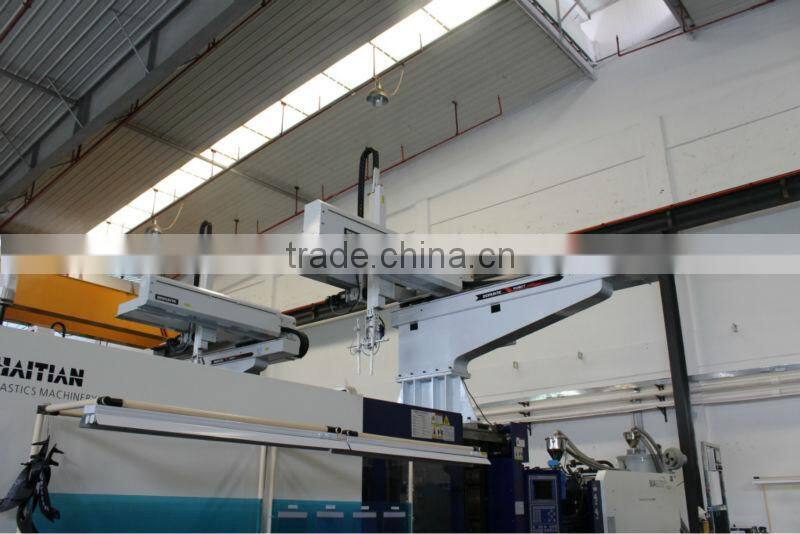

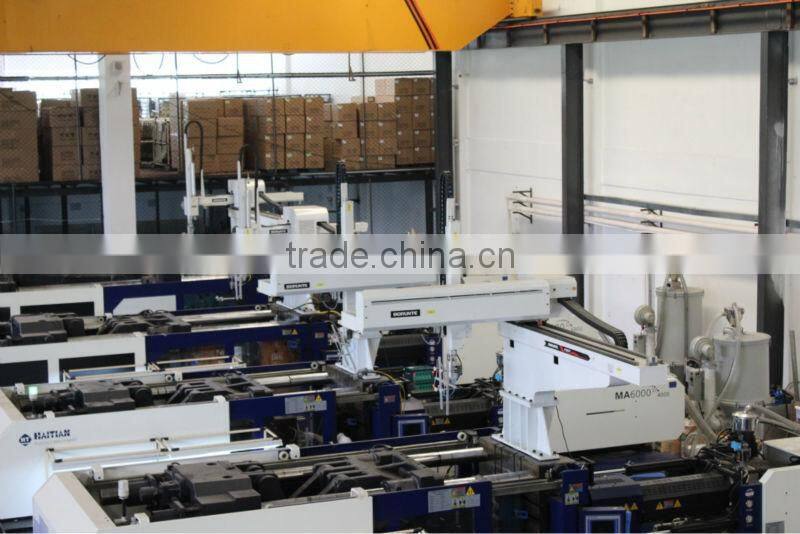

Industrial Manipulator Arm For Injection Molding Machine

Model

BRC1400WSA-S2

BRC1800WSA-S2

BRC2200WSA-S2

Power Source(KVA)

1.9

Recommended I.M.M(ton)

650-1000

1000-1600

1600-2200

Traverse Stroke(mm)

2200

2700

3000

Traverse Driven

AC Servo Motor

Crosswise Stroke(mm)

1400

1600

1800

Vertical Stroke(mm)

1400

1800

2200

Max.Loading(kg)

15

20

35

Dry Take Out Time(sec)

1.5

1.8

2

Dry Cycle Time(sec)

12

14

16

Air Consumption(Nl/cycle)

70

80

90

Net Weight(kg)

500-580

1500-1800

2100-2600

        ***   Knowledge for Robot Selection   ***

Step 1: Selection on the tonnage of injection molding machine

Below 100 Ton:

BRP650V

BRB600IDY

100~200 Ton:

BRB700IDY

BRA700WDY

BRB800IS-S2

BRR600ID-S3/S5

200~280Ton

BRA900WDY

BRR800ID-S3/S5

200~450Ton

BRB1000WDY

BRB1000WD-S2

BRR1000WD-S3/S5

450~650Ton

BRB1200WDY

BRB1200WD-S2

BRR1200WD-S3/S5

650~1000Ton

BRC1400WDAGY

BRC1400WDAG-S2

BRC1400WD-S3/S5

BRTN1400WS-S3

1000~1600Ton

BRC1800WDAG-S2

BRC1800WD-S3/S5

BRTNWD1800WD-S3

1600~2200Ton

BRC1800WSA-S2

BRC2200WD-S3/S5

BRTN2200WS-S3

2200~3000Ton

BRTN2600WS-S3

3000~4000Ton

BRTN3000WS-S3

Step 2: Selection of Swing-arm Robot or Traversing Robot Arm

(1). Below 150Ton of IMM, for two plate molding or runner take-out only, select swing-arm

robot.

(2) .Above 150Ton, select traversing double-arm robot.

Step 3:Double-arm or Single-arm Selection

(1).Most products are from three-plate mold, Double-arm Robot is the best selection for the

OEM enterprise.

(2).Hot-runner mold product, with stable production order, Single-arm robot is a good choice.

Step Four: Selection of Telescopic Arm or Single Stage Arm

(1).Below 200Ton,we suggest single stage arm, for its short Vertical stroke(700mm)

(2).Above 200Ton, select telescopic arm.

(3).Shop traveler and factory with a low height must choose telescopic arm.

Step Five: Selection of Two-axis, Three-axis and Five-axis AC Servo Driven Robot Arm.

A. Two-axis AC Servo: Traverse-axis and vertical-axis is driven by AC Servo motor.

Advantage One:

Traverse-axis driven by AC Servo motor, precise position, short circle time, remote adjustment,

convenient and fast. Products can be placed in multiple-point equip with the belt conveyor.

Advantage Two:

(1).Vertical-arm driven by AC Servo motor, precise vertical traveling, stable products sucking,

and less alarm.

(2).Remote adjustment of vertical-axis, save the time for EOAT adjustment.

(3).Vertical-axis driven by AC Servo motor, product take-out time is quicker than Cylinder driven.

Save the circle time and the productivity can be increased more than 10%.

(4).It is cheaper than three-axis and five-axis robot arm.

B. Three-axis and five-axis all AC Servo robot arm

(1).All-axis AC Servo driven robot arm, with fast speed and short time for EOAT adjustment.

(2).With the function of mold labeling and mold inserting.

(3).The price is higher.
