PE Jaw Crusher Mini European Style High Performance Rock Crusher

FOB Price

USD $1,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Standard container Nude in bulk As your need
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Jaw Crusher
Application	Hard and strong stones and rocks, Widely used	Motor Type	AC Motor
Power(W)	15-45KW	Capacity(t/h)	10-85 t/h
Place of Origin	Henan, China	Brand Name	Baichy
Model Number	PE	Dimension(LWH)	Max162822701651
Weight	Refer to models	Certification	CE&ISO
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

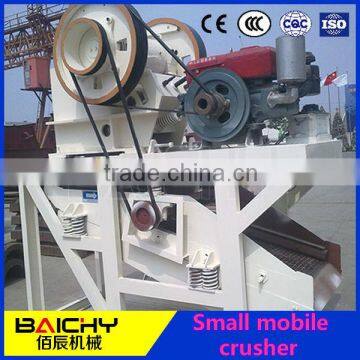

Small Jaw Crusher

Jaw crusher has the features of high crushing ratio, even granule, simple structure, easy maintenance, etc. It is widely used in mining, metallurgy, building materials, highway, railway, department of water conservancy and chemical industry and so on. The highest compressive resistance of the crushed materials is 320Mpa.

Motor drivesv-belt and belt pulley to make moving jaw do periodic motion by eccentric shaft. Moving jaw moves upwards to the fixed jaw when angle between toggle plate and moving jaw increases, so materials are crushed in this process. Moving jaw moves downwards from fixed jaw by pulling rod and spring when angle between toggle plate and moving jaw decreases, so the final crushed materials are discharged from the outlet. The moving jaw moves periodically according to the eccentric shaft movement, and the materials entering the crushing chamber are crushed and discharged continually.

Model	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Discharging Opening Size(mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
PE150××250	150×250	130	15-45	1-4	5.5	896×745×935
PE250×300	250×300	150	15-55	3-6	7.5	1050×987×1000
PE250×400	250×400	210	25-60	5-20	15	1215×1520×1030
PE400×600	400×600	350	40-90	15-60	30	1650×1588×1050
PE500×750	500×750	425	50-100	40-110	45	1956×1918×1920
PE600×900	600×900	500	60-125	90-180	55	2250×2733×2280
PE800×900	800×900	600	80-140	100-220	75	2450×2950×2490
PE750×1060	750×1060	630	60-150	110-380	110	2531×2455×2783
PE900×1060	900×1060	700	100-160	180-380	110	2900×2657×2950
PE900×1200	900×1200	750	110-165	220-450	132	3100×2760×3260
PE1200×1500	1200×1500	950	115-195	250-500	220	3710×3446×4075
PE1500×1800	1500×1800	1200	135-225	350-700	280	5100×4700×4300
PEX150×750	150×750	120	10-40	5-16	15	1310×1118×1145
PEX250×750	250×750	210	15-50	15-30	22	1440×1751×1515
PEX350×750	350×750	300	15-50	18-40	30	1485×1680×1648
PEX250×1000	250×1000	210	15-60	15-60	30	1550×1964×1380
PEX250×1200	250×1200	210	15-60	20-60	37	1530×1946×1380
PEX300×1300	250×1300	250	25-60	10-65	55	2000×2320×1730
PEX400×1200	300×1300	350	10-19	30-80	45	1628×2270×1651
