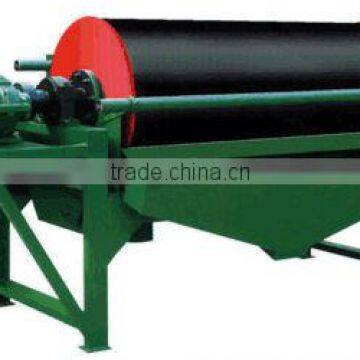

Hot Sale Magnetic Separator From Baichy

Specifications

Hot Sale Magnetic Separator From Baichy

1.Specifications:

1.double-row self-adjustable ball journal bearing
2.bi-laminar drum sheet design
3.Design stress magnetic field intensity

2.Features:

The Magnetic Separator can separate raw materials with different magnetic rigidities. The wet machine works under the magnetic force and machine force.

1. special magnetic for mining industry

2. the most advanced magnetic system design in mining industry

3. closed magnetic system to keep no magnetic block drop out

4. double-row self-adjustable ball journal bearing to keep maintain easy

5. stainless cell body and wear resistant coatings

6. low running cost

: combined magnetic field intensity and magnetic field strength

3.Structure

High Gradient Magnetic System: 850/1000gauss, 850/1150 are available

Cylinder: 304 stainless steel drum sheet to improve wear-resistant effect and working life

                high strength stainless flange design and bi-laminar drum sheet design

Driven System: IP55 driving motor

Cell Body: level counter –current cell body: available to roughing operation

Level Semi-counterblow cell body: used for selected assignment

4. Advantages

1)Short magnetic circuit,

2) little magnetic flux leakage

3) high magnetic intensity

4) low energy consumption

5) fine beneficiating results

6)simple structure and easy to maintain

7)Easy operation.

5.Main Technical Parameters
