aluminum plate / sheet metal embossing machine
USD $15,000 - $25,000
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Metal Sheet Stucco Embossing Machine For Sale/ Stainless Steel Color Diamond Embossing Machine
-
Metal Bemo Roof Panel Curving Machine / Aluminum Bemo Curving Machine
-
High Quality Metal Steel PPGI GI Corrugted Sheet For Sale
-
Joint-Hidden Galvanized Automatic Standing Seam Roofing Sheet Roll Forming Machine
-
Aluminium metal plate pattern embossing machine
-
zinc metal roof tile
Product Details
| Condition | New | Type | Other, embossing machine | |
| Tile Type | Other, aluminum/ gi /ppgi | Use | Other, metal sheet /panel embossing | |
| Production Capacity | 10-15m/min | Place of Origin | Zhejiang, China | |
| Brand Name | bluesteel | Model Number | bl embossing machine | |
| Power(W) | 3kw | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 1.7x1.5x1.5m | Weight | 2 Tons | |
| Certification | CE/ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
specification

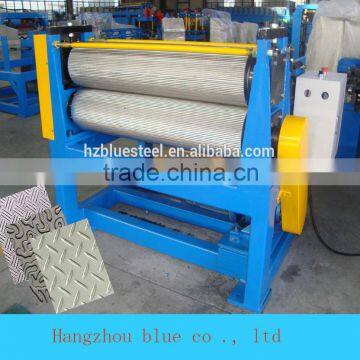

metal plate embossing machine
1.high speed
2.auto control and easy operation
3.CE/ISO9001
a. Technical parameters
| Material spec | aluminum plate;colored steel sheet; galvanized steel sheet ;GI;PPGI |
| Thickness | 0.2 ~ 0.8mm |
| Coil width | 600 ~ 1250 mm |
| Working speed | 10 - 15m/min |
| Run direction | both direction |
| Power requirement | main motor power: 10 kW ( depend on final design ) |
| Machine dimension | 1.7x1.5x1.5m |
| Total weight | 2T |
| Roller materia | high grade 9Cr2Mo, with 60-63 HRC quenched treatmnet |
| Roller diameter | 280mm ( depend on final design ) |
| The width of machine | 1300 mm ( depend on final design ) |
| Voltage | 380V 3 phase 60Hz or at buyer's requirement |
FAQ
1.what is your delivery time?
The delivery time varies according to the machine . If the profile and material are common ,time will be shorter .Otherwise we will spend more time on design and trial operation. Usually it is about 50 days after receiving the deposit.
2.Could you customize the machine for me?
Yes, almost every machine we produce is as per customize's needs. We are experienced in that.
3.What is your advantage?
We have about 12 years experience in metal roll roming machine line. Experienced engineers and workers will be helpful for quality control.
4.Do you use the newest technology?
We adopt the newest technology both form China and foreign conturies to assure our products are of good quality and up to date.
5. What about your service?
We provide one year warranty.In this period,we will supply the machine parts for free. After the warranty,we will supply machine parts at cost price all life long and we are always here to answear your questions and provide technology support.
