Home > Products > Rainpipe / Gutter roll forming machine > Metal Channel Gutter Roll Forming Machine
Metal Channel Gutter Roll Forming Machine
US$ 20,000 - 40,000
/ Set
1 Set(Min. Order)
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
K-style K style Gutter Roll Forming Machine
-
Copper Gutter Aluminum Gutter Stainless Gutter Glazed Gutter Flashing Roll Forming Machine Rollformer
-
Half Round Gutter Roll Forming Machine/ S Gutter Forming Machine
-
Stainless Steel Copper Color Steel GI Metal Flashing With Gutter Roll Forming Machine
-
Drain Downspout Elbow Roll Forming Machine For Sale/ Rainspout Making Machine/ Gutter Machine
-
European CE Cheap auto Drain Downspout Elbow Roll Forming Machine For Sale/ Rainspout Making Machine/ Down spout Making Machine
Product Details
| Condition | New | Type | Other, furring channel | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 10-25m/min | Place of Origin | Zhejiang, China | |
| Brand Name | bluesteel | Model Number | bl | |
| Power(W) | 7~8.5kw | Voltage | 380V 3phase 50Hz / customized | |
| Dimension(L*W*H) | 8~15*1.5*1.5M | Weight | 6000~8000KGS | |
| Certification | ce | Warranty | 14months after bill of lading date | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
| technical specification | ||
| main systems | ||
| 1 | decoiler | feeding material by the strength yielded by roller part |
| 2 | adjustable device | leveling the material |
| 3 | roll forming system | form the profile you want |
| 4 | cutter | cut the sheet at fixed length |
| 5 | PLC | set length ,pieces and control the producing |
| 6 | run out table | support the finished sheet |
| 7 | hydraulic station and motor | supply the power |
| components for choice | ||
| 1 | hydraulic decoiler | |
| 2 | safety cover | for safety |
| 3 | auto run out table | support and move the finished product |
| main parameters | ||
| 1 | feeding material | color steel coil, aluminum,GI,PPGI |
| 2 | material thickness | 0.2~1mm |
| 3 | material yield stress | 230~550mpa |
| 4 | feeding width | as per need |
| 5 | forming speed | 8~25m/min |
| 6 | cutter material | cr12 |
| 7 | roller material | 45# steel with chrome treatment |
| 8 | Cr plating thickness | 0.05mm |
| 9 | roller station | 11 pieces(according to different profiles) |
| 10 | controller | PLC , touch screen and button |
| 11 | hydraulic station motor power | 3kw |
| 12 | hydraulic presure | 12mpa |
| 13 | main motor power | 7~8.5kw |
| 14 | voltage | 380v 3ph 50hz / as your needs |
| 15 | total weight | 6~8t |
| 10 | dimension | 10 x 1.5 x 1.5m |

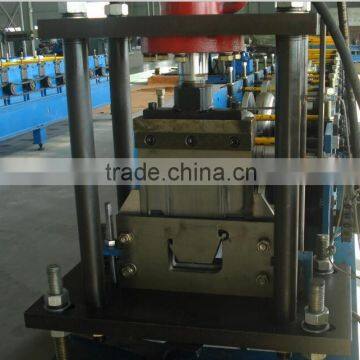

b. machine overall
Roller ,used to form the corrugated sheet and step tile sheet.
Packaging & Shipping
FAQ
1.what is your delivery time?
The delivery time varies according to the machine . If the profile and material are common ,time will be shorter .Otherwise we will spend more time on design and trial operation. Usually it is about 50 days after receiving the deposit.
2.Could you customize the machine for me?
Yes, almost every machine we produce is as per customize's needs. We are experienced in that.
3.What is your advantage?
We have about 12 years experience in metal roll roming machine line. Experienced engineers and workers will be helpful for quality control.
4.Do you use the newest technology?
We adopt the newest technology both form China and foreign conturies to assure our products are of good quality and up to date.
5. What about your service?
We provide one year warranty.In this period,we will supply the machine parts for free. After the warranty,we will supply machine parts at cost price all life long and we are always here to answear your questions and provide technology support.
