Home > Products > Guardrail roll forming machine > PLC Control And Hydraulic Station Metal Steel Highway Guardrail Making Machine, Highway Guardrail Sheet Roll Forming Machine
PLC Control And Hydraulic Station Metal Steel Highway Guardrail Making Machine, Highway Guardrail Sheet Roll Forming Machine
- 20 Set / Sets per Month
- ningbo/shanghai for highway guardrail roll forming machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Highspeed Highway Guardrail Making Roll Forming Machine Line, Guardrail Panel Making Machine
-
Contunsous Cutting Highway Guardrail Panel Roll Forming Machine With Gear Box Transmission
-
Three Wave Guardrail Roll Forming Machine PLC With Automatic Continuous Cutting
-
High Speed Good Quality Highway Guardrail Roll Forming Machine With Gear Box Transmission
-
Chinese Factory Good Quality 2 Wave And 3 Wave Highway Guardrail Machine
-
European Standard Highway Guardrail Sheet Roll Forming Machine W Beam Production Line With Continuous Cutting
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 10-25m/min | Place of Origin | Zhejiang, China | |
| Brand Name | bluesteel | Model Number | bl | |
| Power(W) | 8.5kw | Voltage | 380V 3phase 50Hz. | |
| Dimension(L*W*H) | 15*1.5*1.5M | Weight | 8000KGS | |
| Certification | ce | Warranty | 14months for highway guardrail roll forming machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

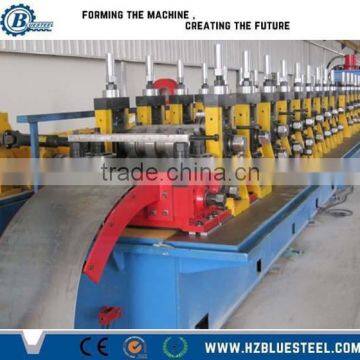

PLC Control and Hydraulic Station Metal Highway Guardrail Forming Machine, Highway Guardrail Roll Forming Machine
Specifications
Highway Guardrail Roll Forming Machine
1.machine workflow
2.main parameter table.
Material thickness | 3~5mm |
Material yield stress | 230~550 Mpa |
Max. forming speed | 8~25m/min |
Roller material | 45# steel with chrome treatment |
Roller driven type | Gear Box transmission |
Controller & operation | PLC & touch screen and button |
Hydraulic system pressure | 32 Mpa |
Hydraulic station motor power | 22 Kw |
Main motor power | 55Kw |
Total power | 90Kw |
Total weight | About 25000 Kgs |
3.standard component:
4.optional component:
5.Product:
We can also customize the products according to customer ' s requirements
6.Loading photos:
7.Application:
8.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.
