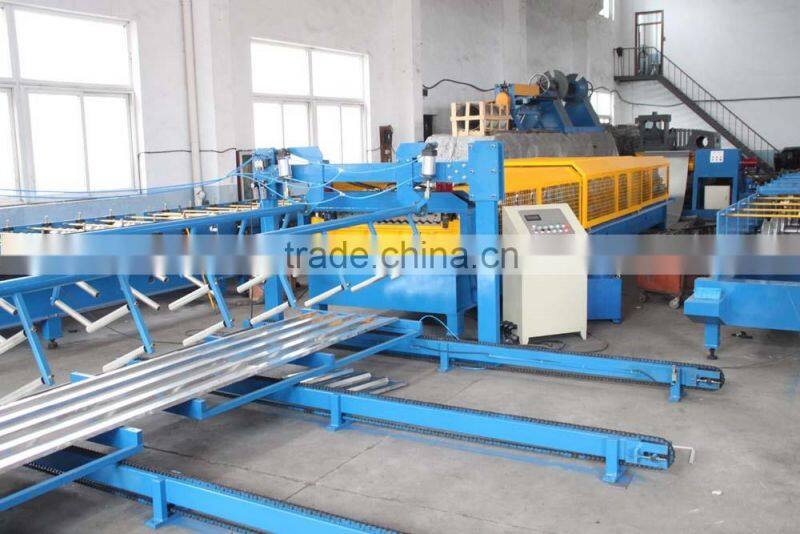

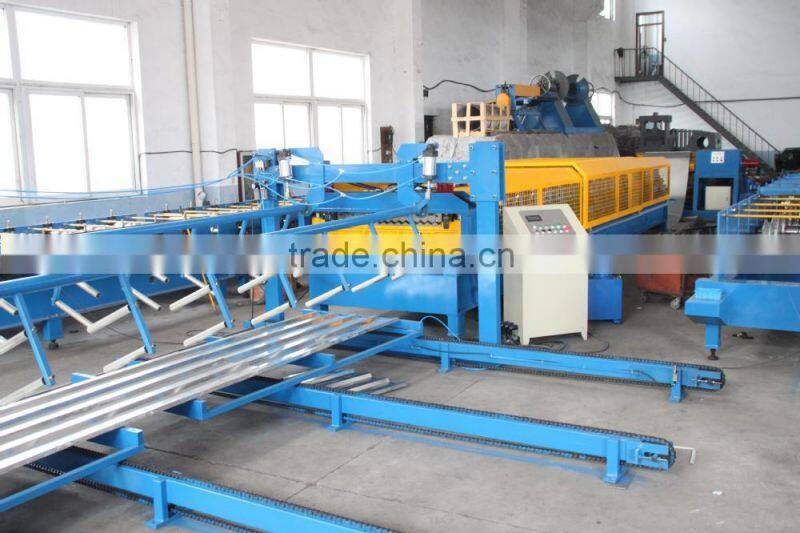

Color Steel Glalvanized Metal Double Deck Trapezoidal Tile Sheet Roof Wall Panel Machine, Double Layer Roof Roll Forming Machine
- ningbo/shanghai for double layer roll forming machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality Roof Sheet Moulding Machine, Corrugated Sheet Metal Roof Making Machine
-
Hot Sale Double Layer Glazed Roof Sheet Panel Roll Forming Machine For Africa
-
Two Profile Roof Panel Sheet Roll Forming Machine, Double Layer Metal Roof Tile Making Machine
-
Double Layer Corrugated And IBR Metal Roofing Sheet Machine, Iron Sheet Roll Forming Making Machine For Sale
-
Engineers Available To Go Abroad Corrugated Roof Use Corrugated Iron Roof Sheet Roll Forming Making Machine
-
Double Layer Glazed Tile Roofing Sheet Double Layer Roll Forming Machine, IBR Sheet Metal Making Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 10-25m/min | Place of Origin | Zhejiang, China | |
| Brand Name | bluesteel | Model Number | bl | |
| Power(W) | 8.5kw | Voltage | 380V 3phase 50Hz. | |
| Dimension(L*W*H) | 15*1.5*1.5M | Weight | 8000KGS | |
| Certification | ce | Warranty | 14months for double layer roll forming machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Color Steel Glalvanized Metal Trapezoidal Tile Sheet Roof Wall Panel Machine, Double Layer Roll Forming Machine
Specifications
double layer roof roll forming machine for wall and roof use
1.machine workflow
2.main parameter table.
Material thickness | 0.3~0.7mm |
Material yield stress | 230~550 Mpa |
Max. forming speed | 8~25m/min |
Roller material | 45# steel with chrome treatment |
Roller driven type | Chain transmission |
Controller & operation | PLC & touch screen and button |
Hydraulic system pressure | 12 Mpa |
Hydraulic station motor power | 3 Kw |
Main motor power | 4~7.5Kw |
Total power | 7~10.5Kw |
Total weight | About 6000~8000 Kgs |
3.standard component:
4.Product:
We can also customize the products according to customer ' s requirements
6.Loading photos:
7.Application:
8.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.
