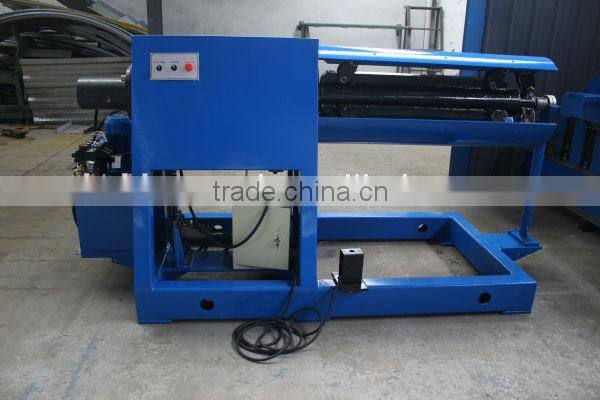

Hydraulic Steel Coil Decoiler

FOB Price

US$ 15,000 - 40,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Steel	Use	Roof
Production Capacity	10-25m/min	Place of Origin	Zhejiang, China
Brand Name	bluesteel	Model Number	25-205-820
Power(W)	8.5kw	Voltage	380V 3phase 50Hz.
Dimension(LWH)	151.51.5M	Weight	8000KGS
Certification	CE ISO	Warranty	14months from bill of lading date
After-sales Service Provided	Engineers available to service machinery overseas

IBR wall and roof roll forming machine
tower structure for main body.
CNC rolling the rollers.
plc control

steel roll forming machine

workflow :

machine components:

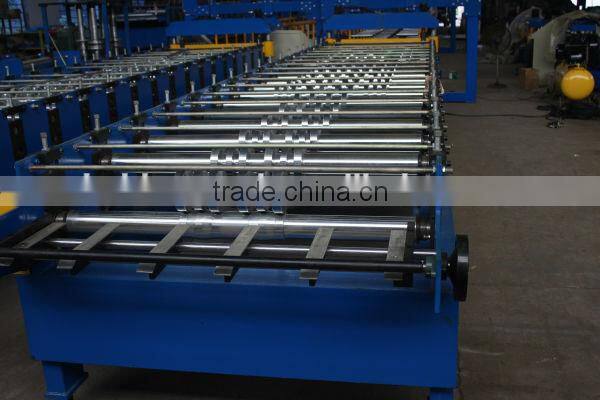

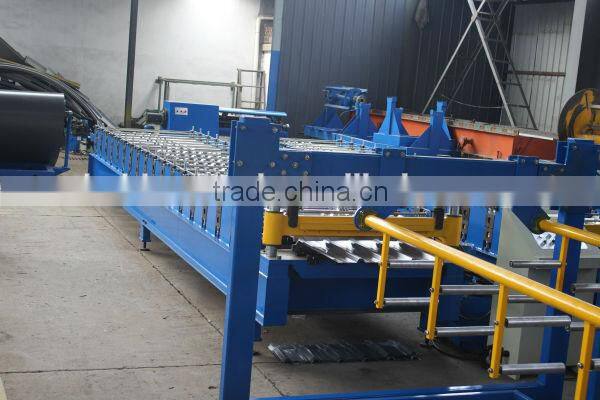

machine whole view painted and galvanized steel coil

5T Manual decoiler machine roll forming

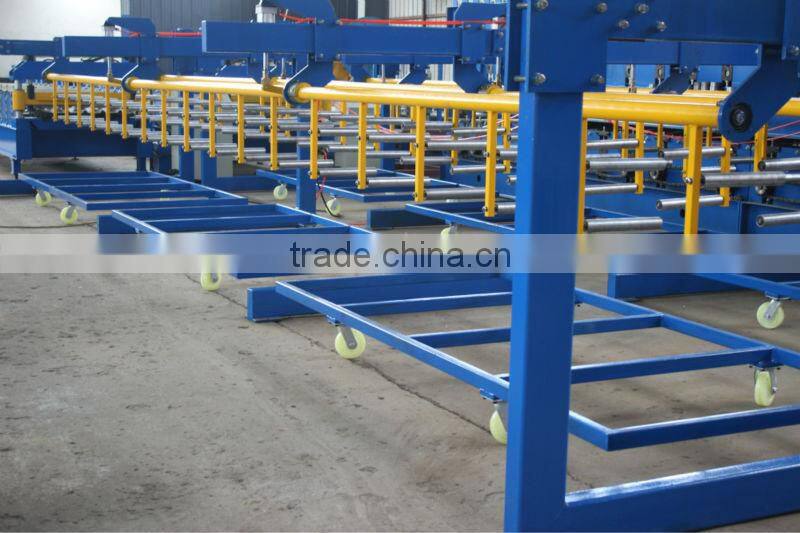

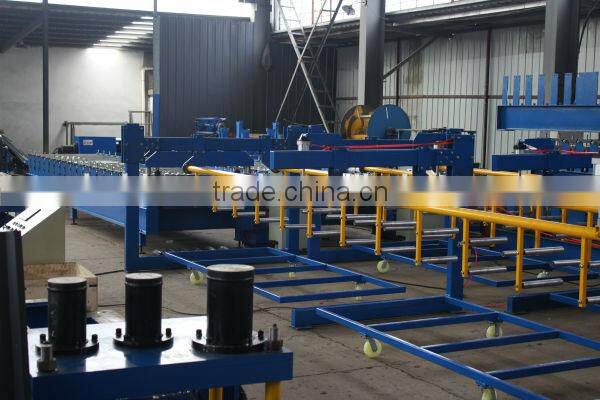

machine whole view with stacker automatic stacker with movable trolly

produce process view:

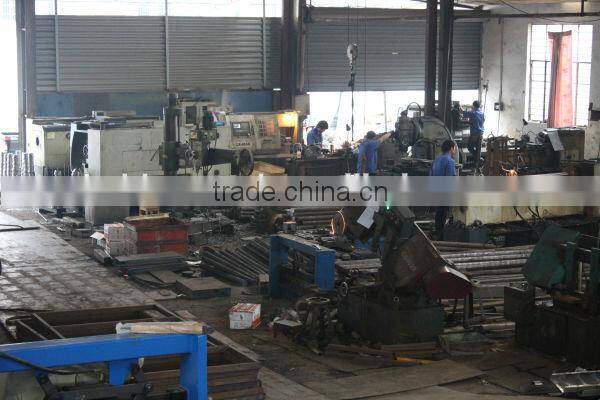

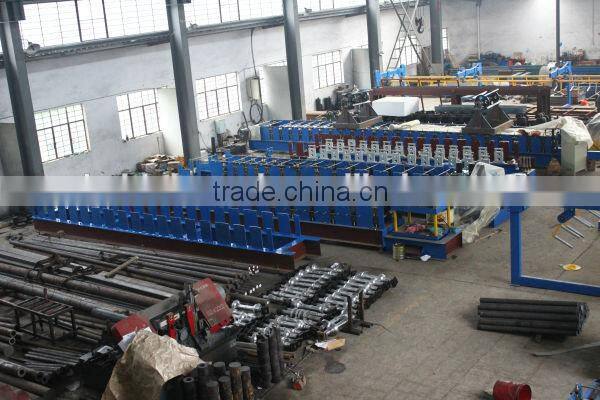

one corner at the asseble workshop one corner at the machining workshop

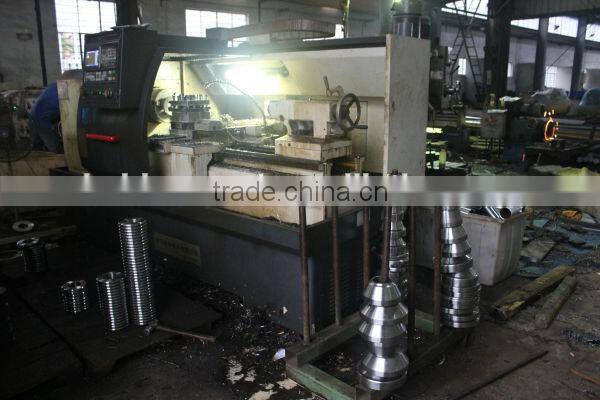

machining workshop CNC machining the rollers

saw cutting shaft machining

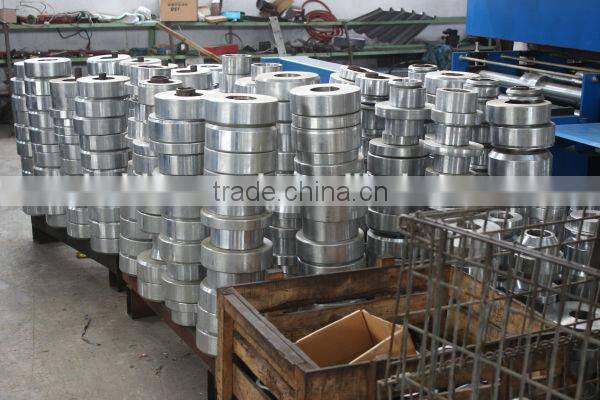

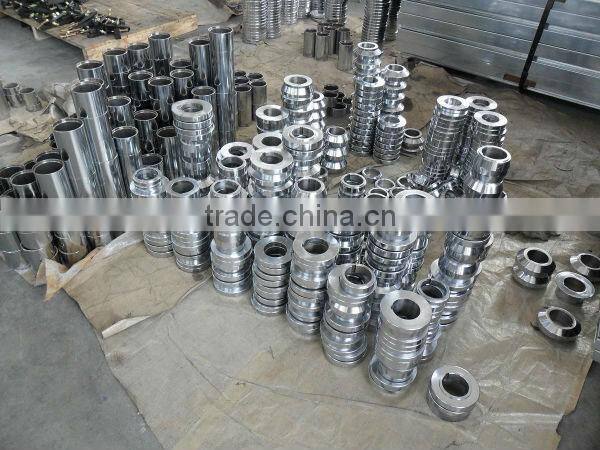

finished rollers with Chrome coated with thickness 0.06mm finished rollers with Chrome coated with thickness 0.06mm

main paramters:

Material thickness	0.3~0.7mm
Material yield stress	230~550 Mpa
Max. forming speed	8~25m/min
Roller material	45# steel with chrome treatment
Roller driven type	Chain transmission
Controller & operation	PLC & touch screen and button
Hydraulic station motor power	3 Kw
Main motor power	4~5.5 Kw
Total power	7~8.5 Kw
Total weight	About 8000 Kgs for main body.
