Home > Products > Corrugated Roof forming machine > Hot Sale And Colored Steel Roof Machine, Automatic Corrugated Roof Roll Forming Machine For Sale

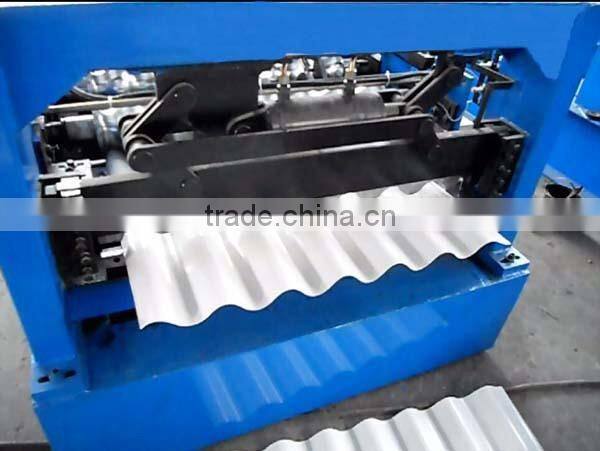

Hot Sale And Colored Steel Roof Machine, Automatic Corrugated Roof Roll Forming Machine For Sale
- ningbo/shanghai for roof roll forming machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Aluminium Roofing Sheet Corrugated Iron Sheet Making Machine, Cold Roof Galvanizing Line / Metal Roof Panel Roll Forming Machine
-
Steel Corrugated Stainless Roofing Sheet Roll Forming Machine / Metal Roofing Sheet Forming Machine
-
Aluminium Corrugated Roof Sheet Roll Forming Machine / Long Span Roofing Sheet Forming Making Machine
-
Roof Use And Tile Forming Machine Type Metal Sheet Corrugated Roof Roll Forming Machine
-
Metal Roof Panel Crimping Machine / Glazed Tile Sheet Curving Machinery
-
High-speed Metal Steel Profile Corrugated Roof Sheet Crimping Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 10-25m/min | Place of Origin | Zhejiang, China | |
| Brand Name | bluesteel | Model Number | bl | |
| Power(W) | 8.5kw | Voltage | 380V 3phase 50Hz. | |
| Dimension(L*W*H) | 15*1.5*1.5M | Weight | 8000KGS | |
| Certification | ce | Warranty | 14months for roof roll forming machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot Sale And Colored Steel Automatic Corrugated Roof Roll Forming Machine For Sale
Specifications
construction roof sheet making machine
1.machine workflow
2.main parameter table.
Material thickness | 0.3~0.7mm |
Material yield stress | 230~550 Mpa |
Max. forming speed | 8~25m/min |
Roller material | 45# steel with chrome treatment |
Roller driven type | Chain transmission |
Controller & operation | PLC & touch screen and button |
Hydraulic system pressure | 12 Mpa |
Hydraulic station motor power | 3 Kw |
Main motor power | 4~5.5Kw |
Total power | 7~8.5Kw |
Total weight | About 6000~8000 Kgs |
3.standard component:
4.Production:
We can also customize the products according to customer ' s requirements
5.PLC operational panel:
6.Loading photos:
7.Application:
8.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.
