988 Type Cold Steel Corrugated Roof Tile Making Machinery, Sheet Metal Roofing Roll Forming Machine
- 20 Set / Sets per Month
- ningbo/shanghai for roof tile roll forming machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Metal Aluminium Roofing Roll Forming Machine For Sale, Cold Roof Roll Forming Machine For Wall And Roof
-
PLC Controlled Full Automatic GI PPGI Corrugated Roof Sheet Roll Forming Machine, Roof Rolling Forming Machine
-
Aluminum Corrugated Roofing Sheets Roll Forming Machine, Sheet Metal Roofing Machine Prices
-
Hot Sale And Colored Steel Roof Machine, Automatic Corrugated Roof Roll Forming Machine For Sale
-
Aluminium Roofing Sheet Corrugated Iron Sheet Making Machine, Cold Roof Galvanizing Line / Metal Roof Panel Roll Forming Machine
-
Steel Corrugated Stainless Roofing Sheet Roll Forming Machine / Metal Roofing Sheet Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 10-25m/min | Place of Origin | Zhejiang, China | |
| Brand Name | bluesteel | Model Number | bl | |
| Power(W) | 8.5kw | Voltage | 380V 3phase 50Hz. | |
| Dimension(L*W*H) | 15*1.5*1.5M | Weight | 8000KGS | |
| Certification | ce | Warranty | 14months for roof tile roll forming machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

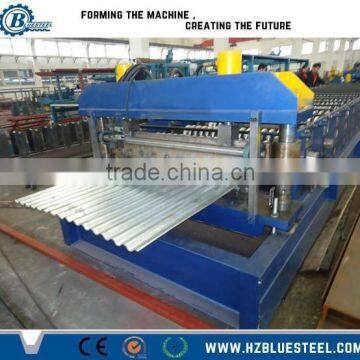

988 Type Cold Steel Corrugated Roof Tile Making Machinery, Sheet Metal Roll Forming Making Machine
1.machine workflow
2.main parameter table.
Material thickness | 0.3~0.7mm |
Material yield stress | 230~550 Mpa |
Max. forming speed | 8~25m/min |
Roller material | 45# steel with chrome treatment |
Roller driven type | Chain transmission |
Controller & operation | PLC & touch screen and button |
Hydraulic system pressure | 12 Mpa |
Hydraulic station motor power | 3 Kw |
Main motor power | 4~5.5Kw |
Total power | 7~8.5Kw |
Total weight | About 6000~8000 Kgs |
3.standard component:
4.Production:
We can also customize the products according to customer ' s requirements
5.PLC operational panel:
6.Loading photos:
7.Application:
8.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.
