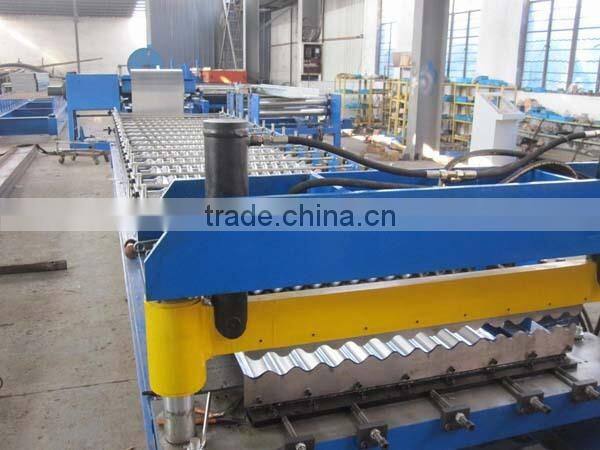

Corrugated Metal Roof Sheet Machine, Wall And Roof Tile Roll Forming Machine
- ningbo/shanghai for corrugated roof sheet machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hydraulic Automatic Wall And Roof Roll Forming Machine, Corrugated Roofing Sheet Making Machine
-
Aluminium Roofing Sheet Corrugating Roll Forming Machine, Metal Roof Cold Galvanizing Line
-
Corrugated Roof Tile Sheet Making Machine, Metal Glazed Roof Tile Panel Rolling Forming Machine
-
Barrel Corrugated Roofing Sheets Forming Machine Corrugated Roof Making Machine
-
Automatic Corrugated Metal Steel Roofing Sheet / Wall Sheet / Panel Sheet Rolling Making Machine For Sale
-
Aluminium Corrugated Roofing Sheet Making Machine / Construction Roof Machinery For Sale
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 10-25m/min | Place of Origin | Zhejiang, China | |
| Brand Name | bluesteel | Model Number | bl | |
| Power(W) | 8.5kw | Voltage | 380V 3phase 50Hz. | |
| Dimension(L*W*H) | 15*1.5*1.5M | Weight | 8000KGS | |
| Certification | ce | Warranty | 14months for corrugated roof sheet machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Corrugated Metal Roof Sheet Machine, Wall And Roof Tile Roll Forming Machine
Specifications
1.roll forming machine
2.wall and roof roll forming machine
rrugated metal sheet machine
tal roof sheet machine
rrugated roll forming machine
1.roll forming machine workflow
2.roll forming machine main parameter table.
Material thickness | 0.3~0.7mm |
Material yield stress | 230~550 Mpa |
Max. forming speed | 8~25m/min |
Roller material | 45# steel with chrome treatment |
Roller driven type | Chain transmission |
Controller & operation | PLC & touch screen and button |
Hydraulic system pressure | 12 Mpa |
Hydraulic station motor power | 3 Kw |
Main motor power | 4~5.5Kw |
Total power | 7~8.5Kw |
Total weight | About 6000~8000 Kgs |
3.roll forming machien standard component:
4.product:
We can also customize the products according to customer ' s requirements
6
6.roll forming machine Loading photos:
7.roll forming machine Application:
8.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.
