Home > Products > PLC splitter > Factory Supply OLT Planar Waveguide Optical Splitter SC APC Connector 1x2 Optic PLC Splitter
Factory Supply OLT Planar Waveguide Optical Splitter SC APC Connector 1x2 Optic PLC Splitter
- shenzhen
- T/T Credit Card
You May Like
-
China supplier ABS Box 1x2 Fiber Optical PLC Splitter no connector
-
EPON GPON 1for 8 Fiber Optical Splitter Cassette ABS BOX PLC Splitter
-
FTTH OLT System 1260-1650nm ABS Box Type 2x2 Way Fiber Optic PLC Splitter
-
4 port CATV FTTH Used Fiber optic splitter module 1x4 plc splitter
-
0.9mm 2.0mm 3.0mm 2*32 outdoor splitter opticals
-
2*32 PLC Splitter modules with wide operating wavelength
Product Details
| Place of Origin | Guangdong, China | Brand Name | XYT | |
| Model Number | XYT-A-1*2-2016 |
Product Description

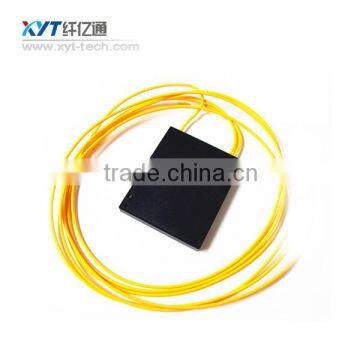

Planar Waveguide Optical Splitter SC APC Connector 1x2 Optic PLC Splitter
Steel tube type plc splitter Specification
1)low IL&PDL
2)uniformity&high reliability
3)1260~1620nm wavelength
4) Steel Tube PLC Splitter :1x2,1x4,1x8,1x16,1x32,1x64,2x2,2x4,2x8,2x32,2x64
Steel tube type plc splitter Features:
| Fiber Type | SMF-28e, G652, G655, G657 (or Customized) | |||||||
| Operating Wavelength | 1260~1650 | |||||||
| IL | dB | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.5 | ≤16.8 | ≤20.4 | ≤23.7 |
| UL | dB | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.3 | ≤1.8 | ≤2.1 |
| PDL | dB | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 |
| RL | dB | ≥55 | ||||||
| Operating Temperature | °C | -40~+85 | ||||||
| Storage Temperature | °C | -40~+85 | ||||||
| Steel tube size | mm | 40*4*4 50*7*4 60*12*4 | ||||||
Why you choose us?
Firstly,‘High quality is our culture”. All of our products will be specially and carefully tested before delivery to make sure you the our best product. Our product will give you an edge over your competitors.
Secondly, “With us, your buying process will be as easy as a piece of cake.” We are a very professional exporting company.Our staff are very familiar with all kinds of overseas trading terms and custom clearance as well as documents related.
Thirdly,“With us, your money is safe.” Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could opt for your favorite one.
Last but not the least, we have gained Alibaba Trade Insurance which is another safeguard for buyers.
Terms of Payment :
Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could choose your favorite one.
Delivery Time and Shippment:
3-5 workdays,customized products excepted.
Warranty:
All products have 3 years after-sale service During your first year’s usage,
free replacement or repair will be your right unless it is man-made problem.
