Auto water bottle rinsing filling cap sealing machine
- 200 Set / Sets per Month
- Guangzhou or Shenzhen port or other ports in China
- D/P D/A Credit Card
You May Like
-
Automatic mineral / pure water washing filling capping machine 10000b/h semi automatic bottling
-
New CE standard Semi automatic bottle rinsing machine/washing machine for new bottles
-
6 cavity automatic PET bottle blowing machine
-
Preform blowing machine for PET bottle
-
2016 global sales models PE bottle Injection blowing machine/PC bottle making machine
-
18.9L Plastic Bottle Blow Molding machine / 5 Gallon Blowing Mould Machinery
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | Fillgreen | Model Number | FG-XPJ | |
| Voltage | 380V/50Hz | Power(W) | 1.75kw | |
| Weight | 800kg | Dimension(L*W*H) | 3100*650*1550mm | |
| Processing Types | Washing Glass Bottles | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Descriptions:
(1) This filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
2. Technical Parameters:
TYPE | FG-XPJ80 | FG-XPJ120 | FG-XPJ240 | FG-XPJ300 | FG-XPJ450 | QGF-600 |
Filling heads | 1 | 1 | 2 | 2 | 3 | 4 |
Barrel Size (mm) | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 |
Capacity (b/h) | 80-100 | 120 | 240 | 300 | 450 | 600 |
Gas Pressure | 0.4-0.6Mpa | |||||
Gas Consumption | 0.6 | 0.6 | 0.8 | 0.9 | 1.8 | 2.5 |
Power (KW) | 1.38 | 1.75 | 2.1 | 3.0 | 3.8 | 6 |
Voltage | 380V/50HZ | |||||
Outline Size (mm) | 3100×650×1550 | 3190×650×1550 | 3100×900×1650 | 3100×900×1650 | 3550×1100×1800 | 3800×1100×1800 |
Weight (kg) | 680 | 800 | 800 | 1000 | 1600 | 2300 |
| Barrel Capability | 18.9 L | |||||

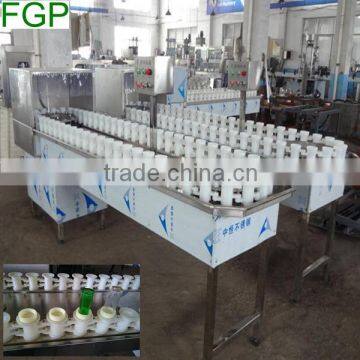

3. Samples machine pictures (only for your reference):
