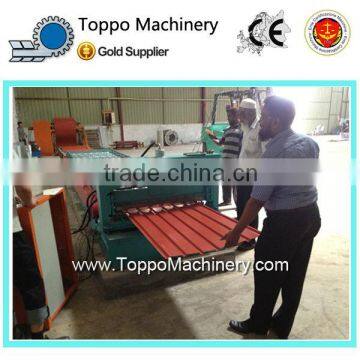

Cold Metal Sheet Roll Forming Machine

a. General

Model Number

YX14-123-738 Cold Metal Sheet Roll Forming Machine

Suitable Material

Q235 or equivalent, 0.25-0.8 mm thickness

Material Width

914 mm

Wave Height

14 mm

Covering Width

738 mm

Dimension

about 7.1*1.3*1.25 m (L*W*H)

Working Space

about 17.1*2.8 m (L*W)

Length Of Sheet

You can set the length according to your need, such as 1.5m, 3.2m or 6.7m. It is controlled by PLC, and can ensure the accuracy of ±1mm.Cutting

Automatically stop and cutting when it comes to the set length

Forming Speed

0-15 m/min

b. Components Details

Roller Material

High grade 45# steel. Treating process: finish turning-accurate grinding- polishing- hard chrome plating, 0.05 mm

Main Frame

350 H steel. More stable, no shaking

Middle Plate

16 mm. we use bigger plates, to ensure stability

Shaft Material

Φ70 mm, high grade 45# steel.

Forming Steps

14

Cutting Blade Material

Cr12, hardness HRC60-62.

Electric Components

Suitable power

380V, 50 Hz, 3 phase or according to your need.

Screen

7 inch touch screen, easy to operate

PLC

Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance.

Frequency converter

Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

Length measurement device:

Omron, made in Japan. It features with high accuracy and stability
