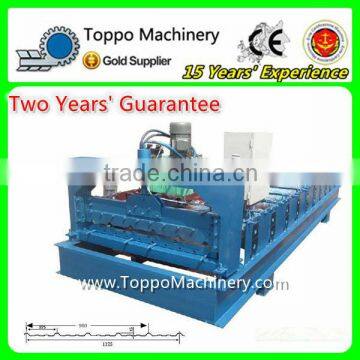

Zinc Metal Wall Panel Span Roll Forming Machine
- Tianjin Port
- T/T Credit Card
You May Like
-
IBR Zinc Metal Wall Panel Roll Forming Rail Machine
-
Automatic Wall Sheet Metal Shaping Machine
-
Galvanized Metal Wall Panel Roll Former
-
Chrome Plating Steel Wall Sheet Production Line
-
High Quality Cold Rolled Trapezoidal Colored Steel Sheet Forming Machine
-
Continous Colored Steel Wall Panel Roll Forming Machine
Product Details
| Condition | New | Type | Other, Roof & Wall Panel Forming Machine | |
| Tile Type | Colored Steel | Use | Wall | |
| Production Capacity | 0-15 m/min | Place of Origin | Hebei, China | |
| Brand Name | Toppo Machinery | Model Number | YX 15-225-900-1125 | |
| Power(W) | 3kw | Voltage | 380V, 50HZ, 3 phase | |
| Dimension(L*W*H) | about 5.9*1.6*1.25m (L*W*H) | Certification | CE | |
| Warranty | 2 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.Company Profile
Toppo Machinery Co., Ltd. has specialized in manufacturing Zinc Metal Wall Panel Span Roll Forming Machine for 15 years. We provide kinds of high quality products, such as roof & wall panel machine, roof tile machine, purline forming machine, floor decking machine and so on. All these equipments are certificated by CE. Besides, our technical engineers have kept improving both the mechanical capacity and apparance of our machines.
Golden Supplier on Alibaba
Kinds of Products with Good Quality
Engineers Keep Improving the Quality
what makes us better than others?
1. Professional | 15 years' rich experience! a.Specialized in Zinc Metal Wall Panel Span Roll Forming Machine since 1998; b.Keeping improving the quality. |
2. Low price | Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
3. PLC | Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order. |
4. OEM / ODM | Customers’design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality. |
5. TWO-Years warranty, whole life service | Keep troubles far away from you! Within the TWO-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems . |
2.Brief Introduction
The wall panels manufatured by our Zinc Metal Wall Panel Span Roll Forming Machine are beautiful and durable. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
We can also make other profiles as you required.
3.Working Flow for Zinc Metal Wall Panel Span Roll Forming Machine
Sheet decoiling-Sheet guiding-Sheet roll forming-Sheet length measuring-Sheet cutting-Sheet surpporting
4.Technical Details
a. General
| |
Model Number | YX15-225-900-1125 Zinc Metal Wall Panel Span Roll Forming Machine |
Suitable Material | Q235 or equivalent |
Material Thickness | 0.3-0.8mm |
Material Width | 1250mm |
Coverd Width | 1125mm |
Wave Height | 15mm |
Dimension | about 5.9*1.6*1.25m(L*W*H) |
| Working Space | about 15.9*3.1m(L*W) |
Sheet Length | Any length as you want, It is controlled by PLC which can ensure the accuracy within ±1mm. |
Cutting | Automatically pause and cut when it comes to the set length. |
b. Components Detail
| |
Roller | High grade 45# steel. Hard chrome plating, 0.05mm. |
Main Frame | 400# steel. More stable and no shaking. |
Middle Plate | 16mm. We use thicker plates to ensure stability of our products. |
Forming Steps | 11 |
Shaft | Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |
Cutting Blade | Cr12, hardness HRC60-62. Treating process: heat treatment- pane abrasion-wire electrode cutting. |
c. Electric Components
| |
Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
Screen | 5.7 inch touch screen, easy to operate |
PLC | Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
Frequency Converter | Delta VFD-M. It has the advantge of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length Measurement | Omron, made in Japan. It features with high accuracy and stability |
5. Loading into container for Zinc Metal Wall Panel Span Roll Forming Machine
a. Need one 20ft container.
b. Main body of machine fixed to container by 8mm diameter steel wire;
Rollers and shafts are covered with anti-rust oil.
Spare parts in carton box.
6. Sales Map
Since 1998, Toppo Machinery Co., Ltd have exported high quality Zinc Metal Wall Panel Span Roll Forming Machines to more than 20 countries, which includes: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA and so on.
7. Photos with overseas customers
a. TWO-Years product warranty.
b. Training and installation available
c. The technical support for the whole life
8.Contact Us
If you have any questions, do not hesitate to contact us. You will be answered in 12 hours.
If you have any questions for the Panel Sheet Roll Forming Machinesheet Roll Forming Machine, send your Inquiry Details in the Below, Click "Send" Now!
Or contact me diffrect by email or chat.
| Toppo Machinery Co., Ltd |
| |
BotouCity, Hebei Province, China | |
| 0086-15631793989 | |
| ToppoMachinery | |
| www.YouT/ToppoMachinery |
